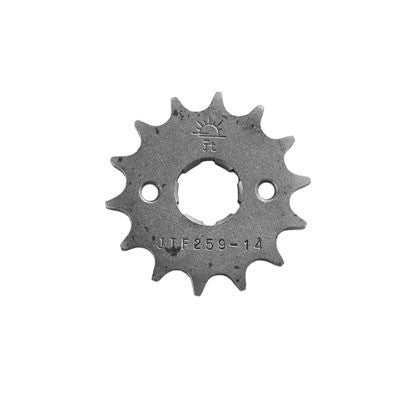

Chinese ATV Front Sprocket - 428-14T 200cc
This front sprocket is used on the Chinese 200cc engines. This sprocket has 14T and is compatible with the 428 chain ONLY.
Sprocket details:
- #428 chain used on ATVs usually with a 7 inch rear wheel or smaller
- 14T
- OD: 61mm [2.4"]
- ID: 20.2mm [.8"] valley-to-valley
- (2) 6mm threaded holes 34mm apart center-to-center
- Uses retainer with bolts [not included]
Be sure to measure your chain or current sprocket before ordering. 428 chain has 1/2" pitch and 0.335" roller diameter. Most Chinese sprockets have the chain size and teeth count stamped into the metal.
