Part number:
1241-FS428-200-13
1

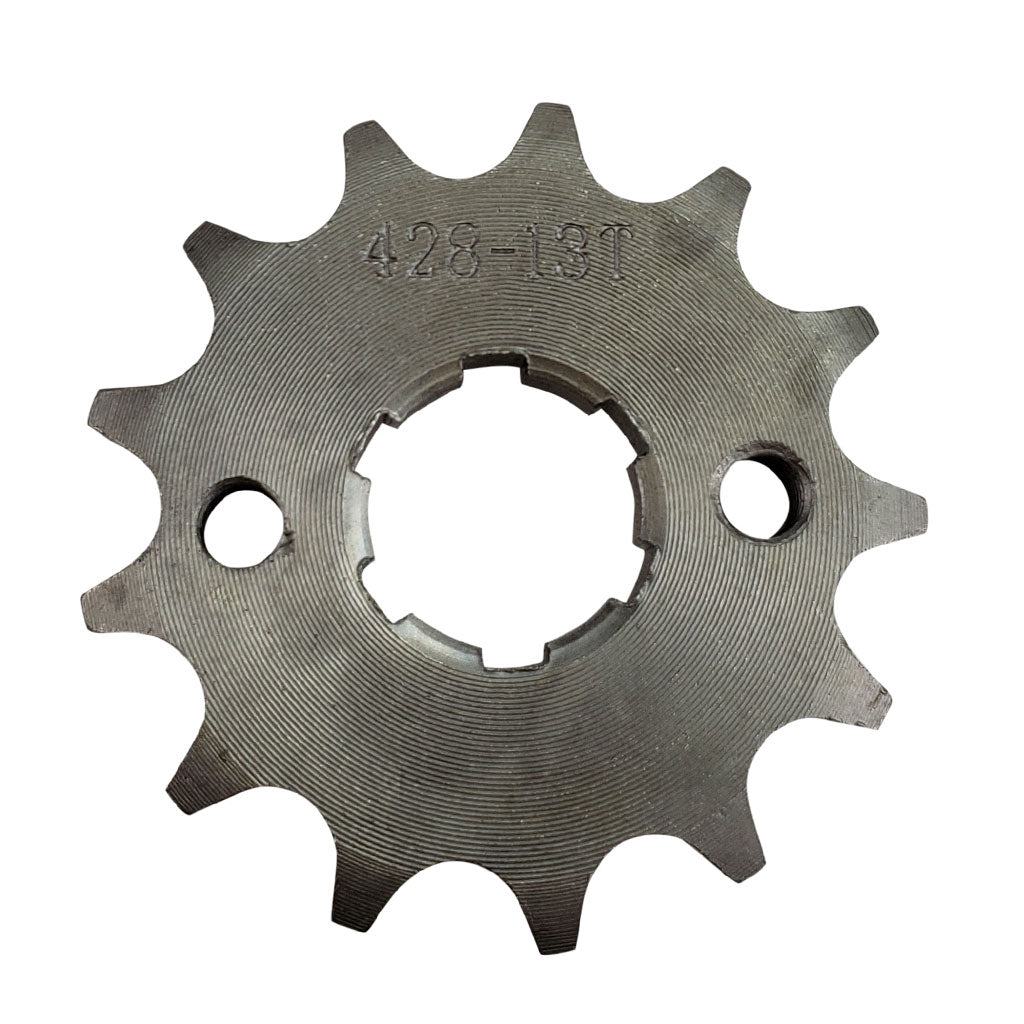

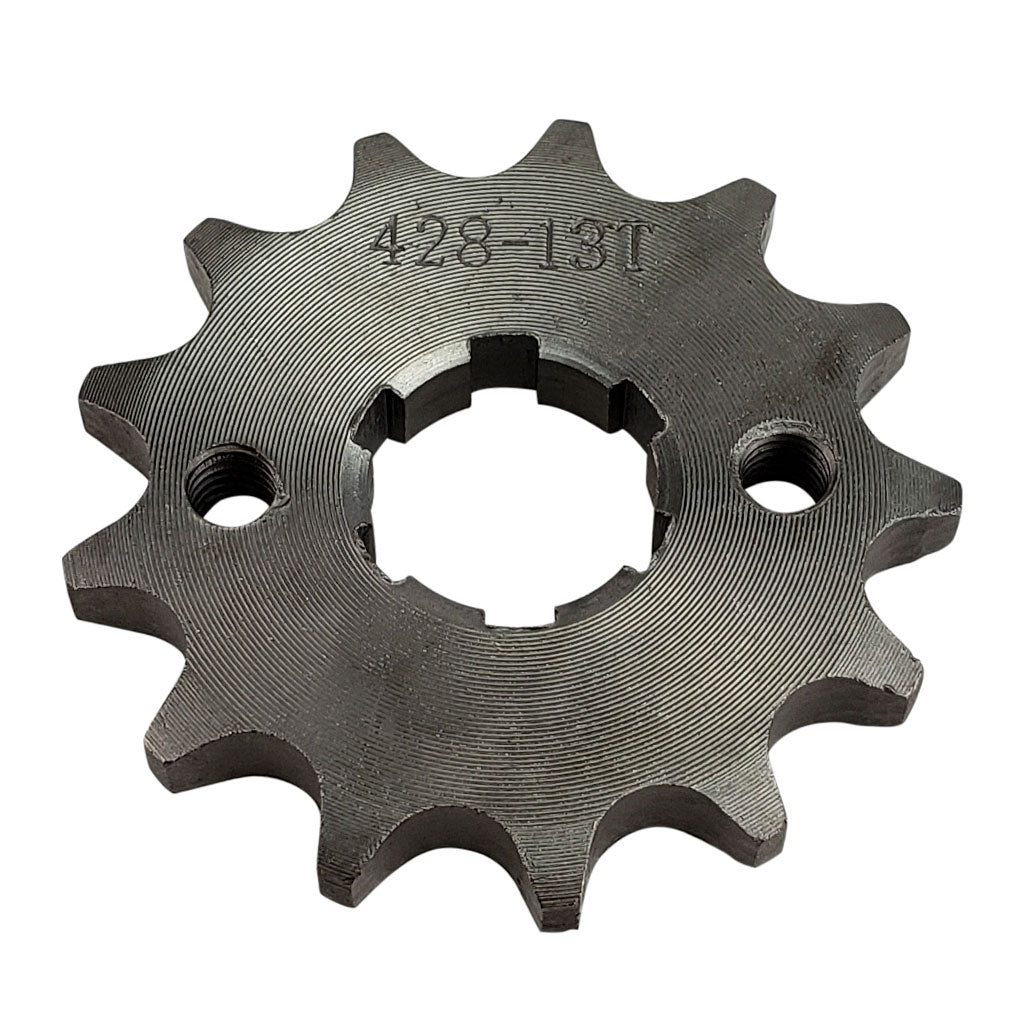

Chinese ATV Front Sprocket - 428-13T 200cc
This front sprocket is used on the Chinese 200cc engines. This sprocket has 13T and is compatible with the 428 chain ONLY.
Sprocket details:
- #428 chain used on ATVs usually with a 7 inch rear wheel or smaller
- 13T
- OD: 61mm [2.4"]
- ID: 20.1mm [.79"] valley to valley
- ID: 17.6mm [.69"] tooth to tooth
- Mounting holes distance: 34mm center to center
- Uses retainer with bolts [not included]
Be sure to measure your chain or current sprocket before ordering. 428 chain has 1/2" pitch and 0.335" roller diameter. Most Chinese sprockets have the chain size and teeth count stamped into the metal.
Here is the link to the retainer with bolts:
Chinese ATV Front Sprocket Retainer with Bolts
