Part number:
5000-FR425-83R

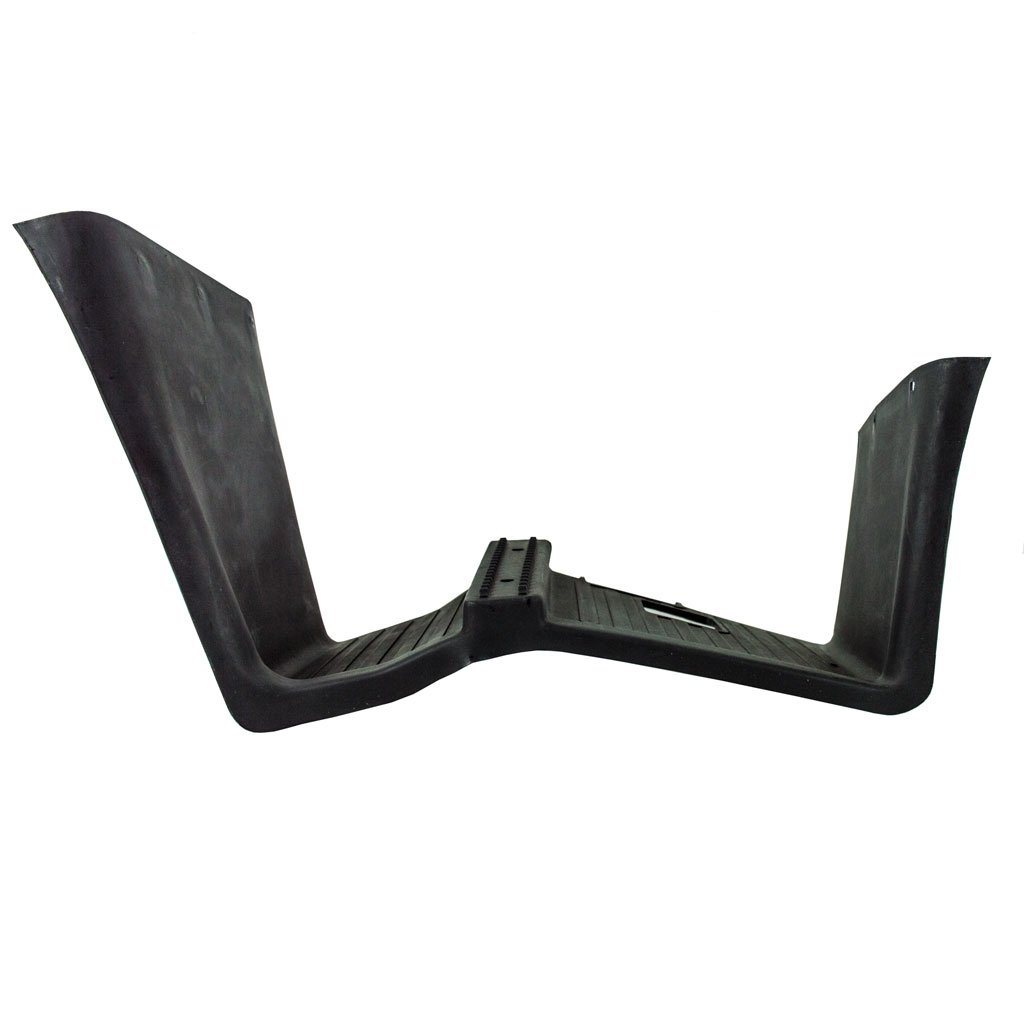

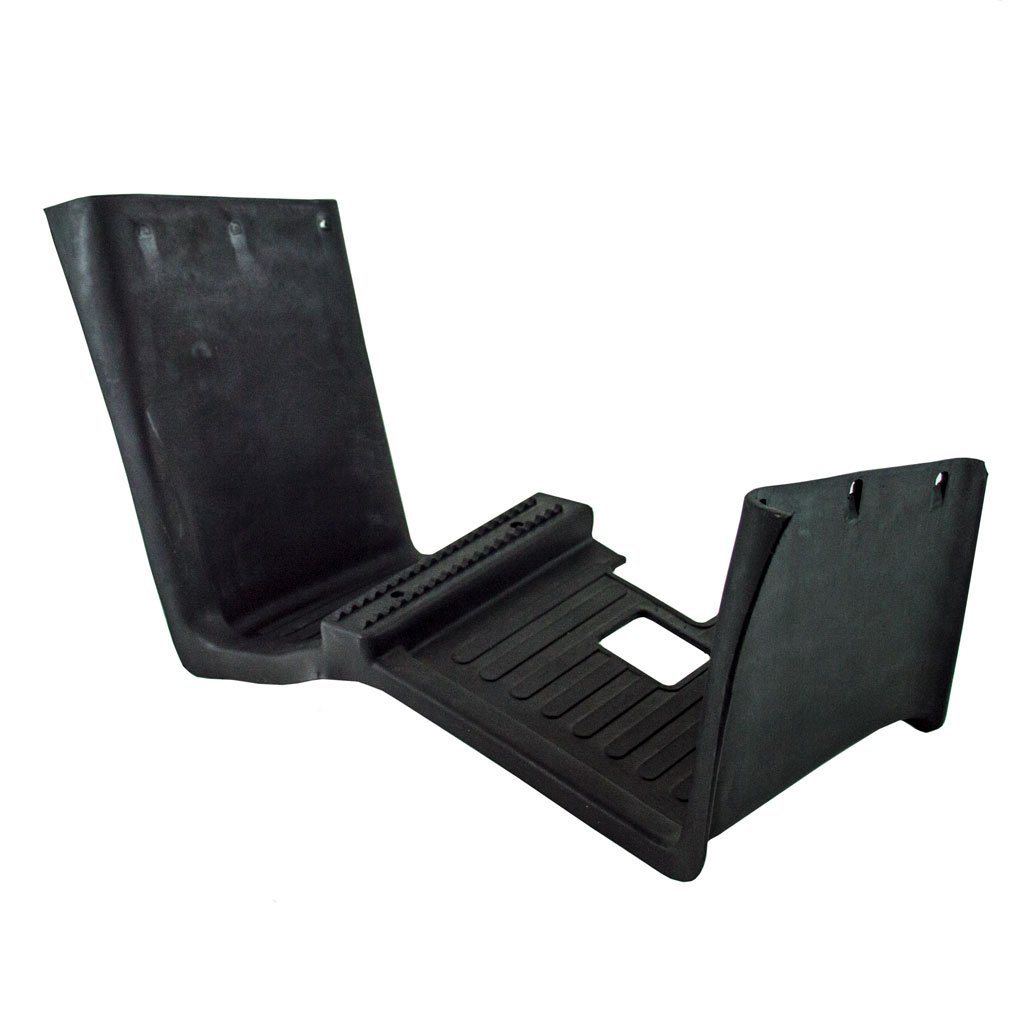

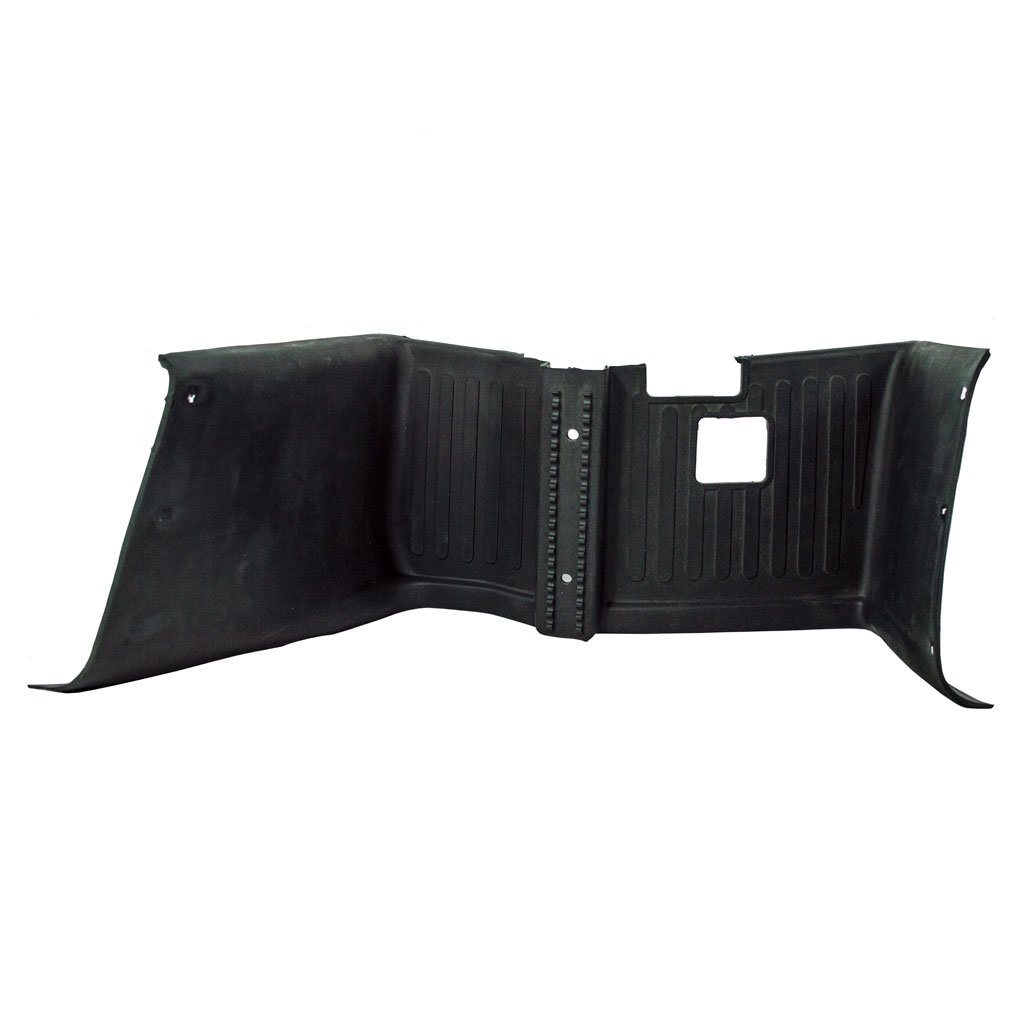

Chinese ATV Foot Rest Guard - Right - Kazuma Lacoste Panda 90cc 100cc 110cc
RIGHT side
Plastic foot rest or guard for the Kazuma Lacoste and Panda 90cc, 100cc, 110cc. Does not fit Dingo 150cc or 250cc ATVs.
Foot rest details:
- Overall length: Approx. 18" at longest point
- Mounting hole measurement on front: 2 5/8" center to center [3 holes total]
- Mounting hole measurement on back: 2 1/4" center to center [3 holes total]
- Overall height of front: Approx. 7"
- Overall height of back: Approx. 10 1/4"
- 2 bottom mounting holes
- Bottom mounting hole distance: Approx. 3 1/2"
- Overall width: Approx. 7"
- Cut out for foot brake
- Right side [sitting on ATV]
Right Side also available.
