Chinese ATV Foot Rest Guard

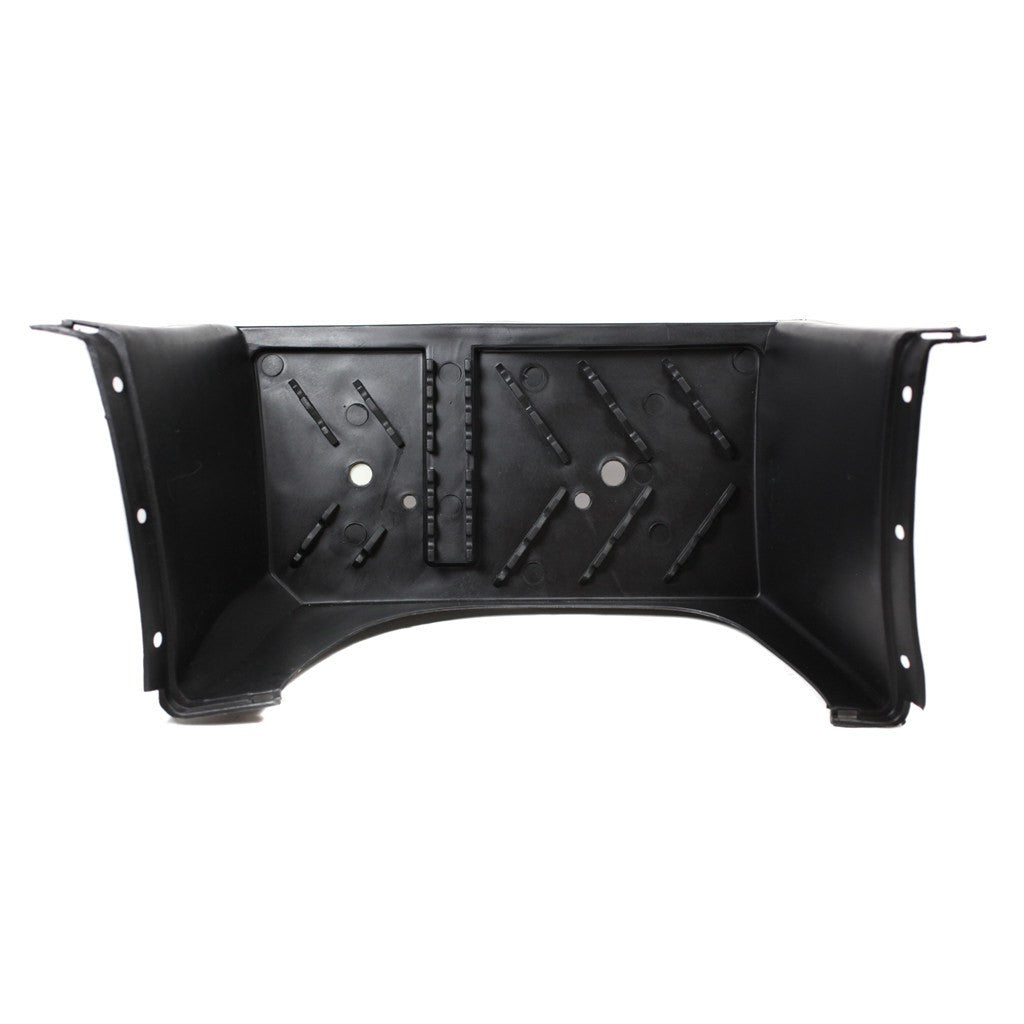

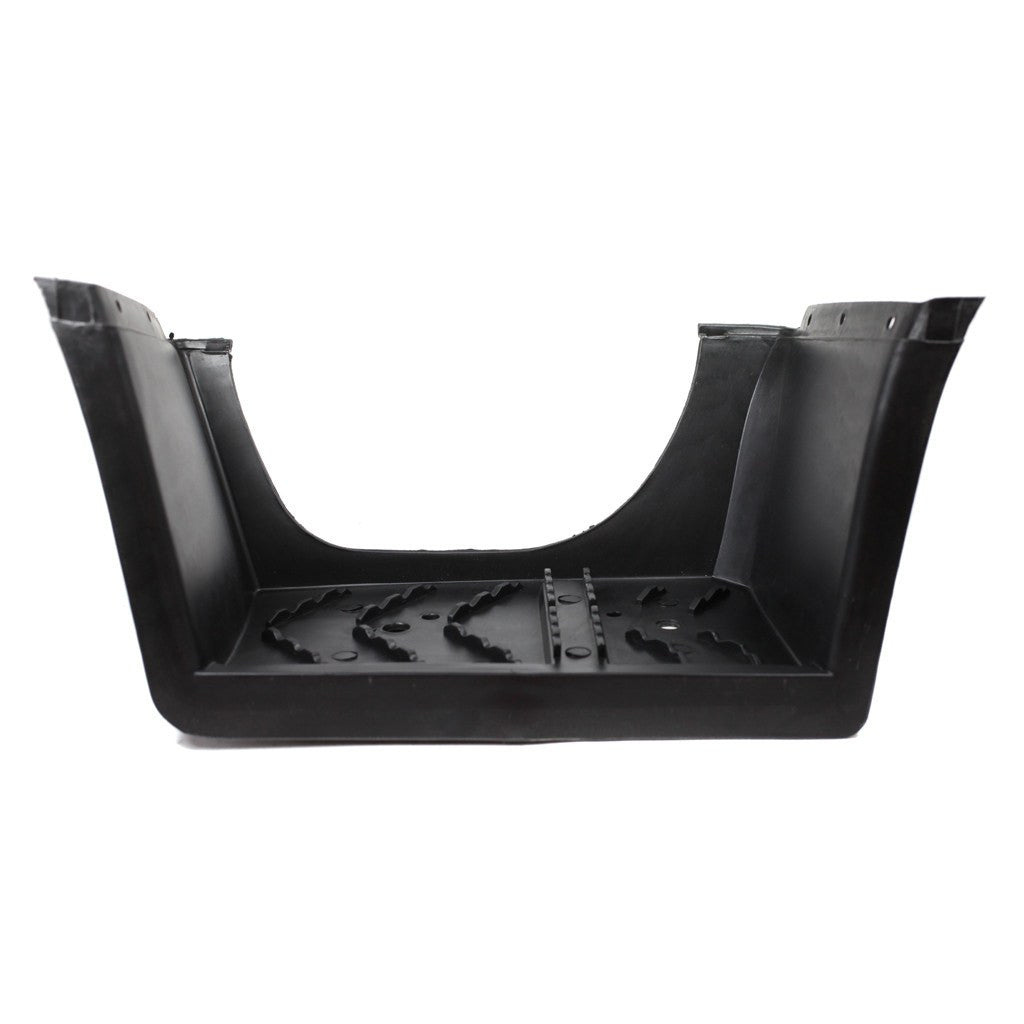

Plastic foot rest or guard for the kid's ATVs 50cc-110cc. Please use details and pictures to match the footrest for your ATV.
Foot rest details:
- Overall length: 41.9cm [16.5"]
- 3 mounting holes on front and back
- Front mounting hole measurement: 60mm [2.36"] center to center of each
- Rear mounting hole measurement: 60mm [2.36"] center to center
- 2 large mounting holes on floor [4 smaller holes available for different makes & models if needed]
- Distance between large mounting holes: 136mm [5.35"]
- Distance between smaller holes: 93.5mm [3.67"]
- Smaller holes are 17mm [.67"] apart, with 2 in "toe" area & 2 in "heel" area
- Left side [sitting on ATV]
- NO cut out area for a foot brake
- 20963B653 106466L
Known to fit Panther 70B 110BC kid's atvs, Tao Tao 70FA, 90FA, ATA110B, ATA110B1, ATA110B3, Boulder and many more.
- piece fit
- bolt holes
