Part number:
5000-FR425-83L

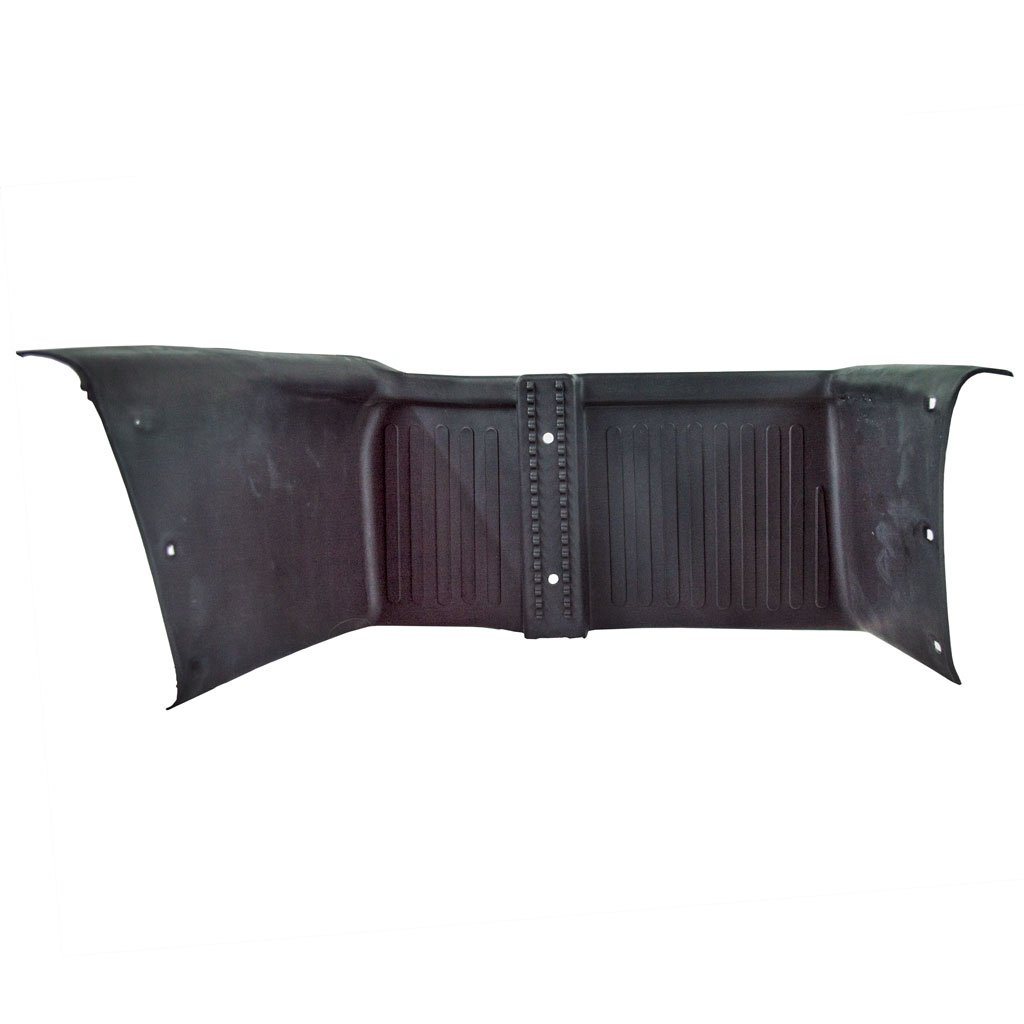

Chinese ATV Foot Rest Guard - Left - Kazuma Lacoste Panda 90cc 100cc 110cc
LEFT side
Plastic foot rest or guard for the Kazuma Lacoste and Panda 90cc, 100cc, 110cc. Does not fit Dingo 150cc or 250cc ATVs.
Foot rest details:
- Overall length: approximately 18 inches at longest point
- Mounting hole measurement on front: 2 5/8 inches center to center (3 holes total)
- Mounting hole measurement on back: 2 1/4 inches center to center (3 holes total)
- Overall height of front: approximately 7.0 inches
- Overall height of back: approximately 10 1/4 inches
- 2 bottom mounting holes
- Bottom mounting hole distance: approximately 3 1/2 inches
- Overall width: approximately 7.0 inches
- Left side (sitting on ATV)
Right Side also available.
