Chinese ATV Cylinder Head Assembly
52mm - 110cc

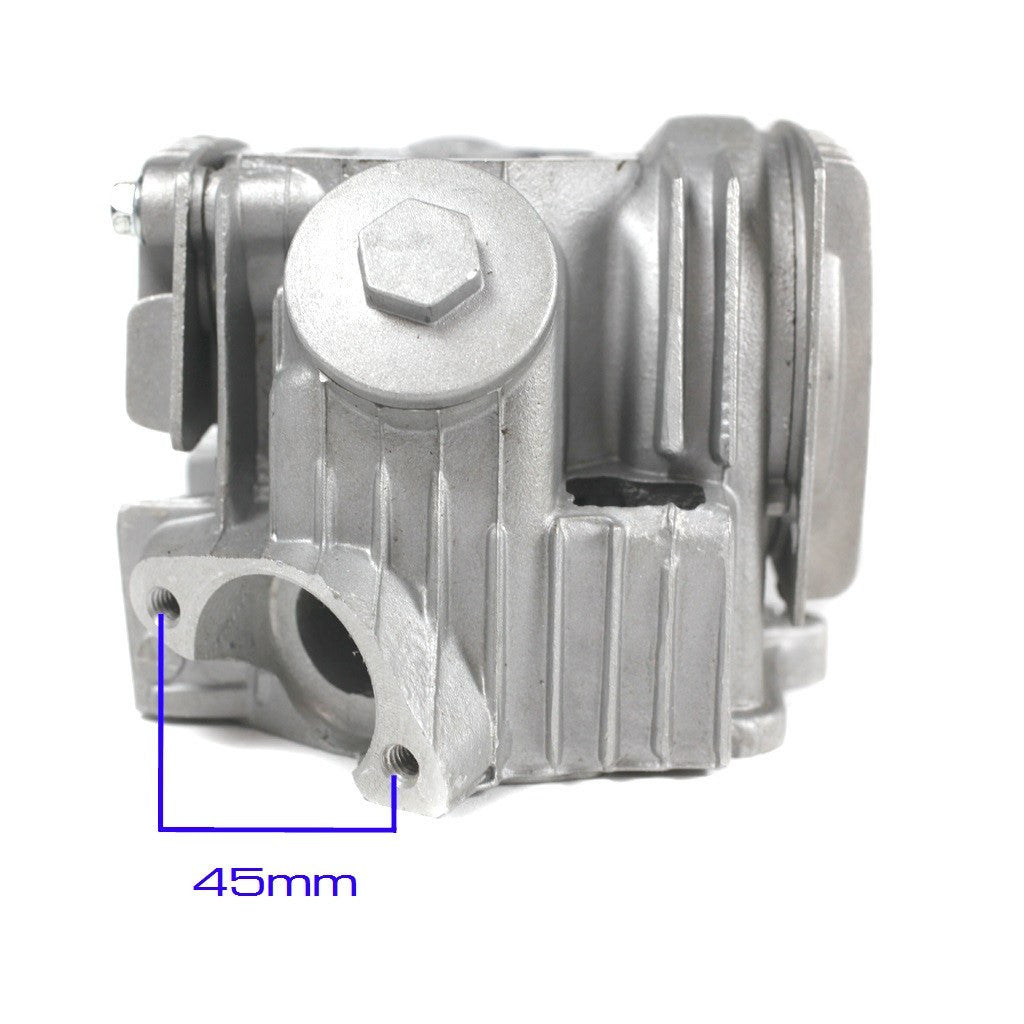

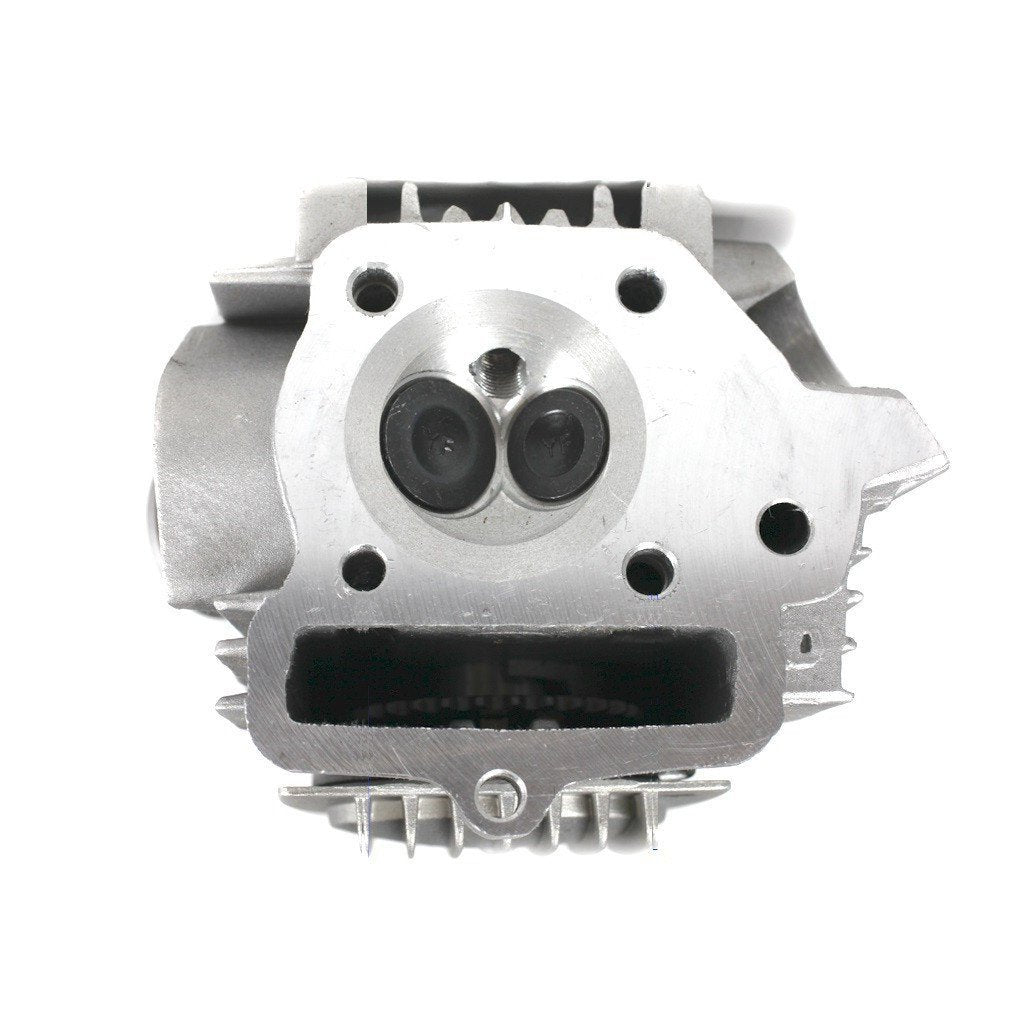

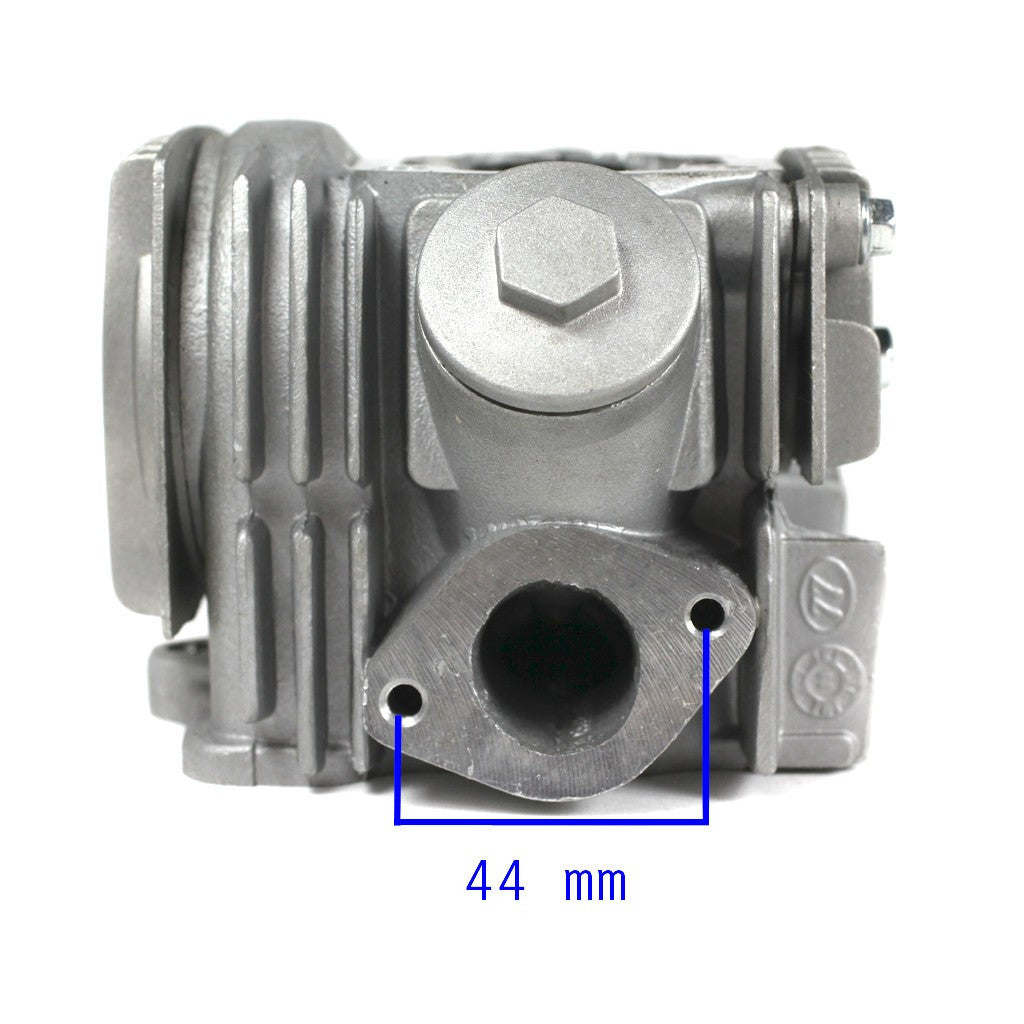

Complete cylinder head assembly with valves & cam for 110cc 4-stroke engines. Fits many makes and models of 52mm engines. Check pictures, specs., & measurements for verification of the correct part.
- Intake port diameter: 23mm [.90"]
- Exhaust port diameter: 20mm [.78"]
- Rocker/valve side measurement--Timing chain side mounting holes: 49mm [+/- 0.5mm]
- Rocker/valve side measurement--Plug side mounting holes: 47.5mm [+/- 0.5mm]
- Rocker/valve side measurement--From timing side to plug side mounting holes: 51.5mm [+/-0.5mm] AND 50.5mm [+/-0.5mm]
- Covers not included
- Timing Chain Sprocket: 28 teeth
*NOTE: If your valves measure 23mm/28mm this head will not replace your head. Your engine is a 125cc and requires a different head. This head ONLY replaces heads with 20mm/23mm valves.
Do you need the top end gasket set?
Used VMC many times. Fast shipping and right parts every time. You got to know what you're looking for tho
52mm 110cc cylinder head
Fit perfect.....worked perfect.... Came fast...
Head came complete. Adjusted valves before installing. Fired right up runs great. Grandson happy. Easy fix.
110cc Head Assembly
Fast shipping and great price. Bolt on and adjust valves and you're good to go!
cylinder head assembly
fit perfectly,came with spark plug,cam gear,covers etc.i assembled my motor and got 150 psi compression and then started the motor.ran great..very pleased so far.
