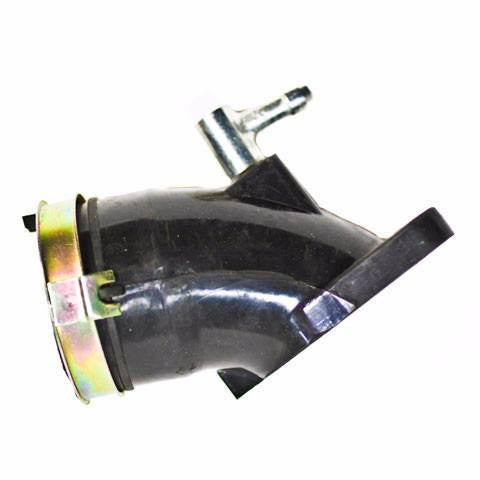

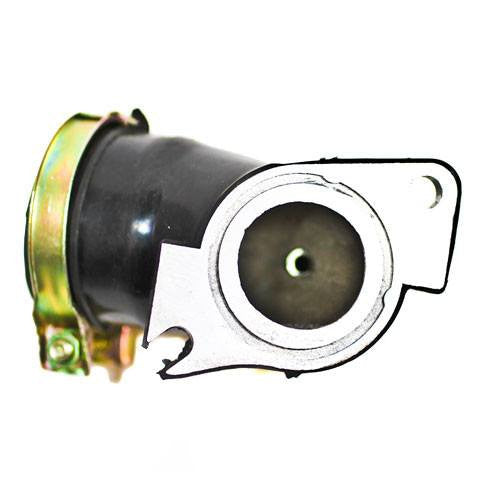

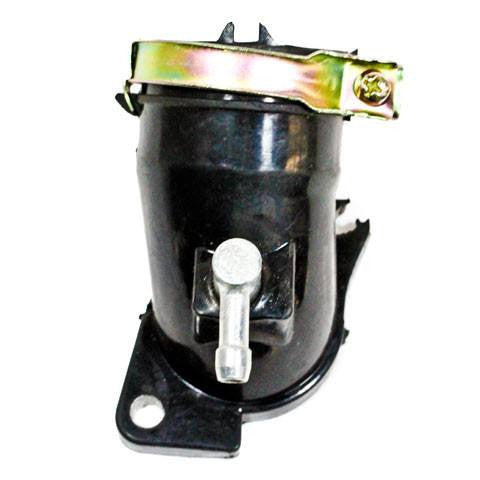

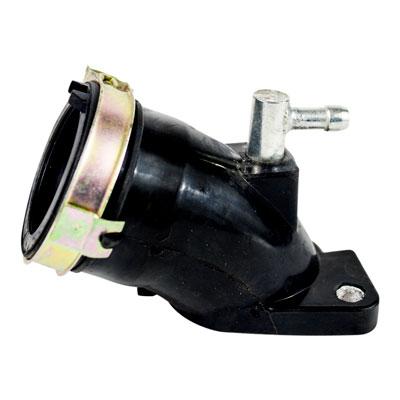

Chinese Intake Manifold for Linhai 250cc 260cc 300cc
Chinese Linhai 260cc - 300cc intake manifold fits many 4-stroke models of ATVs, go karts, scooters, and mopeds. Check pictures and measurements to verify this one will fit your machine/engine. Measurement on bolt holes are center-to-center.
- Bolt hole measurement: 63mm [2.47]
- Overall length: 93mm [3.66"]
- ID of pipe at clamp end: 34mm [1.33"]
- OD of pipe: 45mm [1.77"]
- 27mm [1.05"] ID on engine side
- 90 degree vacuum port
- O-ring included
Known to fit American Sportworks 260cc, 300cc ATVs, Aprilia Leonardo 250, Aprilia Leonardo 300, Benelli Velvet 250, CF Moto V3/V5, Diamo Turista, Italjet Jupiter 250, JCL, VOG 260, Linhai Aeolus, Linhai Bighorn 260cc 300cc 400cc ATVs, Linhai Big Daddy 260cc ATV, Linhai Tank 260, Manco Talon 260cc, 300cc ATVs, Tank Touring 250DE, Malaguti Madison 250, Malaguti Password 250, MBK Kilibre 300, MBK Skyliner 250, Renault Kouranos 250, Roketa MC-54 250B, Xingyue VOG 260, Yamaha Majesty 250 and many more.
- replacement part
- Manco Talon 260
Another great replacement part from this company
Parts fit perfectly
I haven't used them yet as I have already found a way to fix the problem but the parts were just what I needed and whenever I need to pull the carburetor I will install the them. I was very happy with the parts and the delivery of them was great and fast as one of the parts I needed asap and it worked great
This was a perfect fit for my Manco Talon 260 ATV and everything went together well. Make sure you get a new manifold gasket at the same time. This was a good replacement part at a good price!
