Chinese Intake Manifold 20mm ID
Chinese 50cc-110cc intake manifold fits many 4-stroke models of ATVs, dirt bikes, go karts, scooters, and mopeds. Check pictures and measurements to verify this one will fit your machine/engine. Measurement on bolt holes are center-to-center.

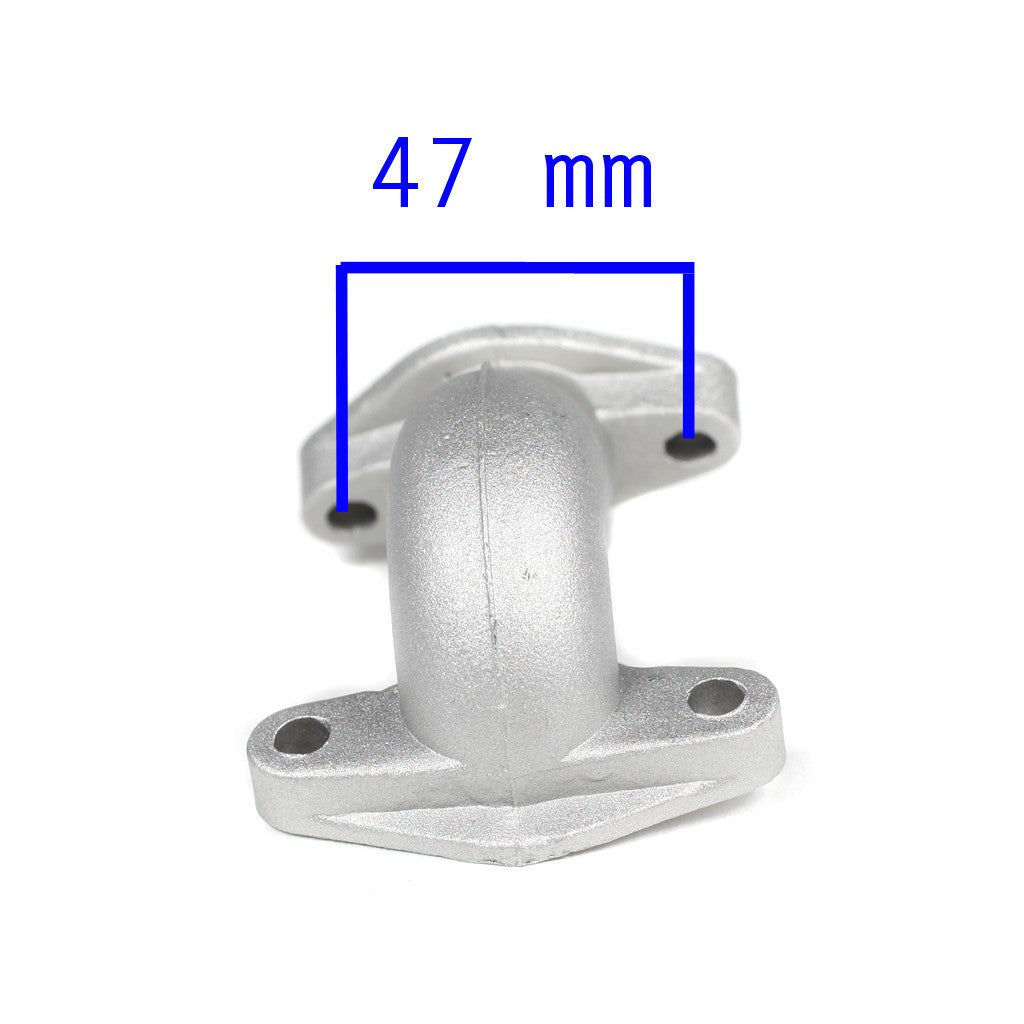

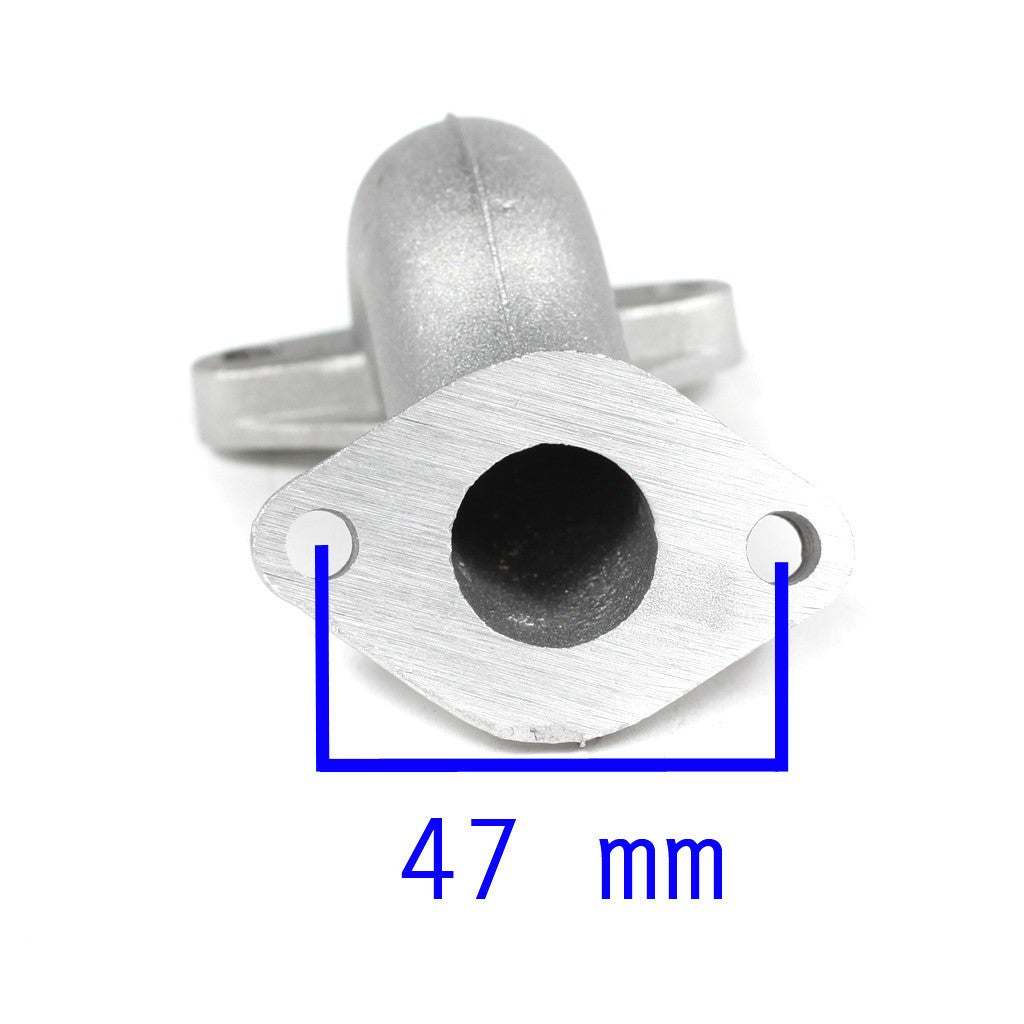

- Bolt hole measurement: 45mm [1.77"] to engine
- Bolt hole measurement: 48mm [1.89"] to carb
- Overall length: 92mm [3.62"]
- ID of pipe: 20mm [78"]

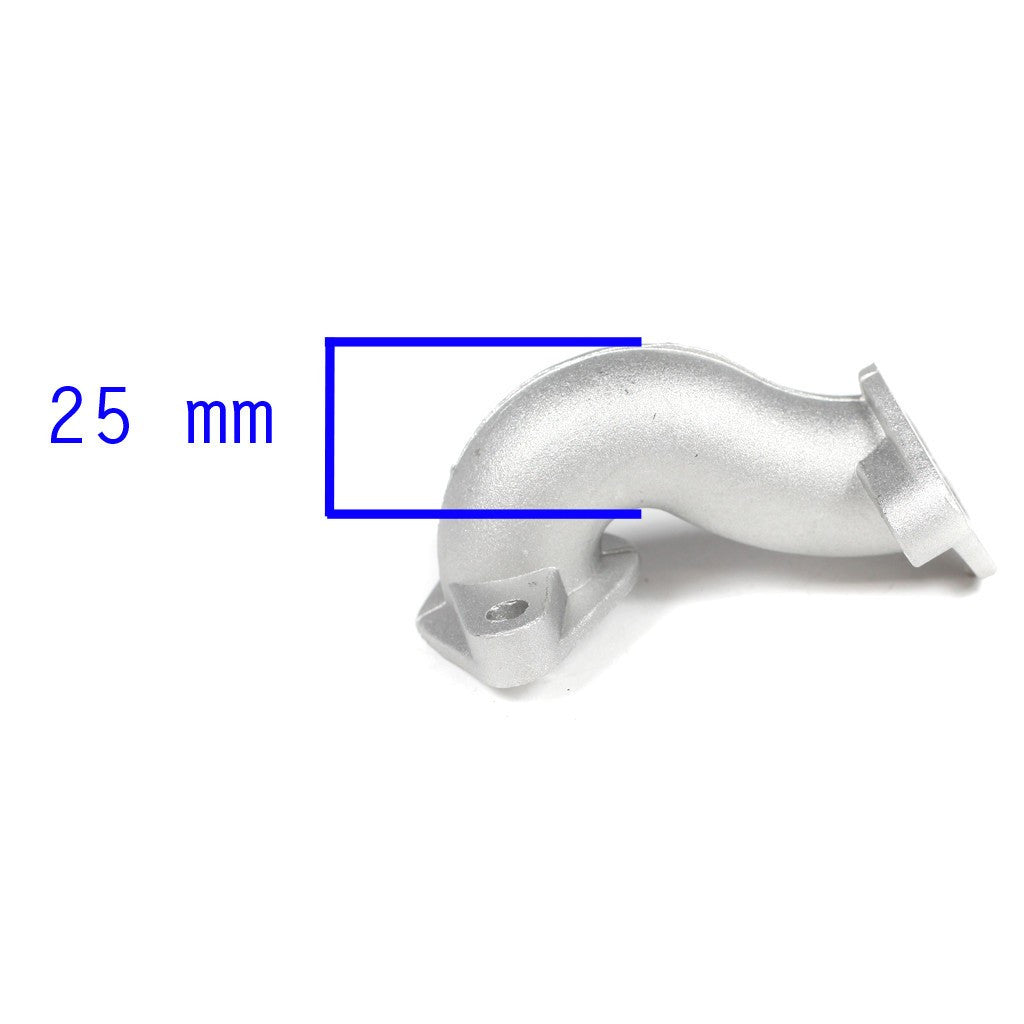

- OD of pipe: 25.4mm [1"]
- manifolds flange
- throat hole
The manifolds ****** is off center with the throat hole and won't match up to the carburetor , so I had to modify it to make it work.
it worked ok good
Up and running
Not sure how it happened but the manifold that can with the ATV was cracked - got online found VMC, clicked my order and 4-days later it was being installed - fit like it should, My son has been using the machine non-stop. Very responsive!!!!
