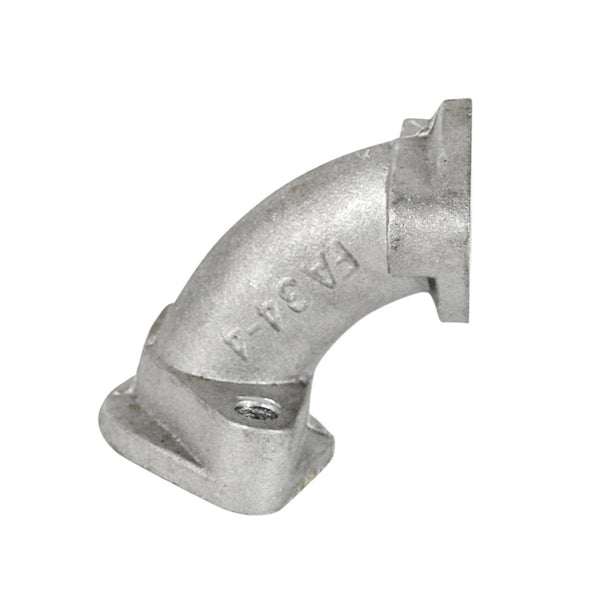

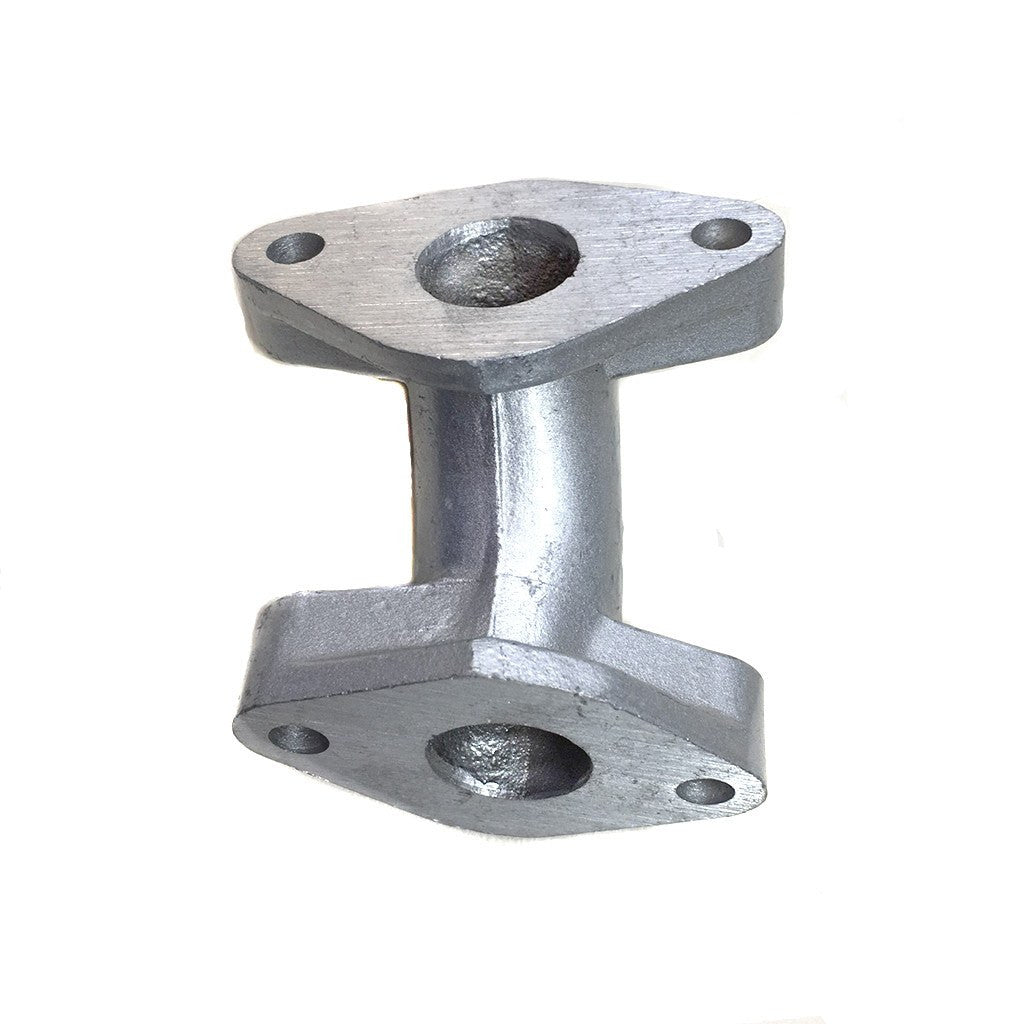

Intake Manifold - 17.5mm - 50cc-90cc - Version 1

Chinese Intake Manifold 17.5mm ID

Version 1

Chinese 50cc-90cc intake manifold fits many 4-stroke models of atvs, dirt bikes, go karts, scooters, and mopeds. Check pictures and measurements to verify this one will fit your machine/engine. Measurement on bolt holes are center-to-center.

Manifold description:

• Bolt hole measurement: 45mm (1.77 in) to engine
• Bolt hole measurement: 48mm (1.89 in) to carb
• Overall length: 58mm (2.28 in)

• ID of pipe: 17.5mm (0.69 in)

• OD of pipe: 24mm (0.95 in)


Known to fit Panther 70, Redcat 50-70cc, and Tao Tao, along with many other manufacturers.
