Chinese ATV A-arm Tab Kit for 70cc - 125cc

The Parts You Want, The Service You Need

Part number: 430-BU440-100

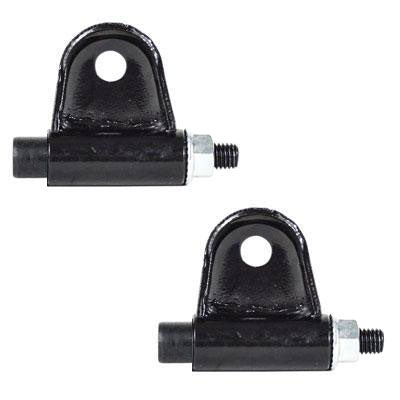

Chinese ATV A-Arm Tab Kit

This tab kit was used on several makes and models of ATVs. Please check the pictures and specs to make sure this is the correct kit for your ATV.

Kit details:

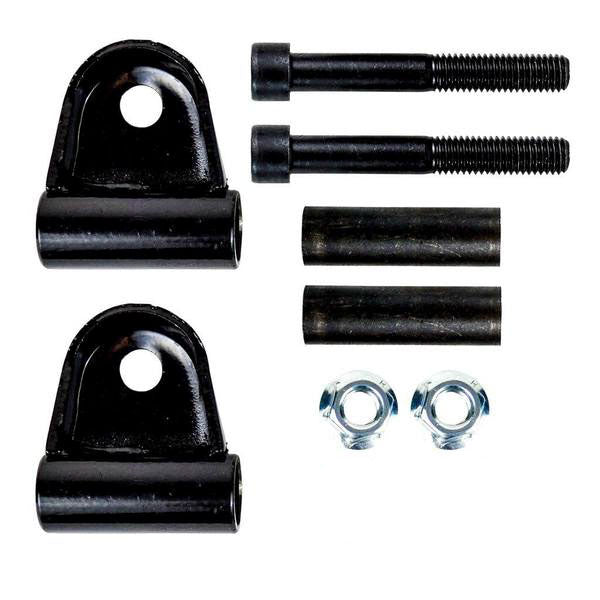

8 pc set [spacers/bushings for tabs are inside the tab]
Tab length: 50.2mm [1.98"]
Tab width: 49mm [1.93"]
Bolt length: 84.4mm [3.32"]
Tab hole diameter: 10.5mm [.41"]

Known to fit TaoTao, Peace, JCL, Coolsports, Eagle, and more.

Shopping for parts for your Chinese-built machine is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!

VMC Chinese Parts - your one stop shop for Chinese ATV Parts, GY6 150CC Parts, Tao Tao Parts, Kazuma ATV Parts, Chinese Scooter Parts, Lifan Parts, Roketa Parts, SunL ATV Parts, Redcat Parts, TaoTao Parts, Coolster Parts and much more!
