Chinese ATV 10 x 7.5 Rear Rim - 4 Bolt Tao Tao ATVs ATA150D, Rhino 250, Bull 250
Version 24

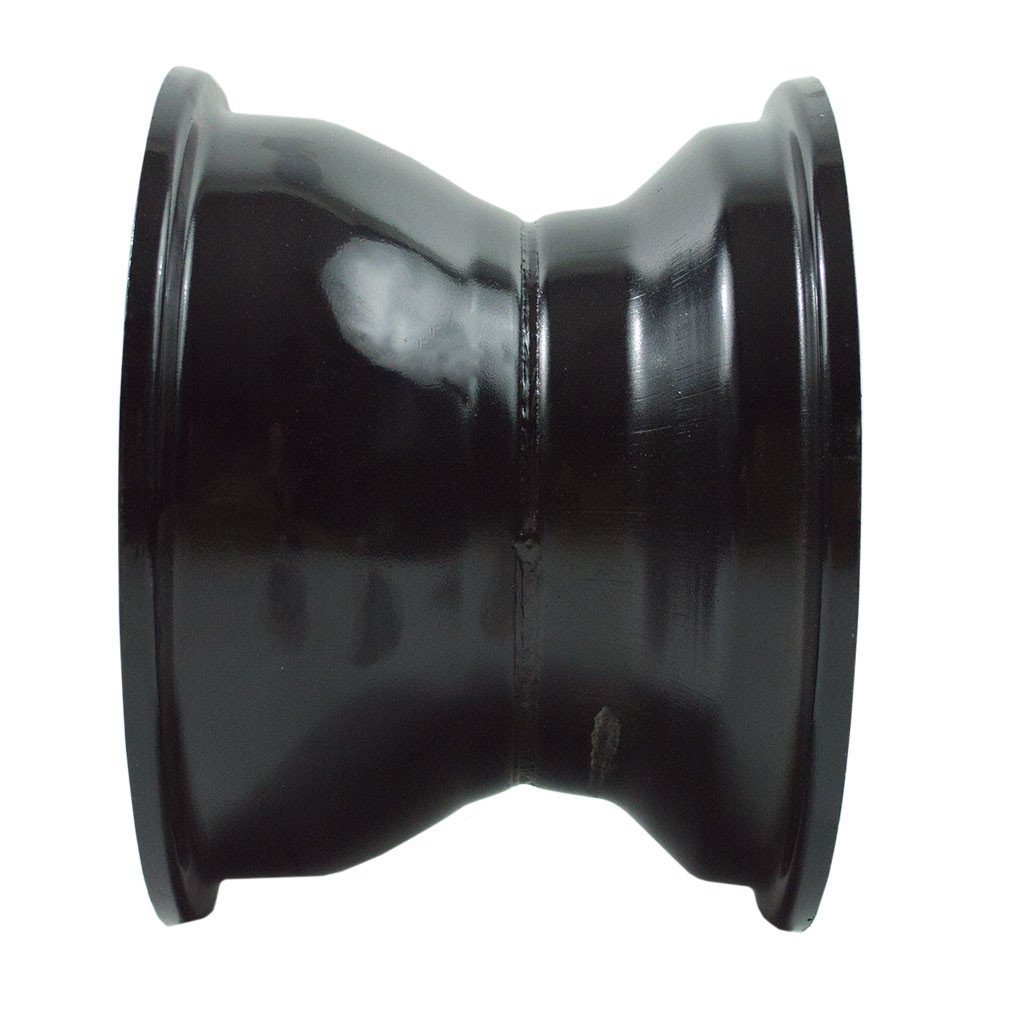

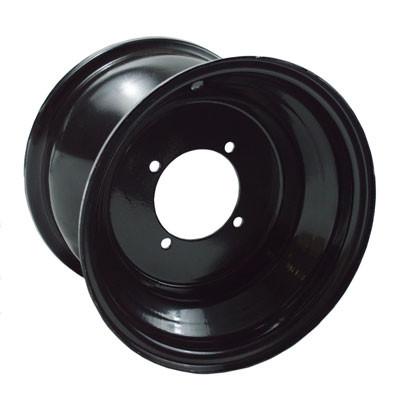

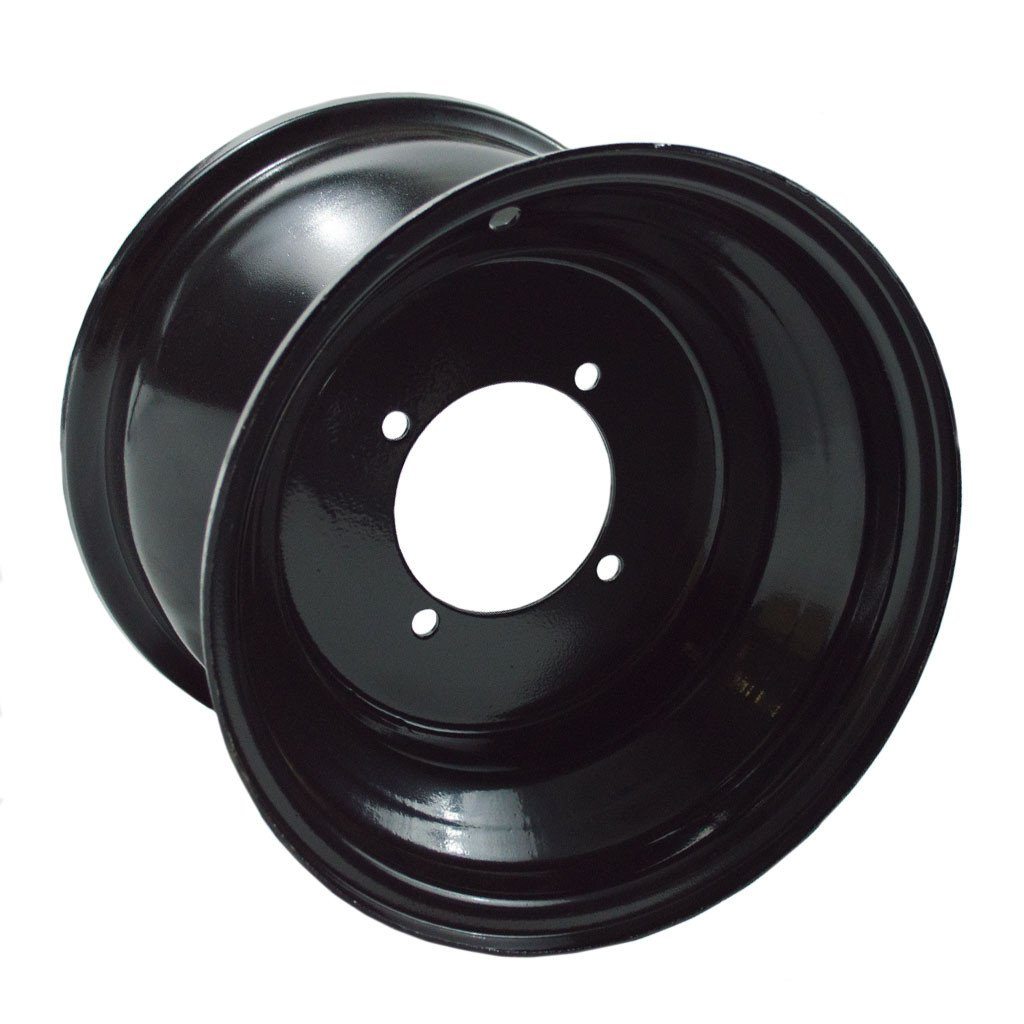

Rear 10.0 inch X 7.5 inch - 4 bolt
Chinese rim for atvs, used on several makes and models. Please use detailed measurements and pictures to help you get the correct rim for your machine.
If you're having trouble figuring out the size of your rim, CLICK HERE!
Rim details:
- Black
- Steel
- Bead diameter: 10.0 inches
- Bead width: 7.5 inches
- 10mm bolt holes

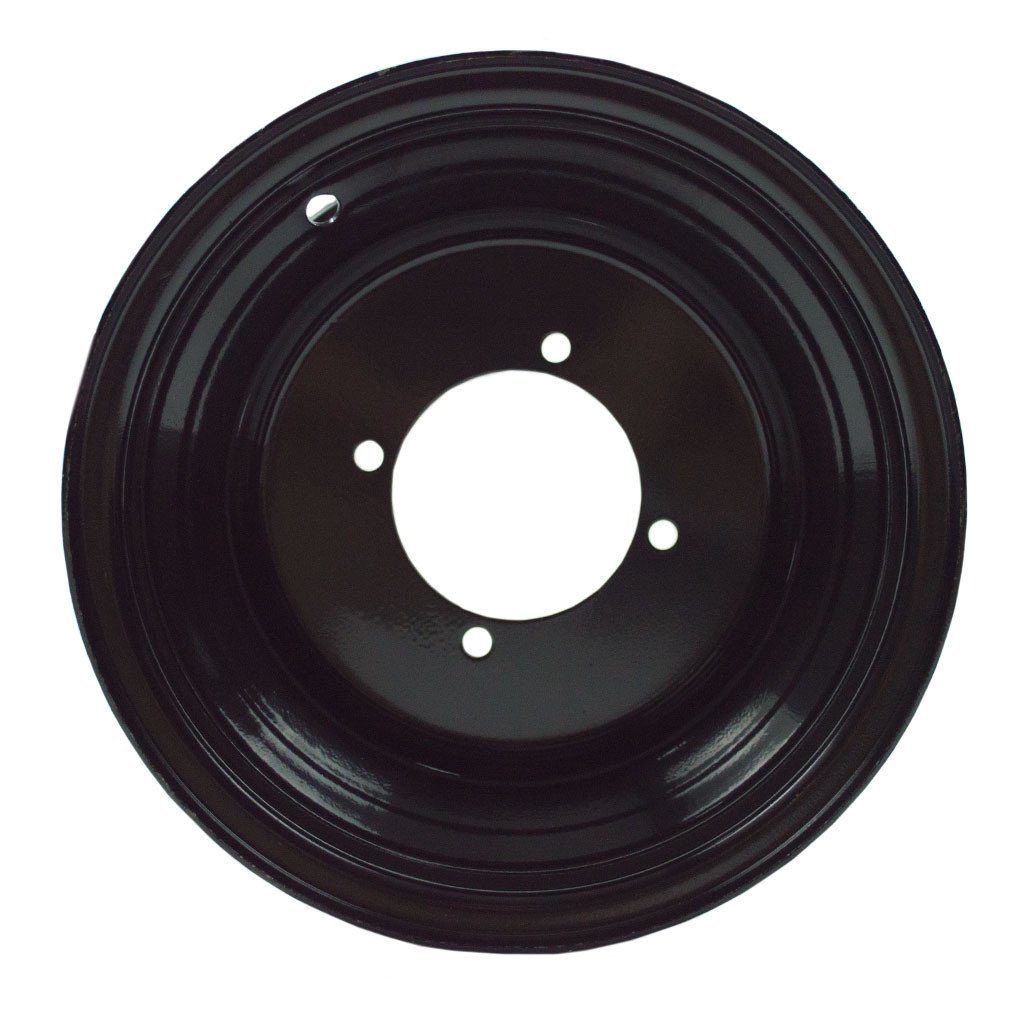

- Bolt circle: 4 x 110 (4 bolt holes in a 110mm circle)
- Offset: 4.0 inch LB + 2.5 inch
- Center hole ID: 90mm (3.5 in)
- Actual width: 215mm (8.5 in)
- Actual diameter: 284mm (11.2 in)
- OE uses this rim with a 22x10-10 tire
- 20276B824
The last number on your TIRE will let you know if you are needing a 10.0 inch rim. This is a 10.0 inch by 8.0 inch rim.
Fits the Coleman AT200-R atv
Fits the Tao Tao Motors ATA150D, Rhino 250 and the Bull 250.
