Tie Rod End Kit - 12mm Female with 12mm Stud - LH and RH Threads

Chinese ATV Tie Rod End Kit

Version 4

This tie rod end kit is used on several makes and models of ATVs.  Please check the pictures and specs to make sure this is the correct kit for your ATV.  If you need your tie rod end studs to be 10 mm, then you need our version 3.

Kit details:

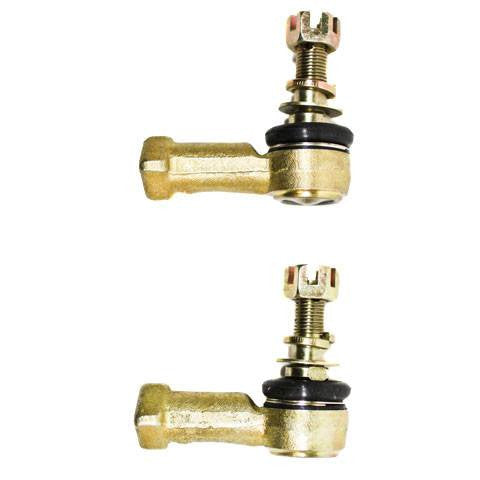

• Each kit contains two quality tie-rod ends - one left-hand thread and one right-hand thread
• Sold in kits for one tie-rod; two kits required per vehicle
• End length: 76.4mm [3"]
• End height: 35mm [1.37"]
• Bolt size: 12mm [.39"]
• Fine thread (12x1.25)
• Bolt length from "lip" to end of threads: approx. 31mm
• Female end requires a 12mm x 1.25 male rod.
