Chinese ATV Tie Rod End Kit
This tie rod end kit is used on several makes and models of ATVs. Please check the pictures and specs to make sure this is the correct kit for your ATV. If you need your tie rod end studs to be 10 mm, then you need our version 3.

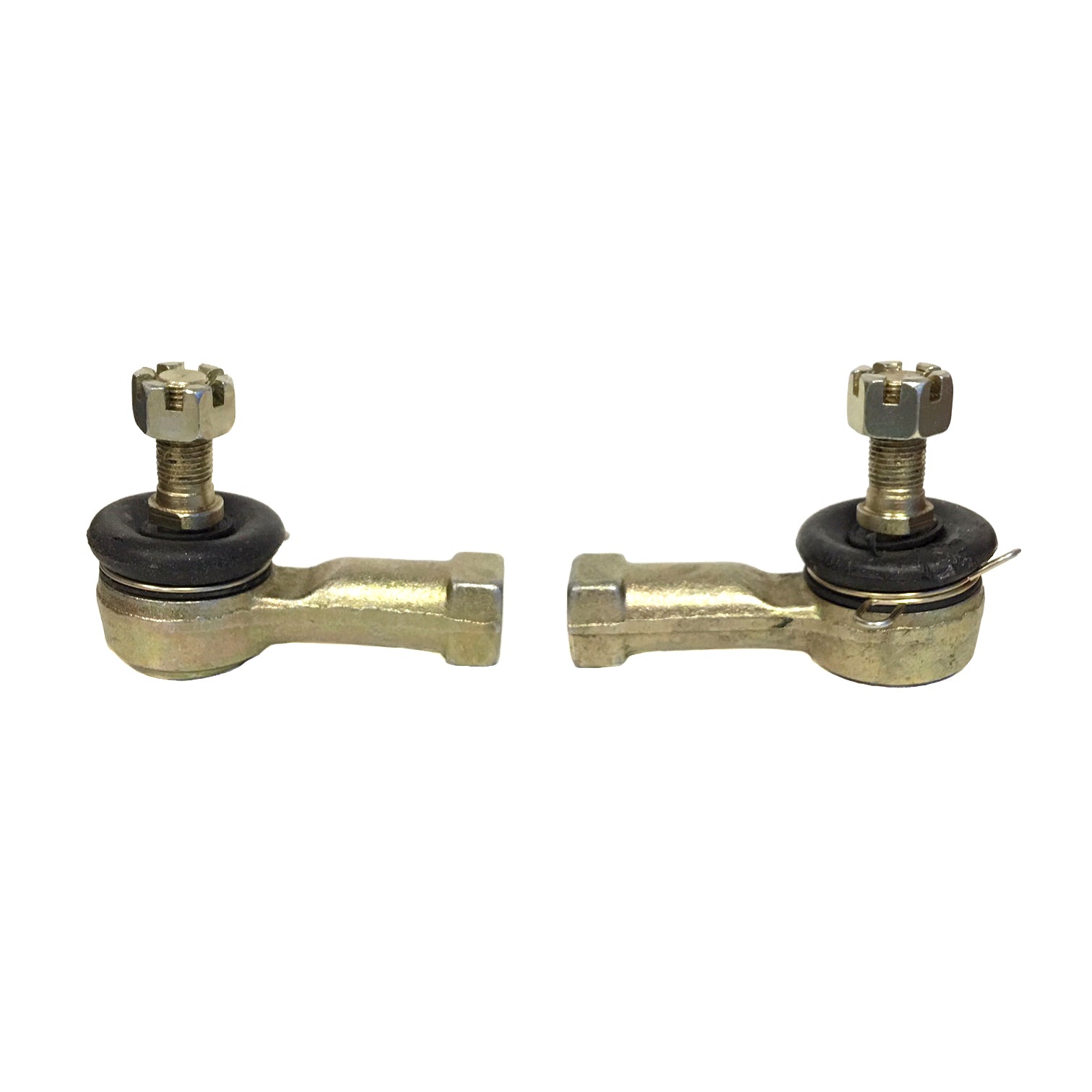

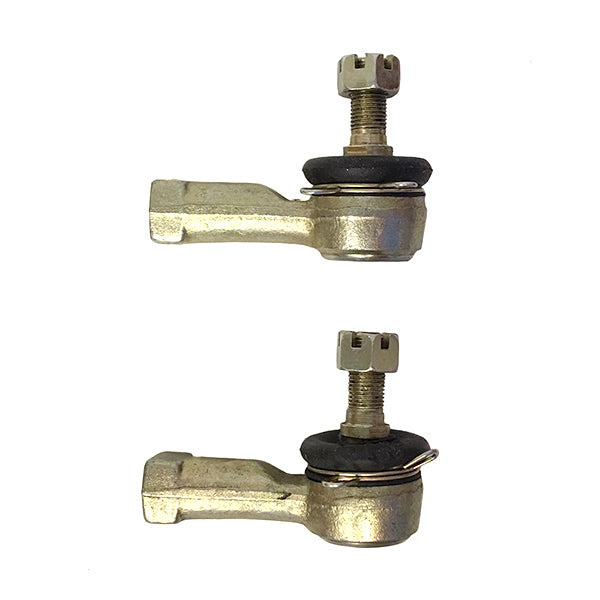

- Each kit contains two heavy quality tie-rod ends - one left-hand thread and one right-hand thread
- Sold in kits for one tie-rod; two kits required per vehicle
- Overall end length: 90mm [3.54"]
- Overall end height: 66mm [2.6"]
- Bolt size: 12mm [.39"]
- Extra fine thread (12x1.25)
- Bolt length from "lip" to end of threads: approx. 29mm
- Bolt thread size: M12 x 1.25
- Female end requires a 12mm x 1.25 male rod.
