Chinese 5-Wire / 1-Plug Voltage Regulator Rectifier for Dirt Bikes Scooters ATVs
Version 22
Voltage regulators regulate the electric current from the battery to the other electrical components. If you find that your electrical system overloads when you rev up the machine, then you most likely need to replace the voltage regulator. Please look at pictures and compare measurements to ensure that you are choosing the right voltage regulator.
This popular voltage regulator rectifier fits many Chinese atvs and dirt bikes.
Regulator details:
- 5 wires
- Wiring harness length: 15.24cm (6.0 in)
- Single plug: 6 spaces but only 5 are used.

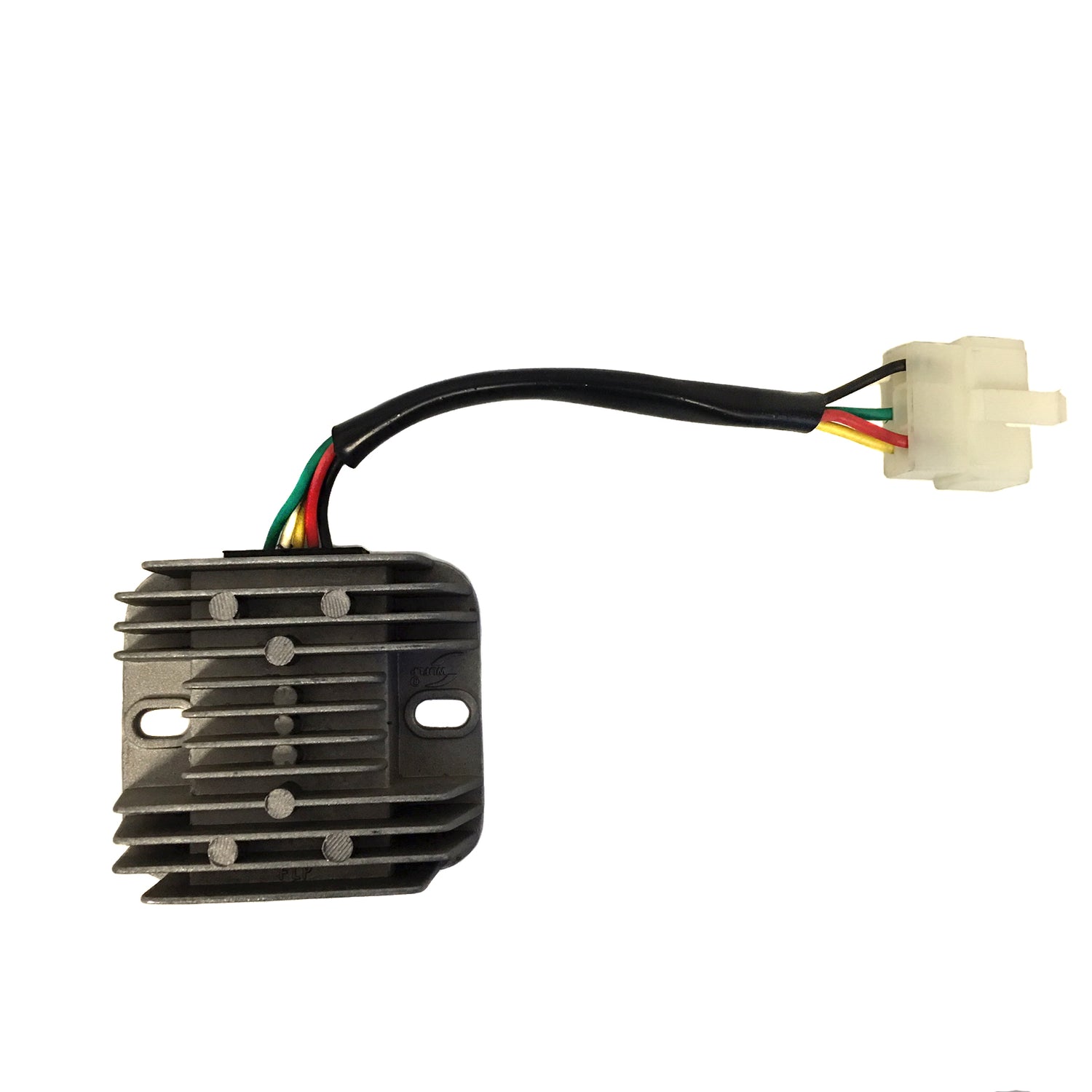

- Regulator measurement: 80mm x 70mm x 29mm (3.1 in. x 2.7 in. x 1.1 in)
- Plug measurement: 32mm x 16mm. (1.2 in. x 0.61 in)
- Bolt holes: center to center are 62mm (2.43 in)

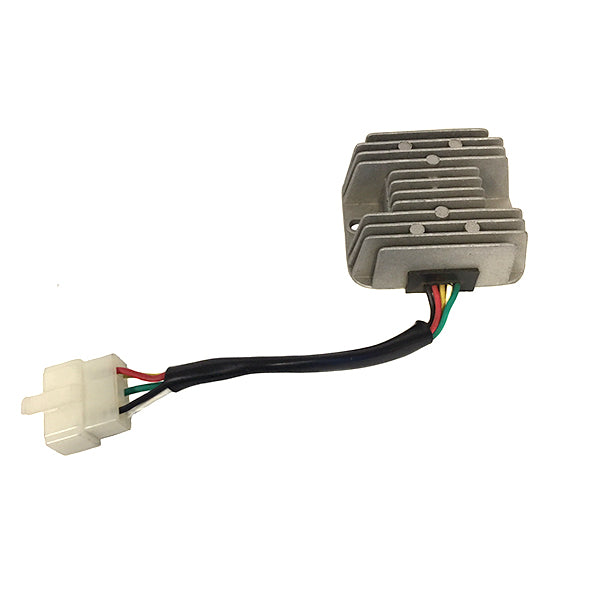

- Wire colors in picture are different from actual regulator!
- With the wires facing you, left to right, the colors are red, yellow, black, pink and green.

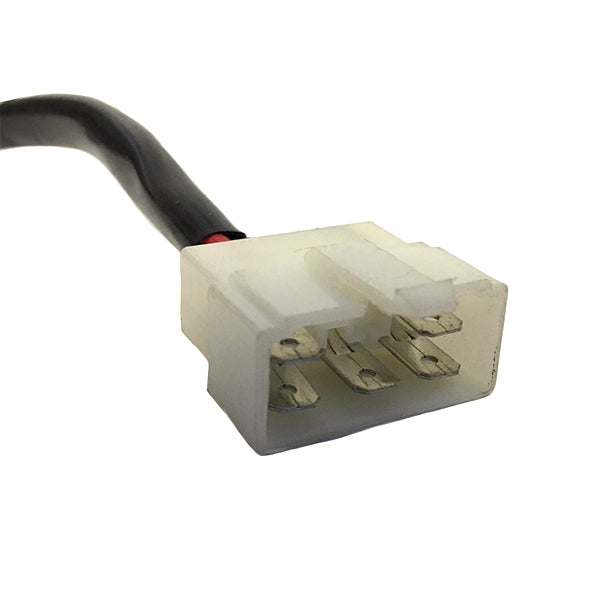

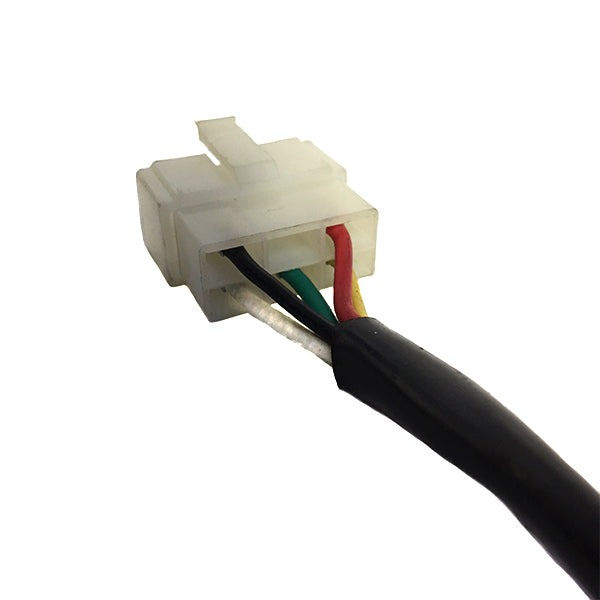

- With the plug facing away from you, the top row wires are black on the left and red on the right. Center is empty.
- With the plug facing away from you, the bottom row of wires are pink, green and yellow, left to right.
- Any questions, call us!
Shipping details:
Do you need your voltage regulator fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
