Chinese 5-Wire / 1-Plug Voltage Regulator Rectifier for GY6 50cc, 125cc & 150cc Scooters, ATVs
Voltage regulators regulate the electric current from the battery to the other electrical components. If you find that your electrical system overloads when you rev up the machine, then you most likely need to replace the voltage regulator. Please look at pictures and compare measurements to ensure that you are choosing the right voltage regulator.
This popular voltage regulator rectifier fits many Chinese ATV's and dirt bikes.
- 5 wires
- Wiring harness length: 17.78cm [7"]

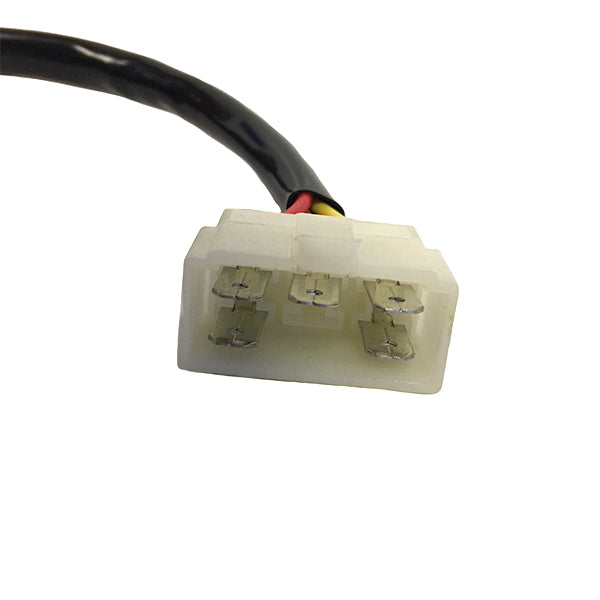

- Male plug: 6 spaces but only 5 are used.

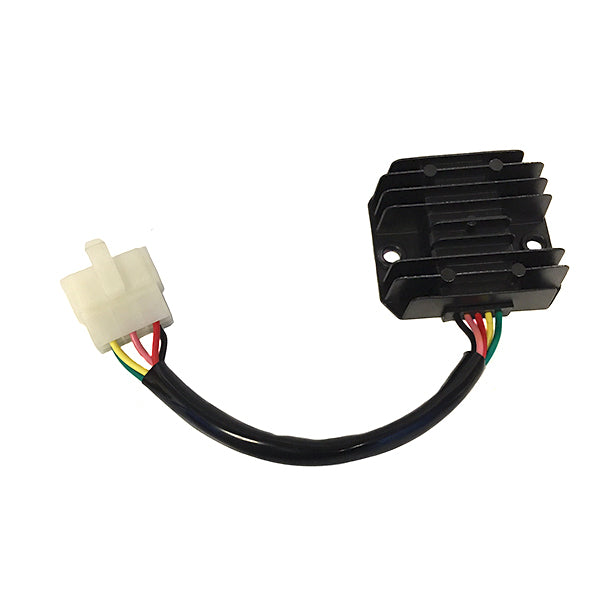

- Regulator measurement: 68.5mm x 59mm x 22mm [2.7" x 2.3" x .85"]
- Plug measurement: 32mm x 15.5mm. [1.25" x .61"]
- Bolt holes: center to center are 55mm [2.17"]

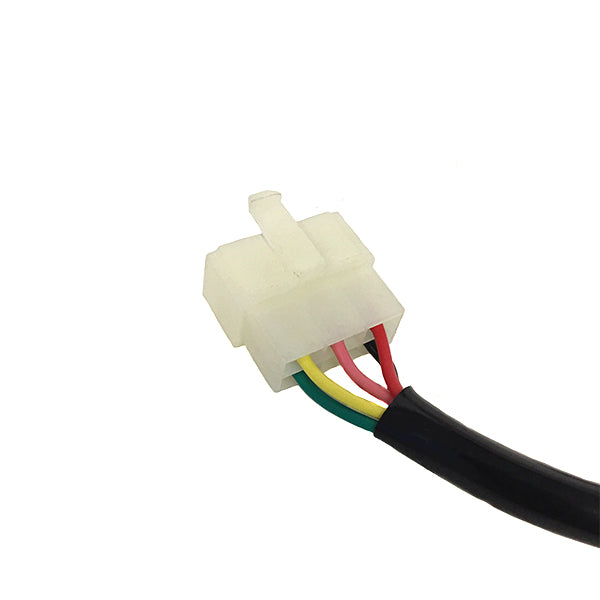

- Wire colors are Green, Pink, Red, Yellow, and Black although this may vary.
- ZTXF 20170417
Do you need your voltage regulator fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
Electrical parts are not returnable. Please double check before ordering.
