Chinese 5-Wire / 1-Plug Voltage Regulator Rectifier for Dirt Bikes Scooters ATVs
Voltage regulators regulate the electric current from the battery to the other electrical components. If you find that your electrical system overloads when you rev up the machine, then you most likely need to replace the voltage regulator. Please look at pictures and compare measurements to ensure that you are choosing the right voltage regulator.
This popular voltage regulator rectifier fits many Chinese ATV's and dirt bikes.
- 5 wires
- Wiring harness length: 15.24cm [6"]

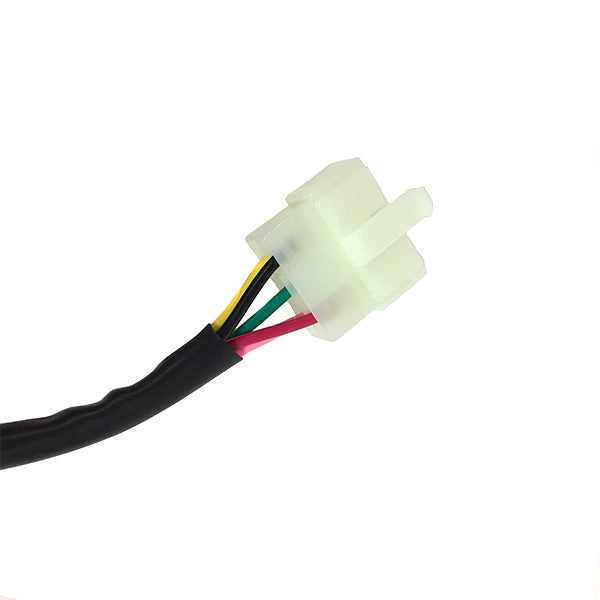

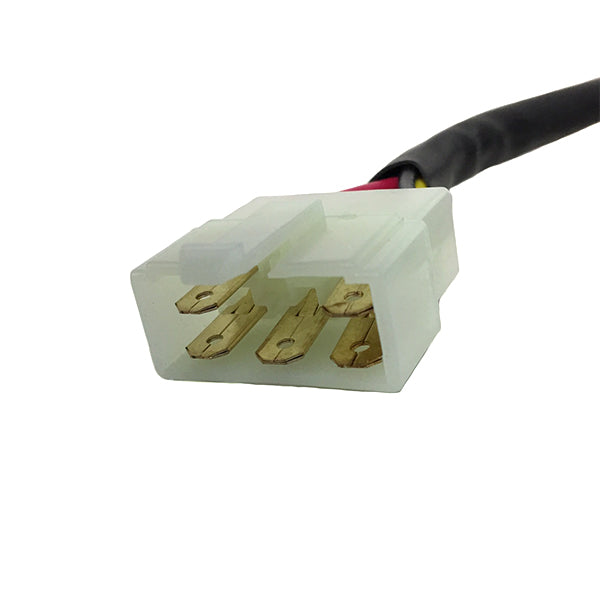

- Single plug: 6 spaces but only 5 are used.

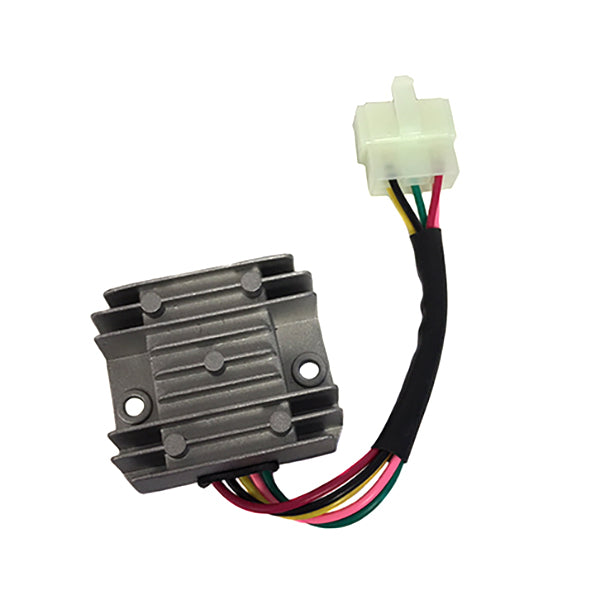

- Regulator measurement: 59mm x 68mm x 25mm
- Plug measurement: 32mm x 16mm. [1.2" x .61"]
- Bolt holes: center to center are 55mm [2.16"]
- With the wires facing away from you, left to right, the colors are Green, Pink, Yellow, Black and Red.
