Torque Converter Set - 40 Series 5/8 Bore on Driven and 1.0 Inch on Driver for ATVs, UTVs and Go-Karts - Version 57
Torque Converter Set - 40 Series 5/8 Bore on Driven and 1.0 Inch on Driver for ATVs, UTVs and Go-Karts - Version 57 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Torque Converter Set - 40 Series 5/8 Bore on Driven and 1.0 Inch on...

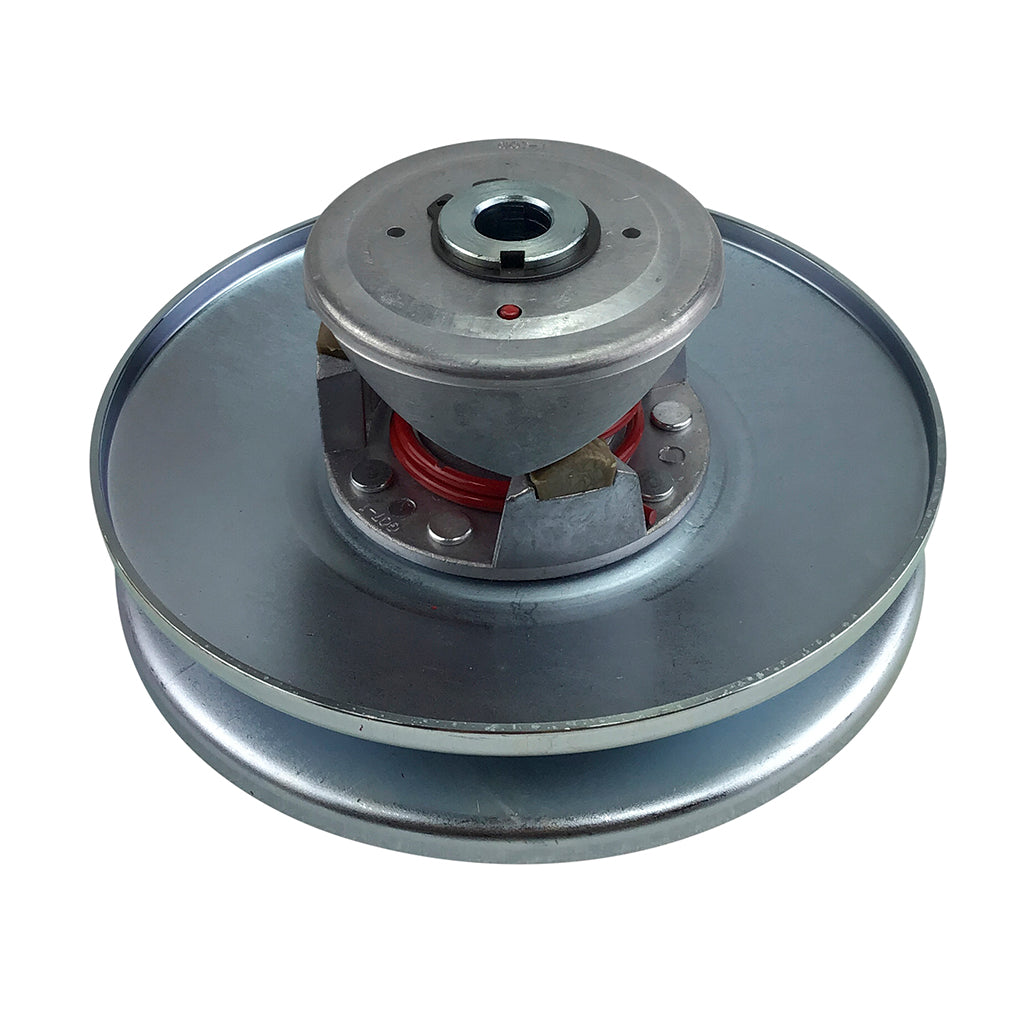

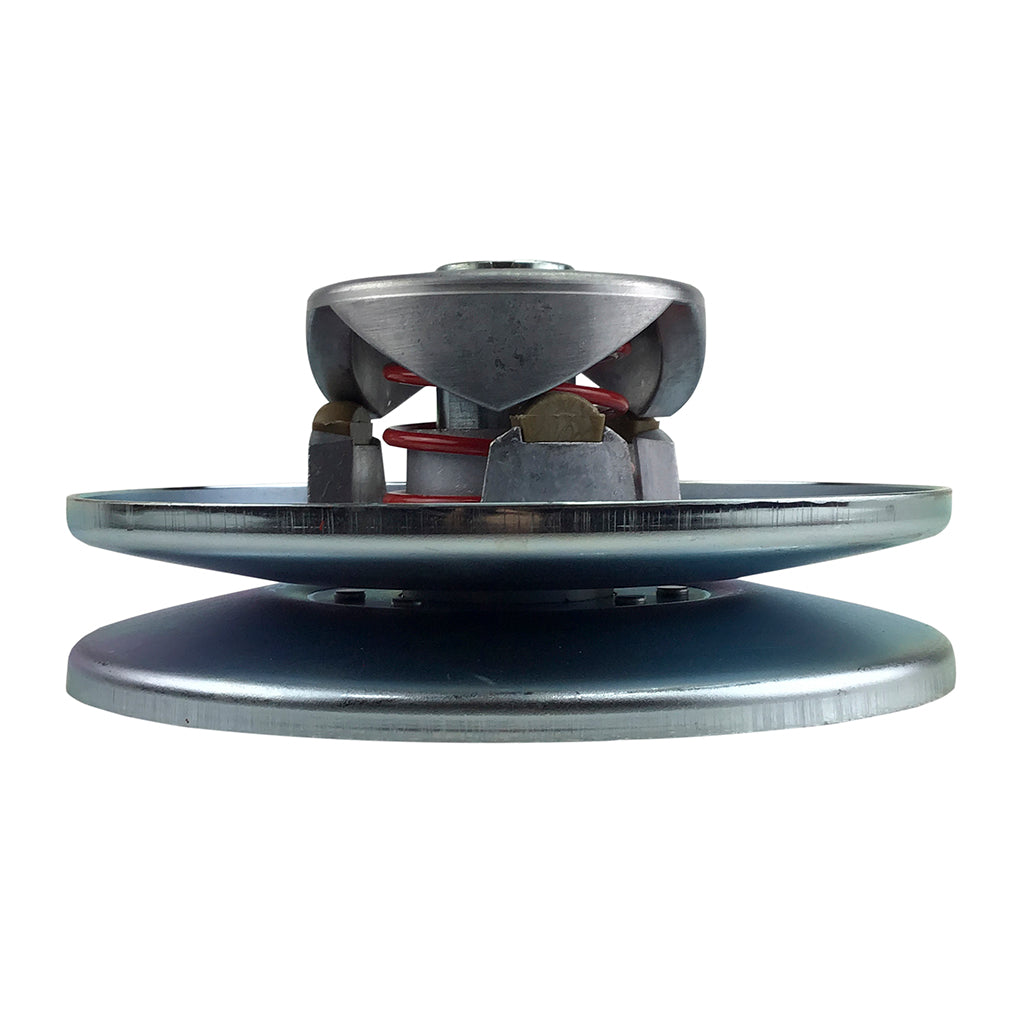

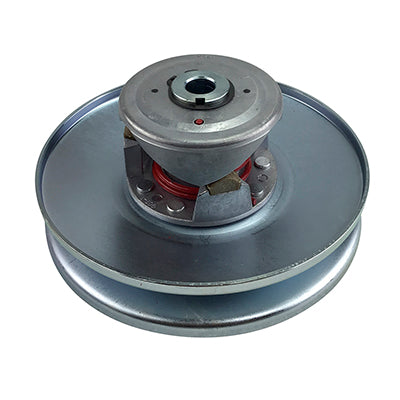

Chinese Torque Converter Assembly - 40 Series
5/8 Inch Driven Clutch
1.0 Inch Driver Clutch
Version 57
If you currently have a centrifugal clutch, you can upgrade by a going to a torque converter. Torque converters improve take off power, acceleration and top end speed on atvs, utvs, go-karts and other vehicles. Version 57 fits a 1.0 inch engine crankshaft with a 1/4 inch keyway. The driven pulley would mount on a 5/8 inch secondary shaft such as a jackshaft or differential.

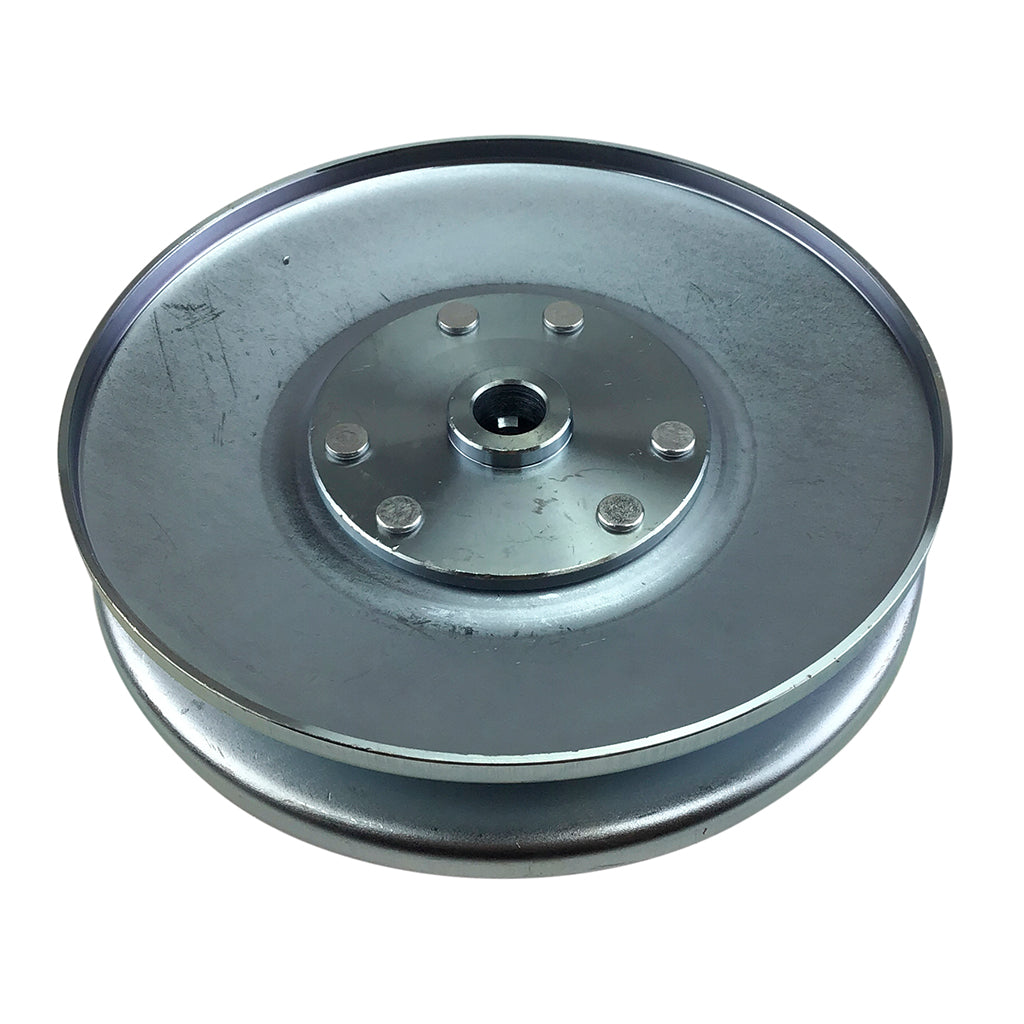

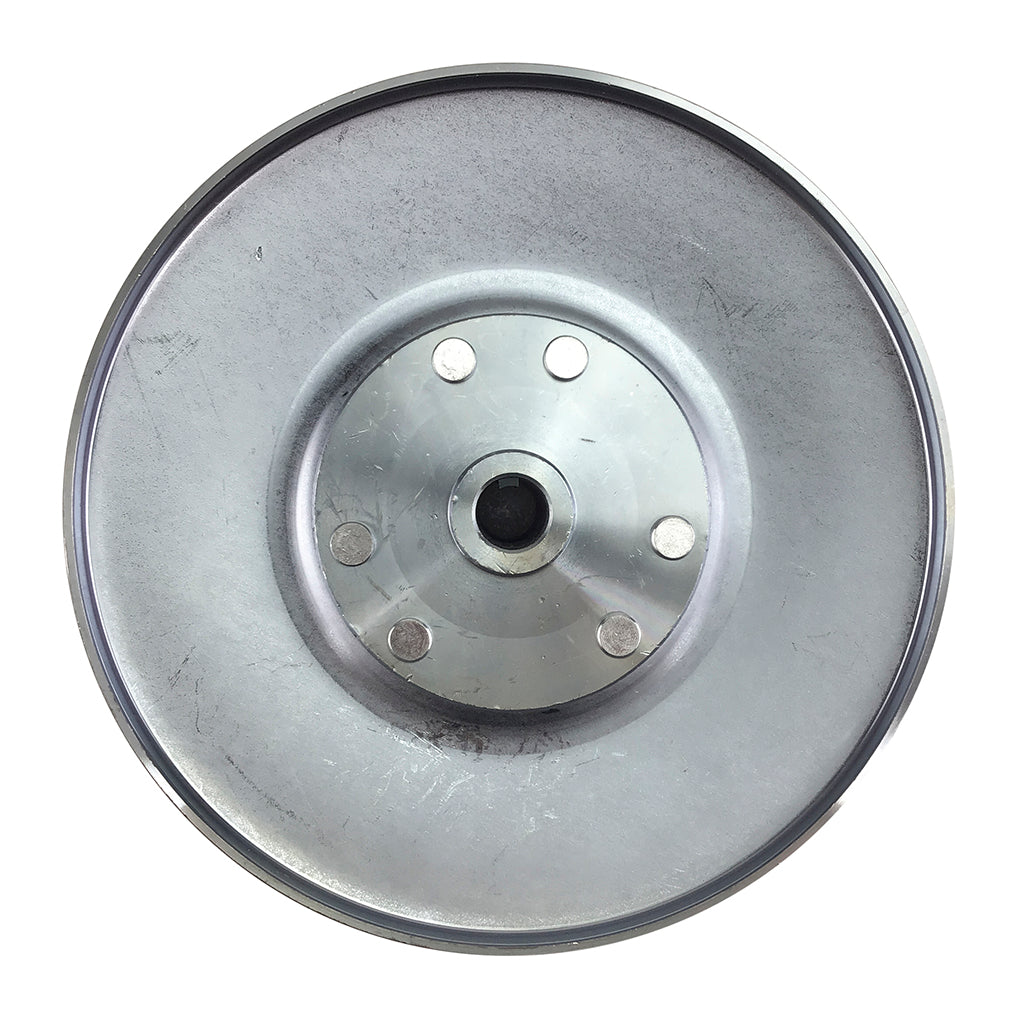

Driven clutch details:
- Overall OD of pulley: 193mm (7.6 in)
- 5/8 inch bore
- 3/16 inch key way
- Built in key
- Replaces Comet 40/44 series torq-a-verter models
- 209151 209151A

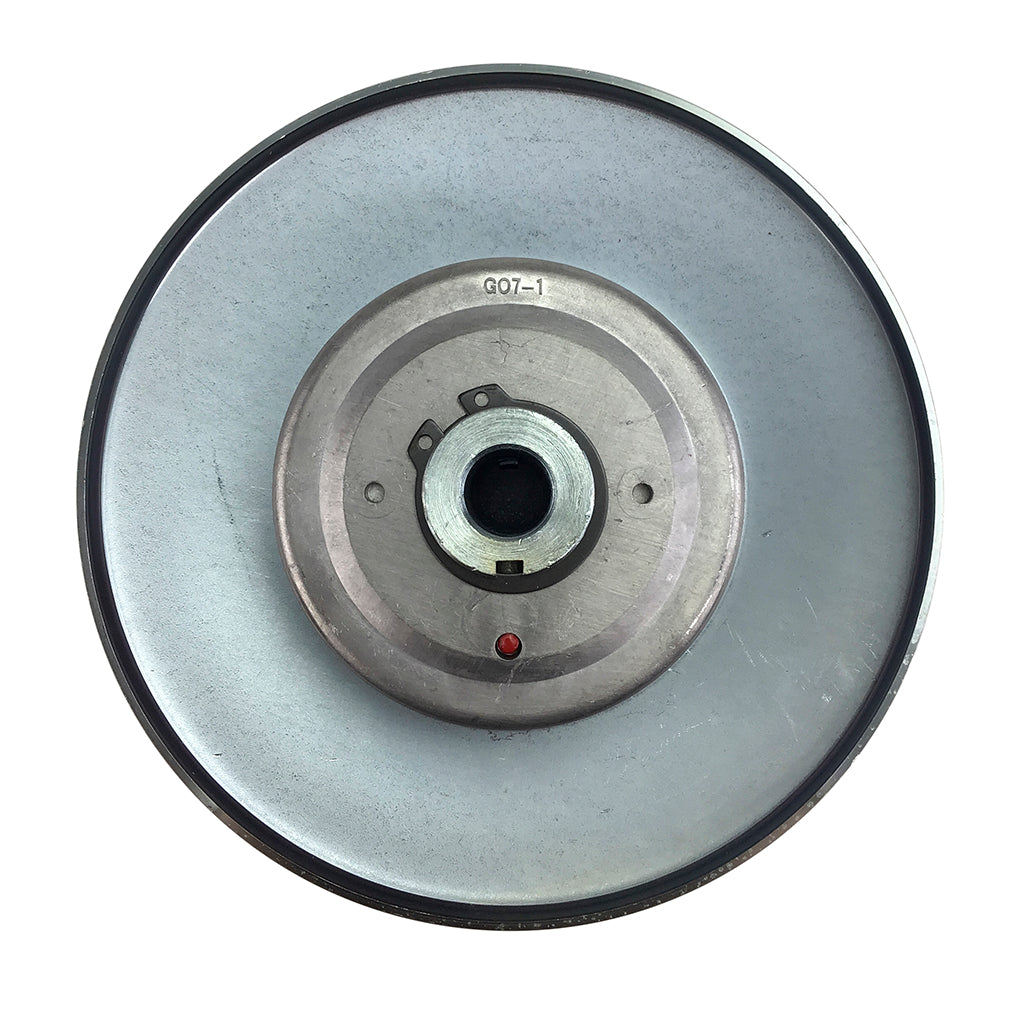

Drive clutch details:
- Outside diameter of bell: 144mm (5.68 in)
- 1.0 inch bore
- 1/4 inch key way
- Built in key
Known to fit most 8hp-18hp engines with 1.0 inch horizontal shafts with a 1/4 inch keyway. Check pictures and measurements to be sure this is the correct clutch for your application.
