Brake Rotor Disc - 190mm - 4 Bolt - Tao Tao DB20 Dirt Bike - Version 676 - VMC Chinese Parts

VMC Chinese Parts

Part number: 1724-BD110-676

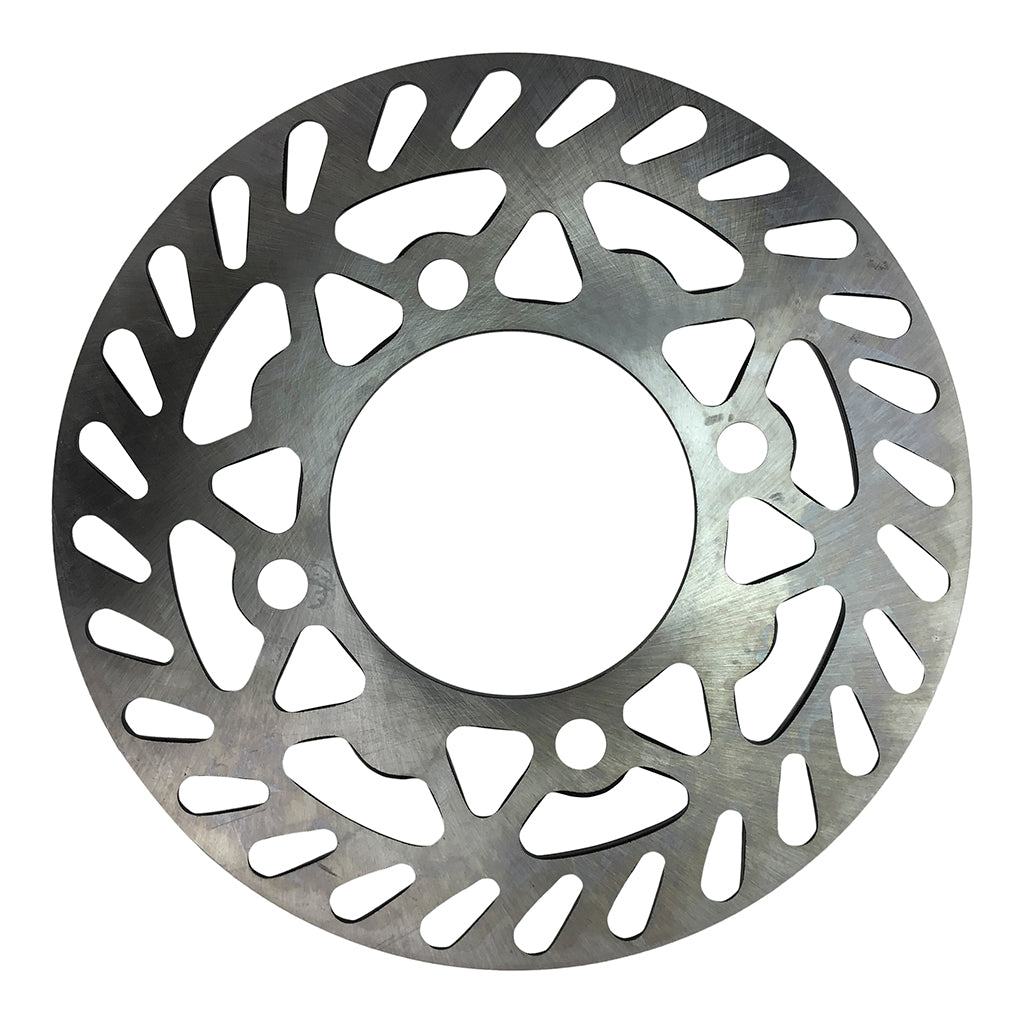

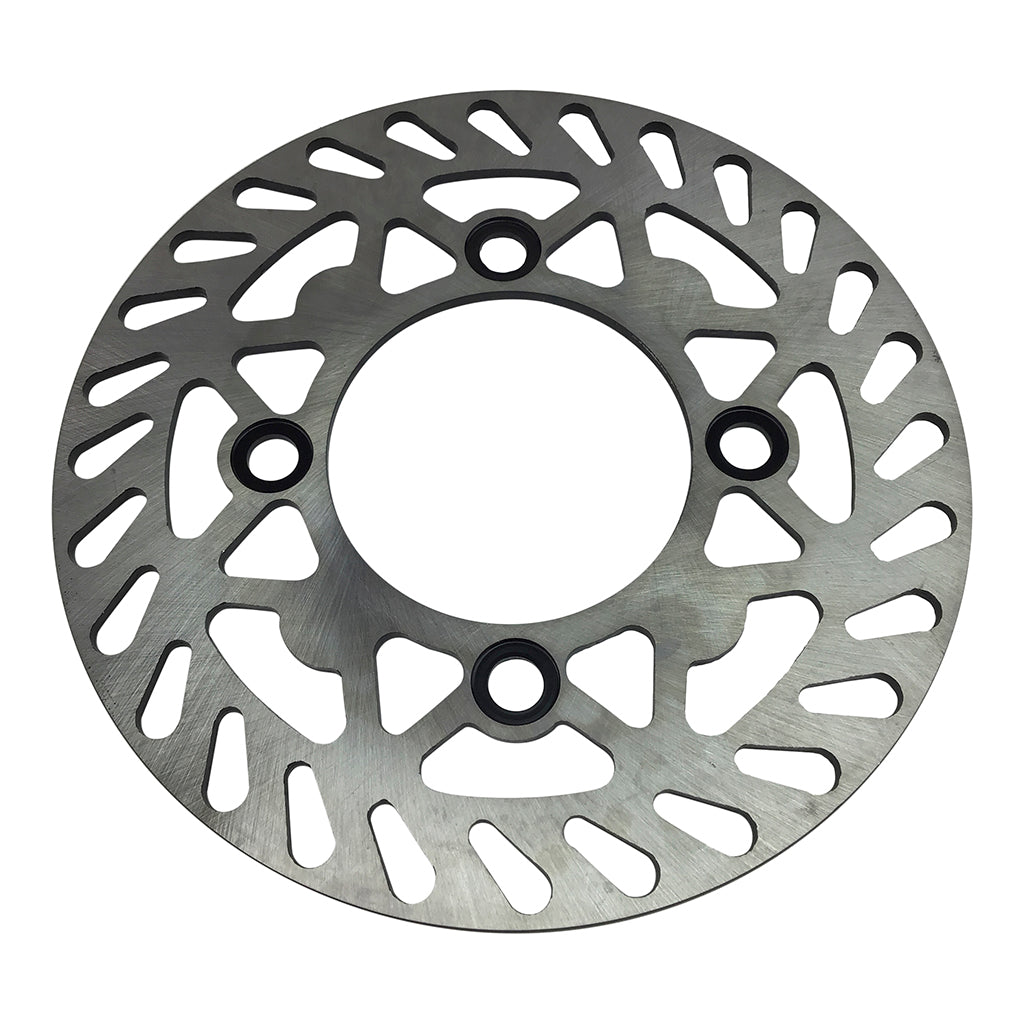

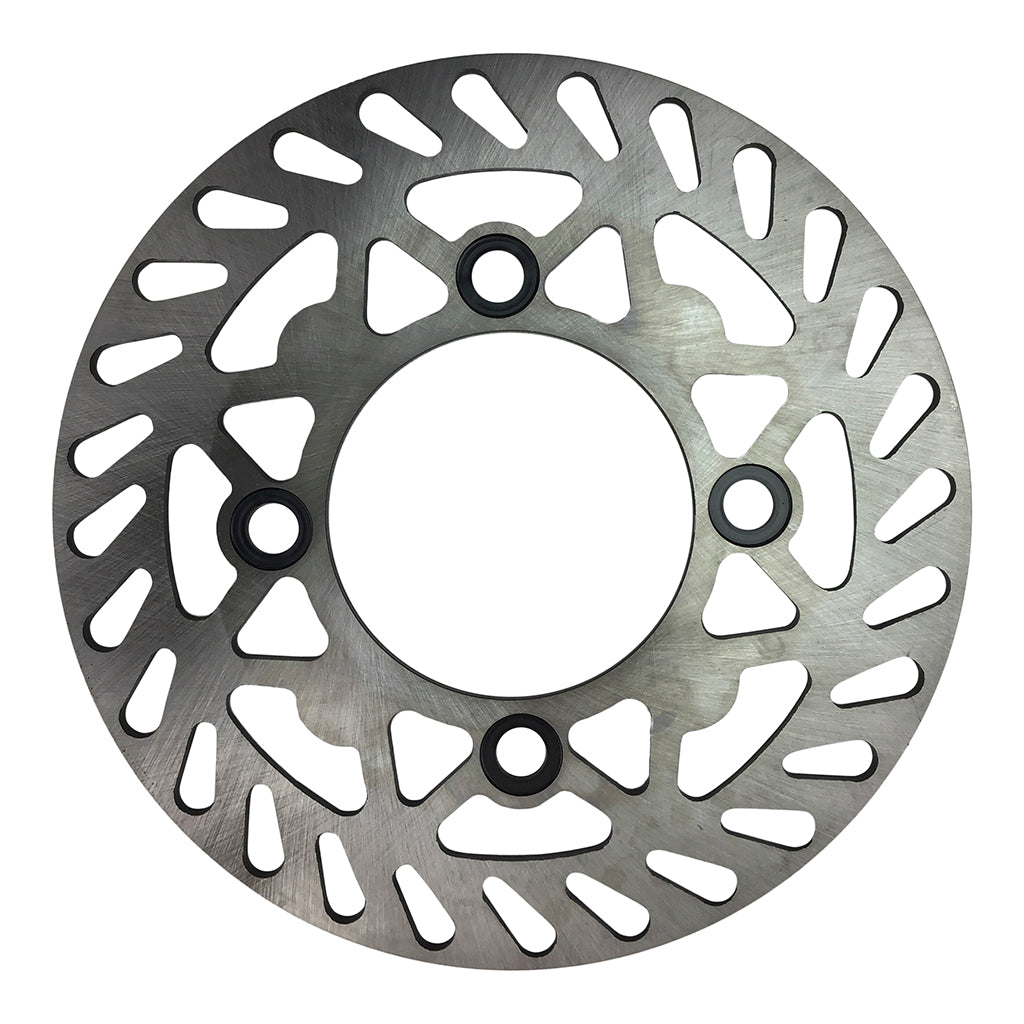

190mm OD Brake Rotor for Tao Tao DB20 Dirt Bike

Version - 676

Rotor details:

OD of disc: 190mm [7.5"]
ID of disc: 77mm [3.0"]
3.4mm [.14"] thick
4 bolt pattern with 10mm holes
Bolt holes are approximately 70mm [2.76"] center-to-center apart
117224

Known to fit the Tao Tao DB20 Dirt Bike. May fit other makes and model too. Please look at pictures and read description carefully before ordering.

Shipping details:

Do you need your rotor fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
