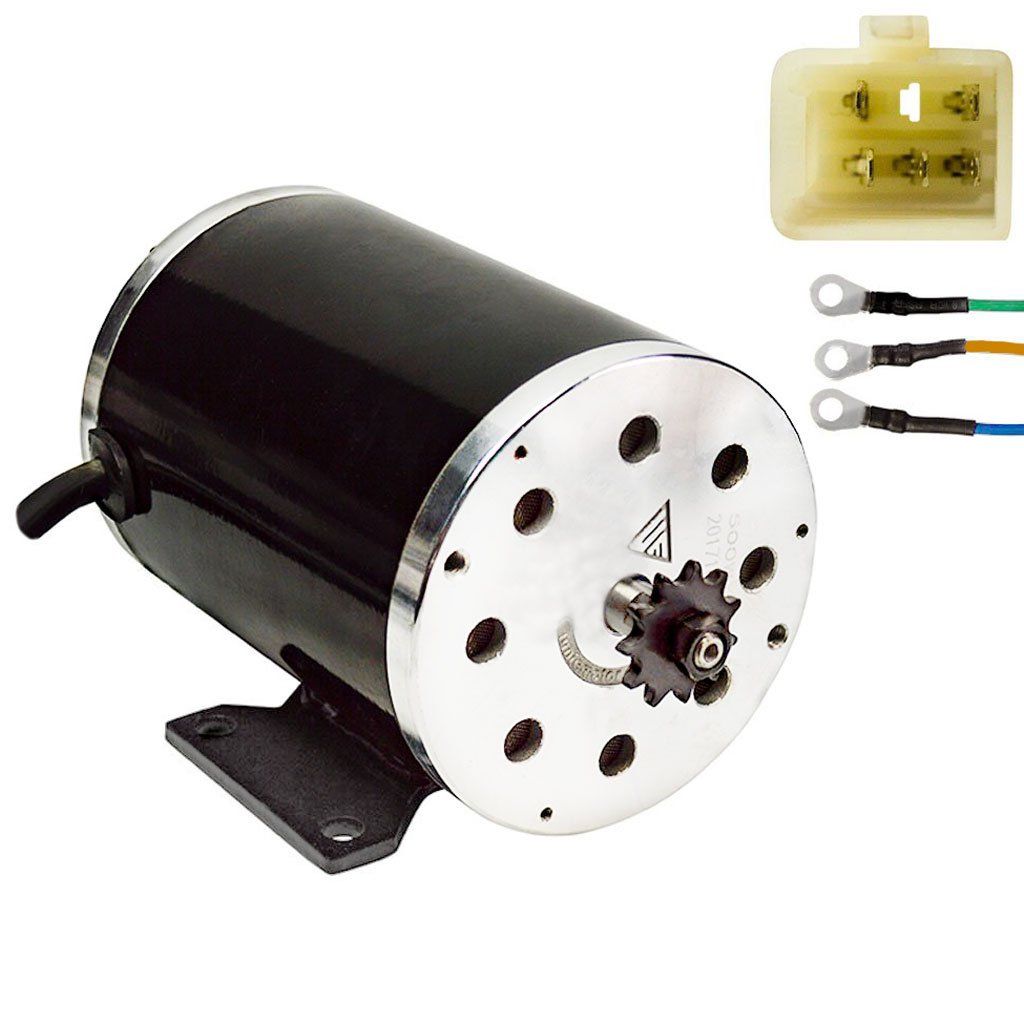

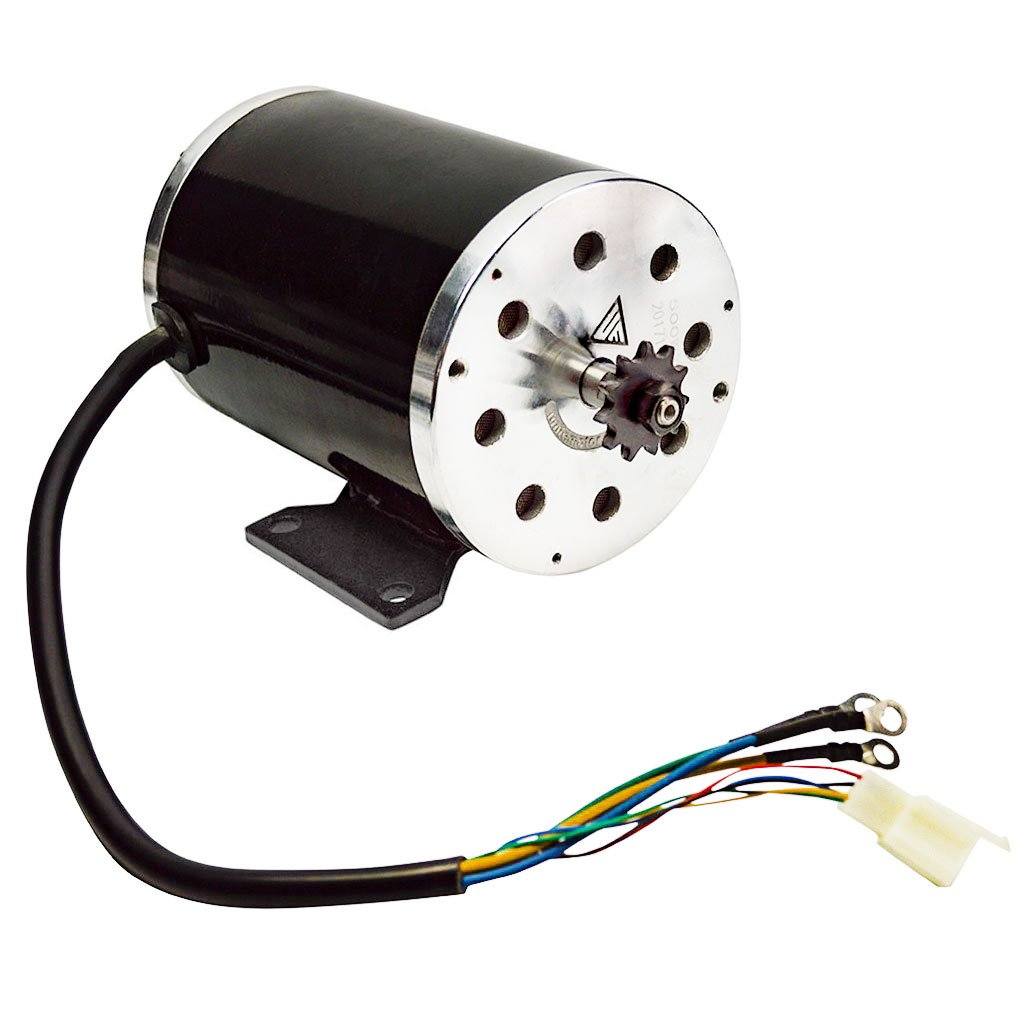

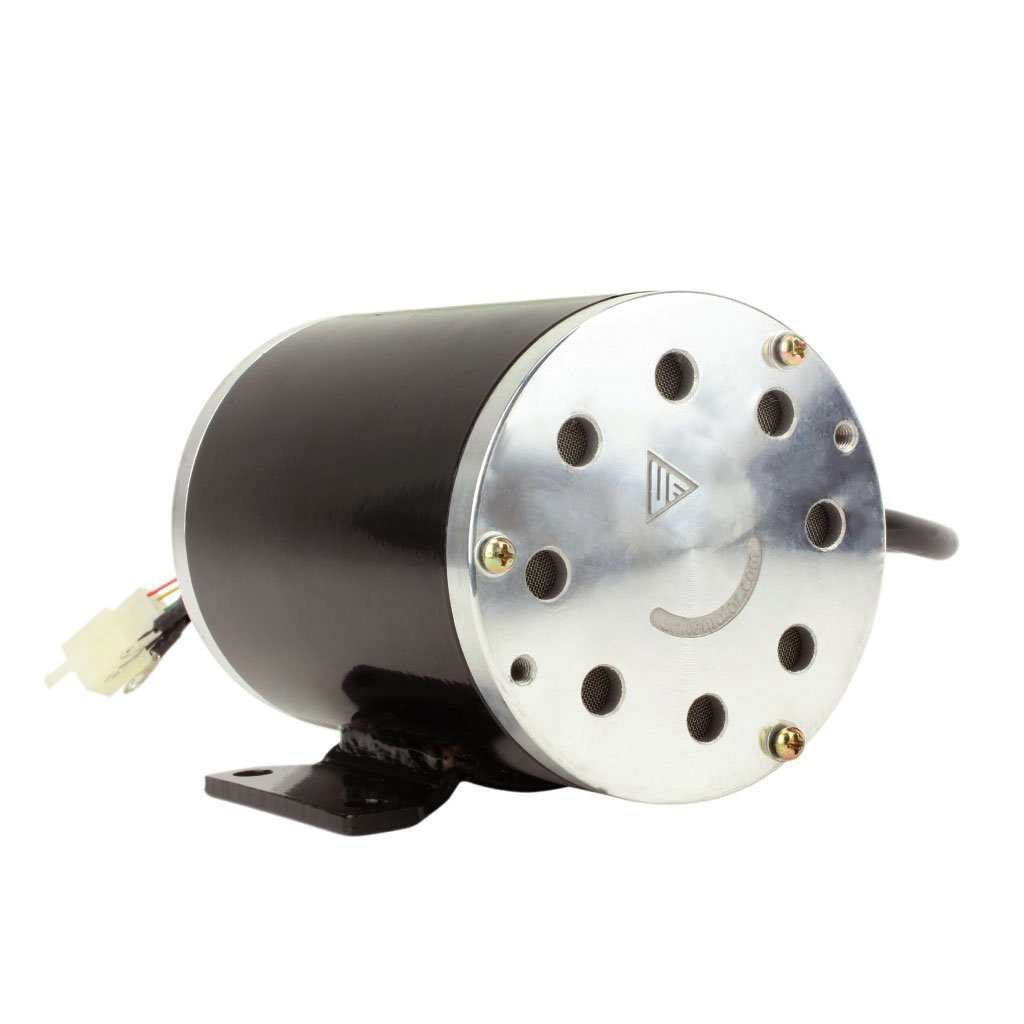

500w 36v Electric Motor for Tao Tao E1-500 and E2-500 Electric ATVs
This is the motor for the E1-500 and E2-500 electric atvs by Tao Tao. It also fits the Tao Tao Invader 500 electric dirt bike. It may fit other makes and models of electric atvs and scooters. Please use pictures and specs to determine fit.
- 500 watt
- 36 volt
- 11 tooth T8F #25 gear
- Gear is 31.5mm [1.24"] in diameter

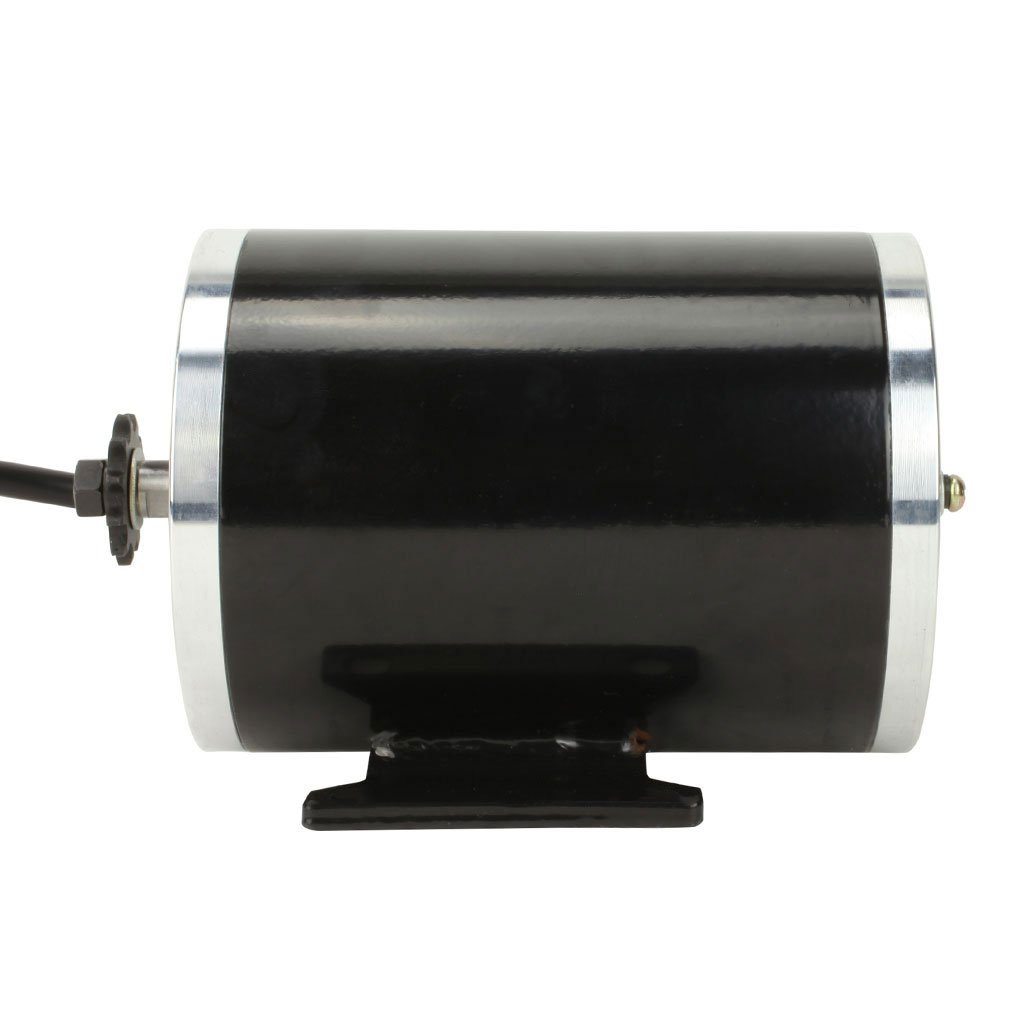

- Motor case is 145mm [5.7"] long

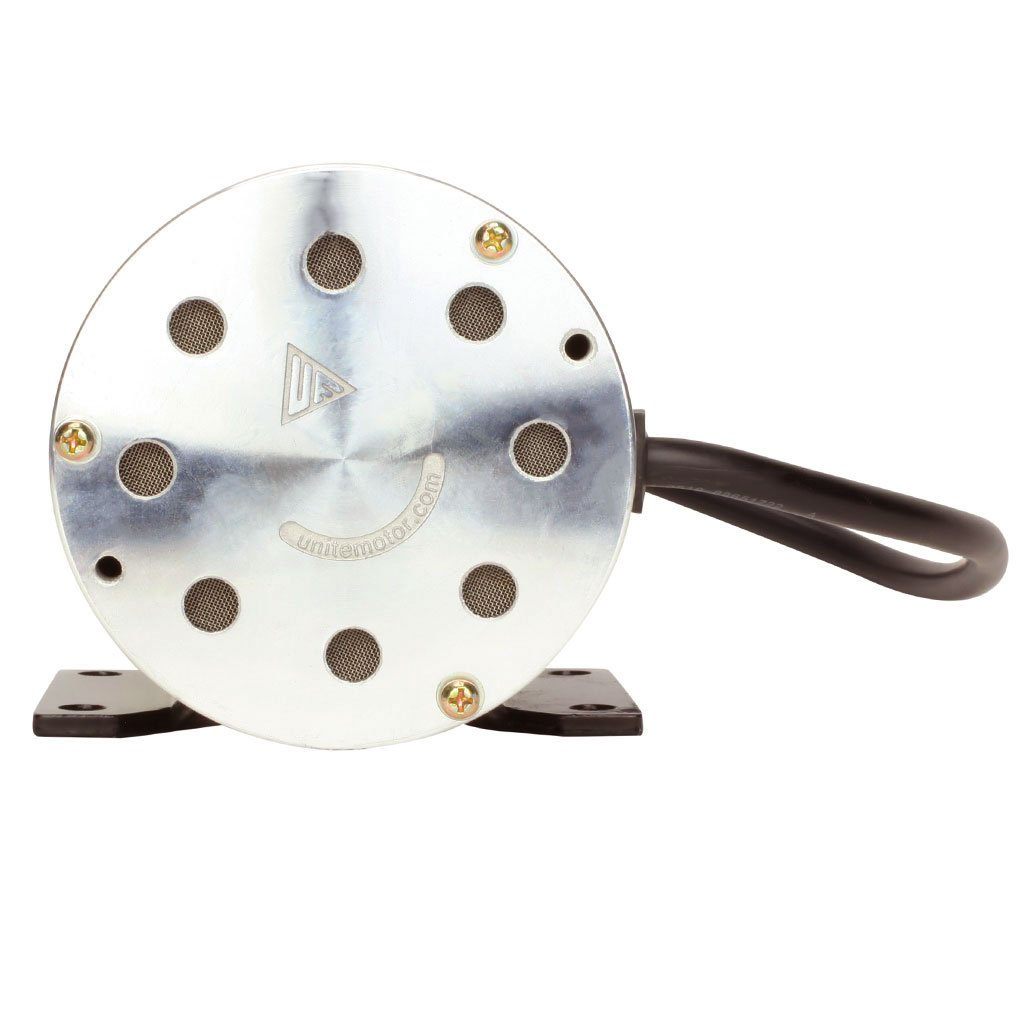

- Motor case diameter is 108mm [4.24"]

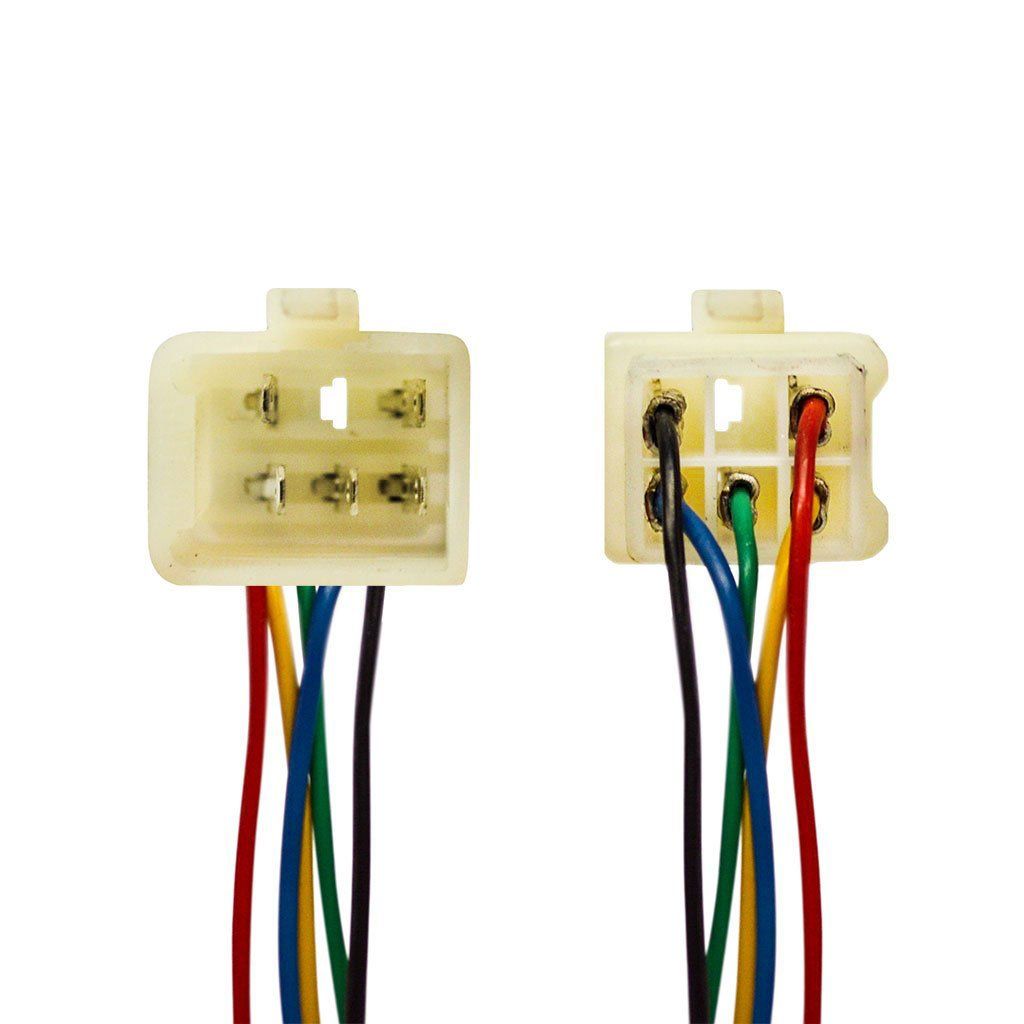

- Six position male plug with 5 wires

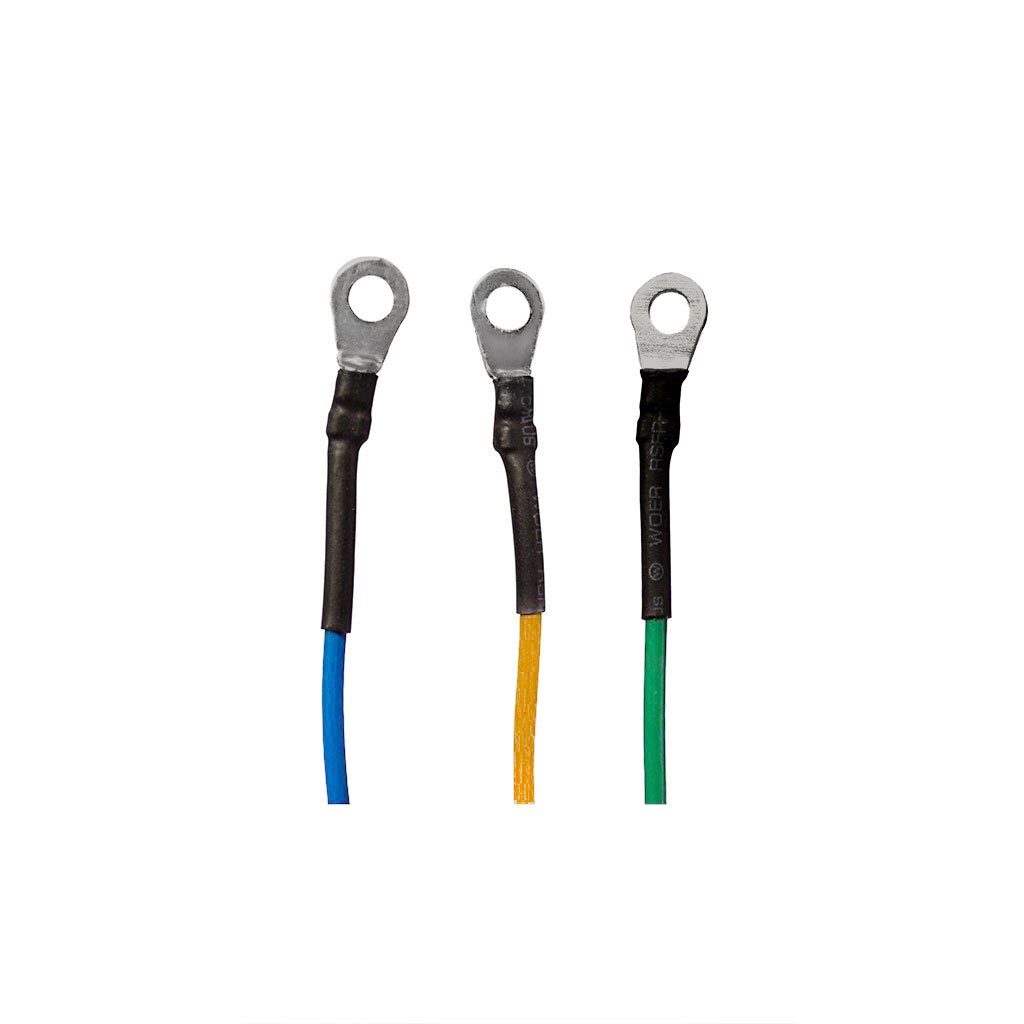

- Three single leads (yellow, blue, green) with eyelets
- Bracket has four bolt holes. The holes closest to each other are 56.4mm [2.22"] center-to-center apart. Across the bracket the holes are 102mm [4.0"] center-to-center apart.
