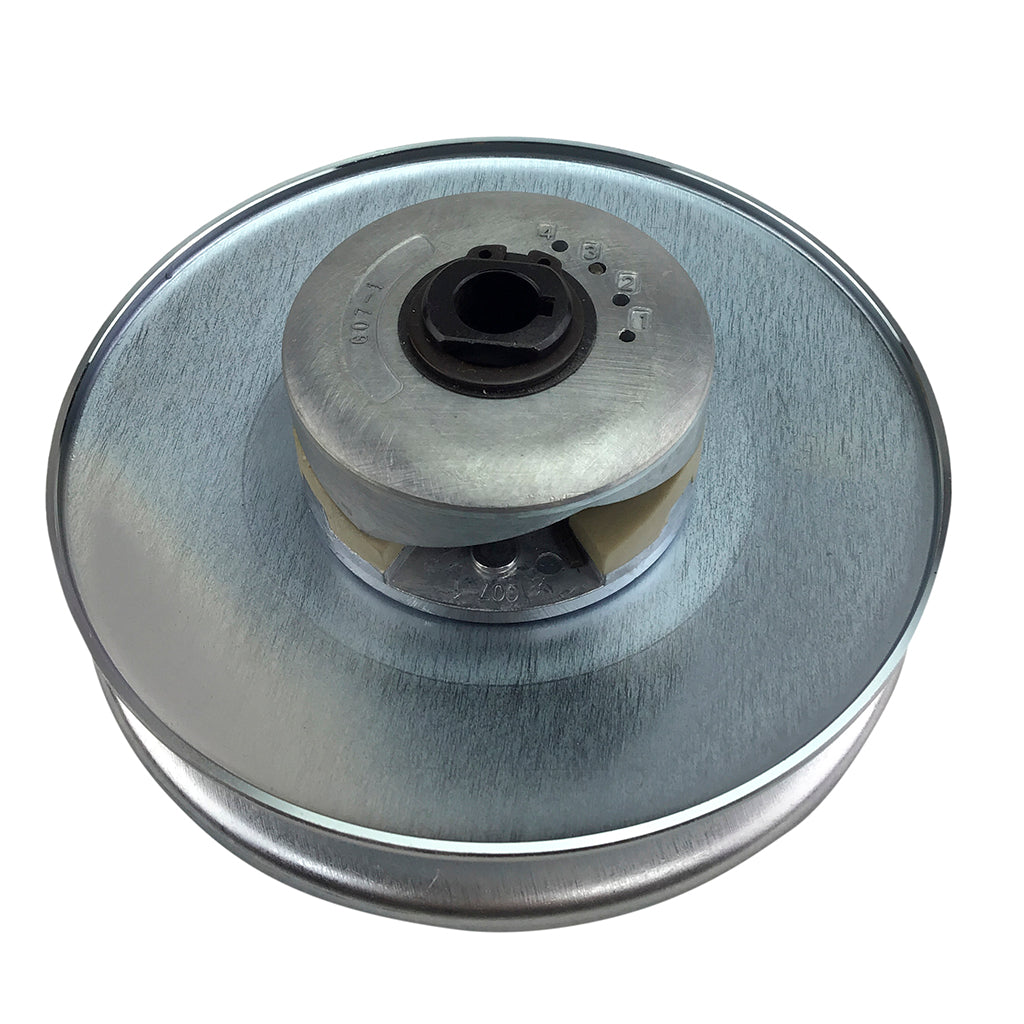

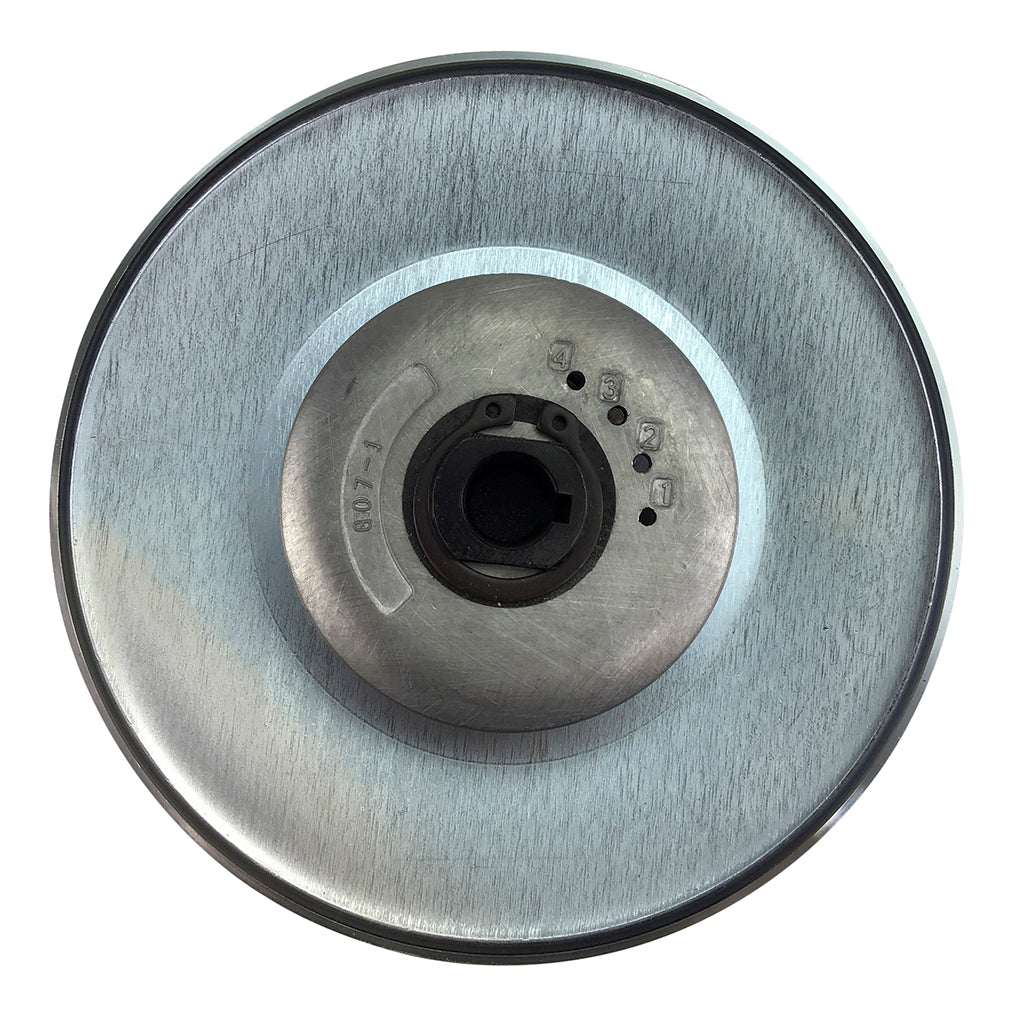

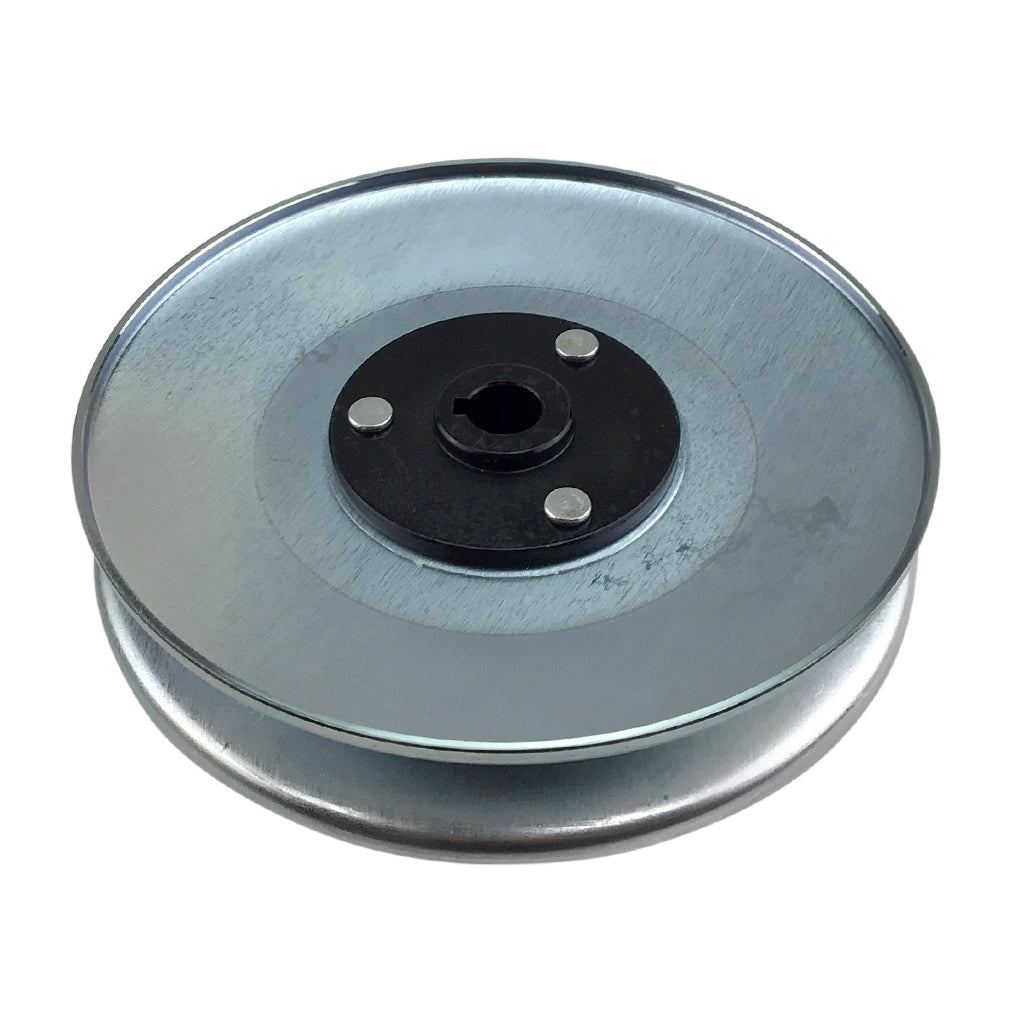

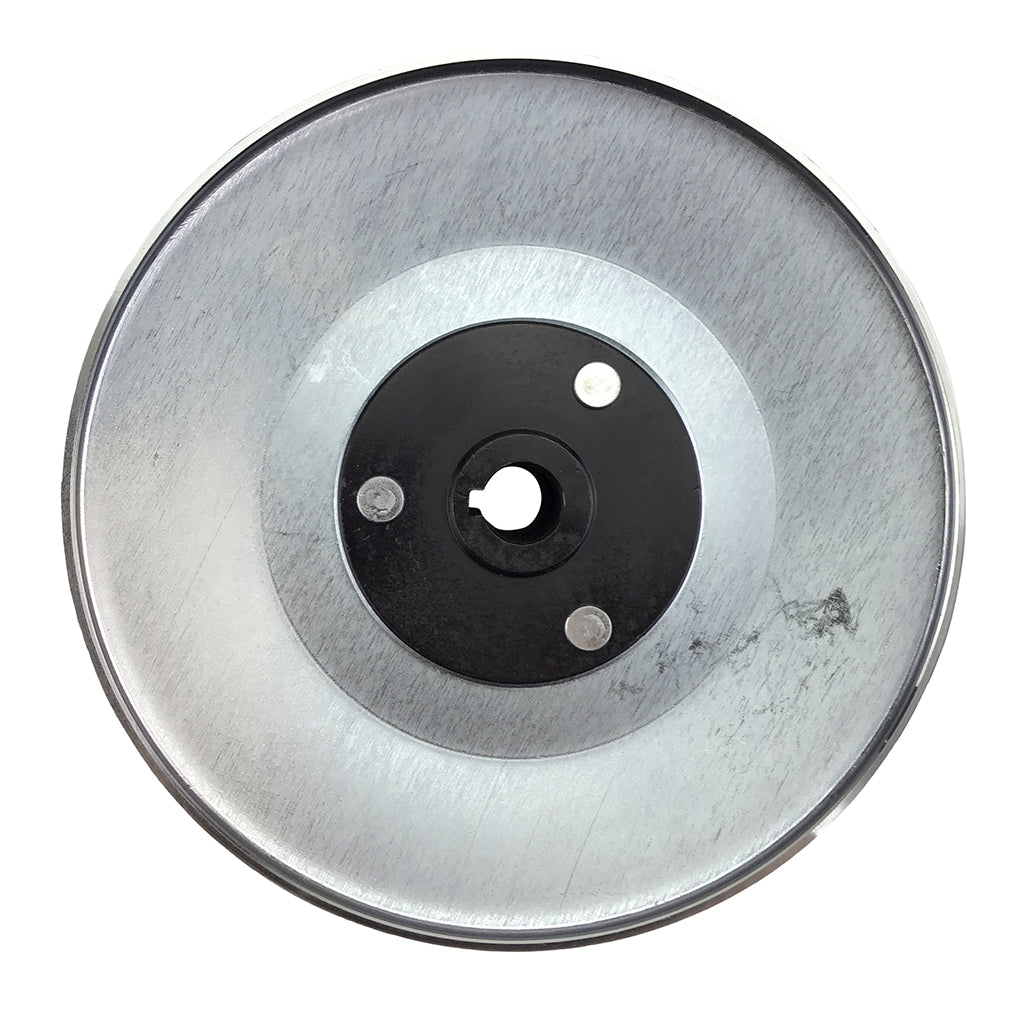

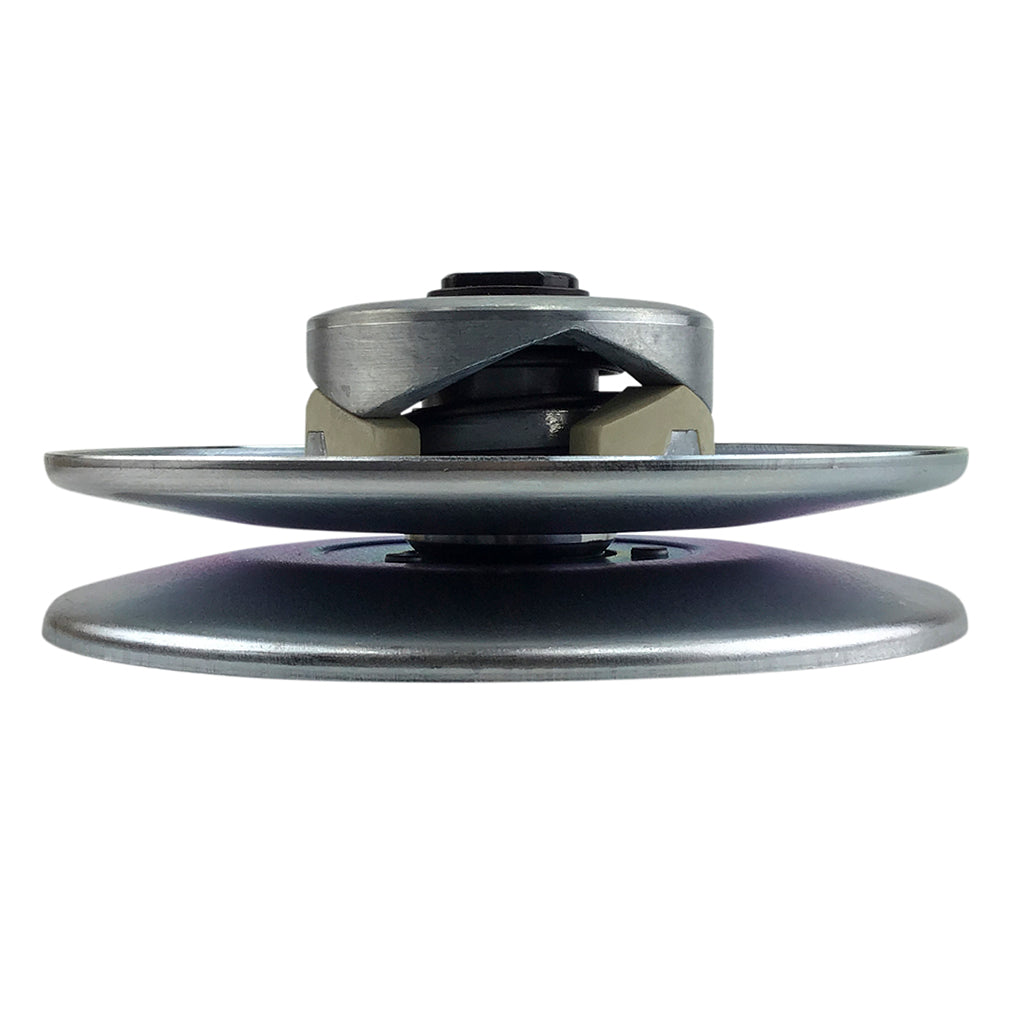

20 Series Torque Converter 7" Driven Pulley Assembly - 5/8" Bore
This 20 series driven clutch pulley assembly is the torque converter for atvs, utvs and go-karts with 5/8" shafts. It fits 3hp-8hp engines with horizontal shafts.
Driven clutch details:
- Overall OD of pulley: 183mm [7.2"]
- Symmetrical belt
- 5/8" Bore
- 3/16 key way
- Replaces Comet and Manco
Do you have a 20 series or 30 series torque converter?
20 series pulleys and belts are shaped like a "V". They use a belt that is cut at the same angle on both sides. 20 and 30 series torque converters are the same size, but the belt on the 30 series unit is wedge shaped. The pulley will have a flat side. Please make sure you identify which torque converter you have before ordering.
