VMC Chinese Parts

Part number: 8000-SR001-31356

1

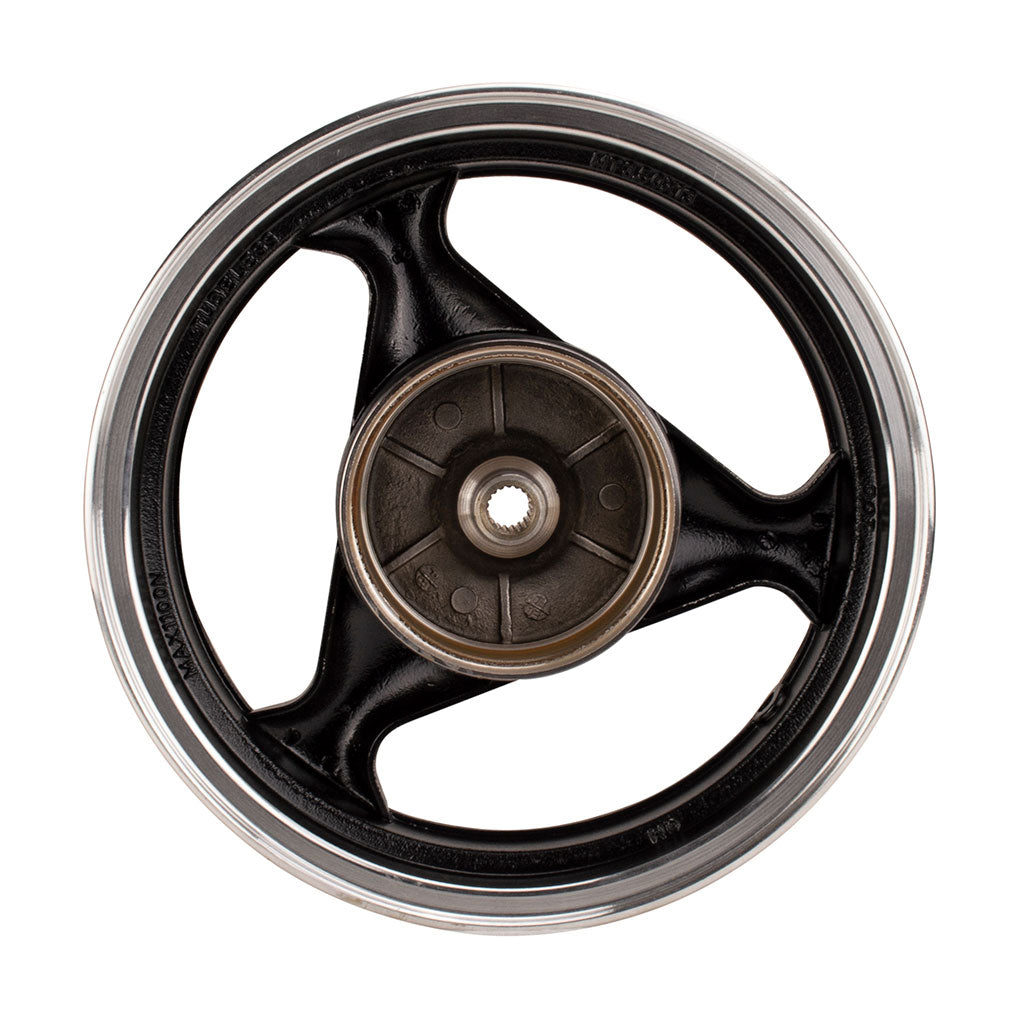

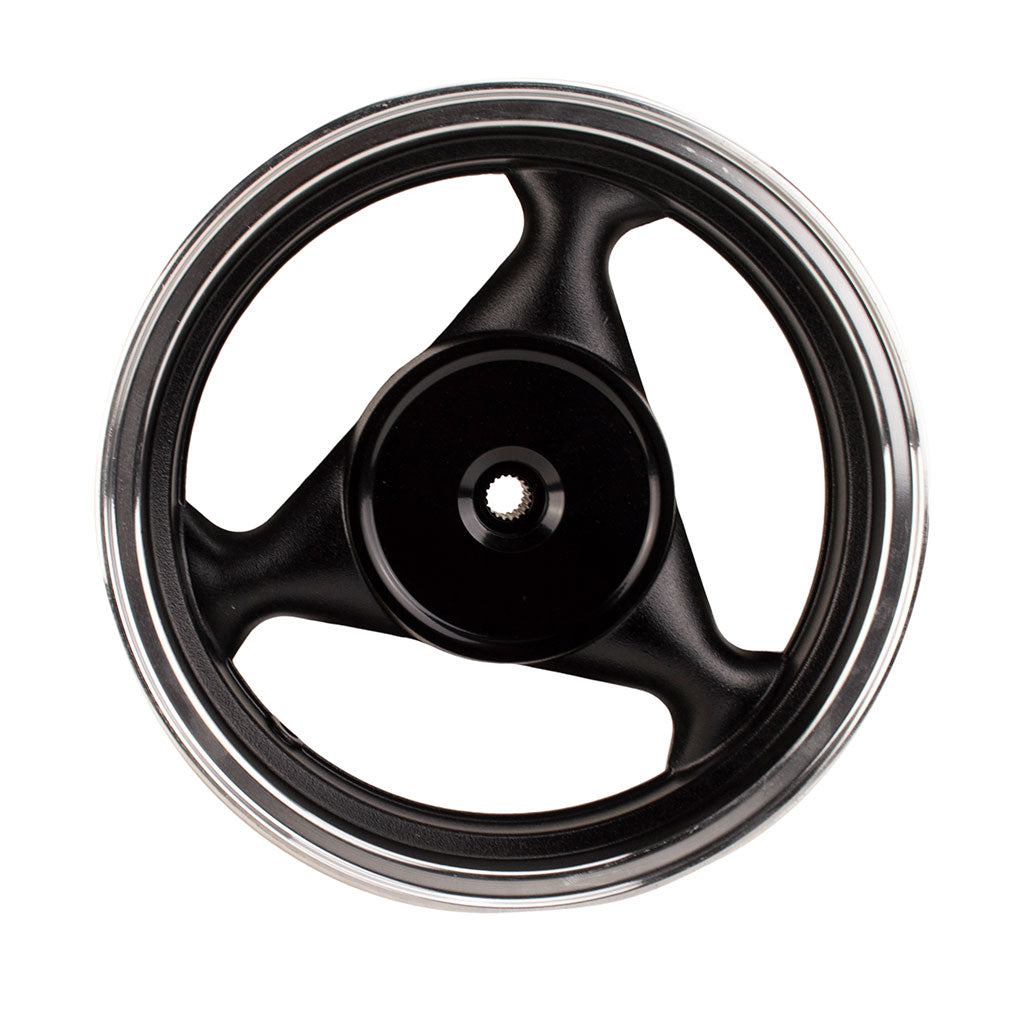

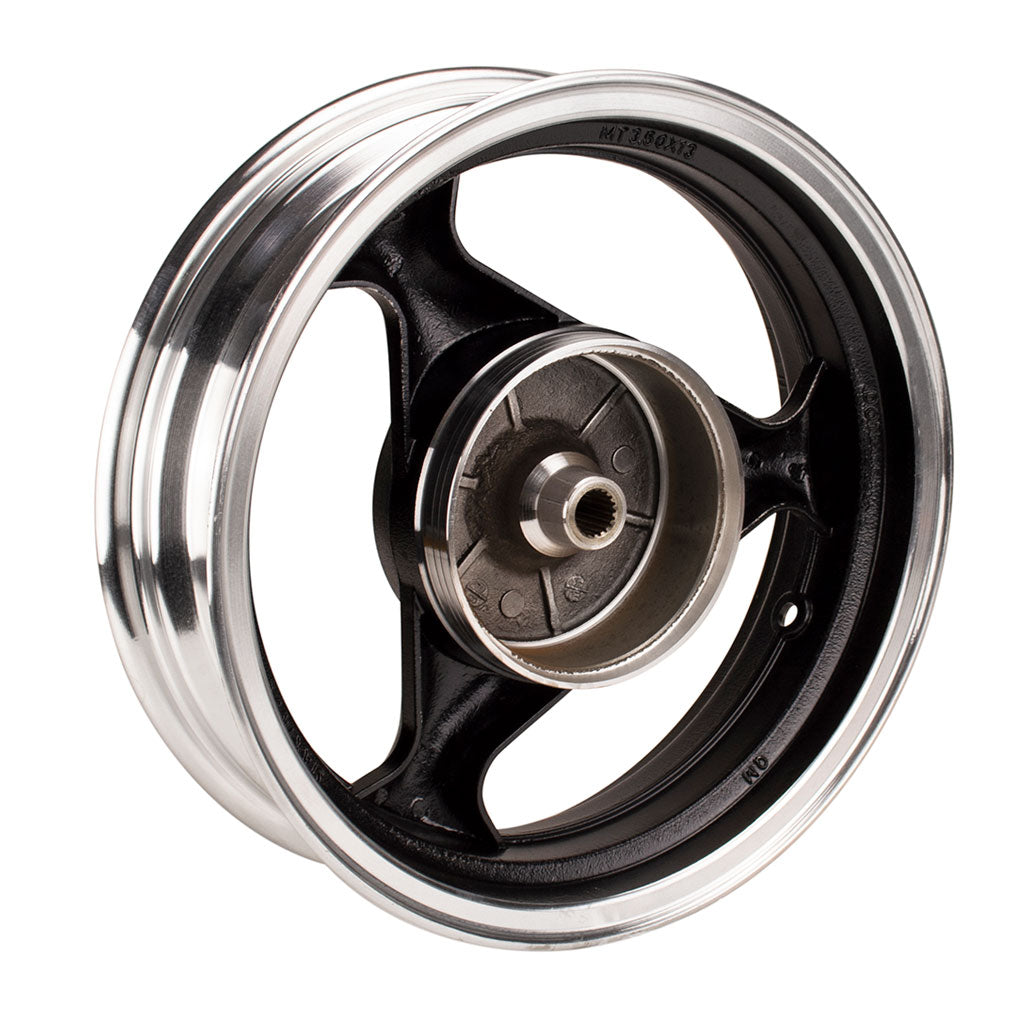

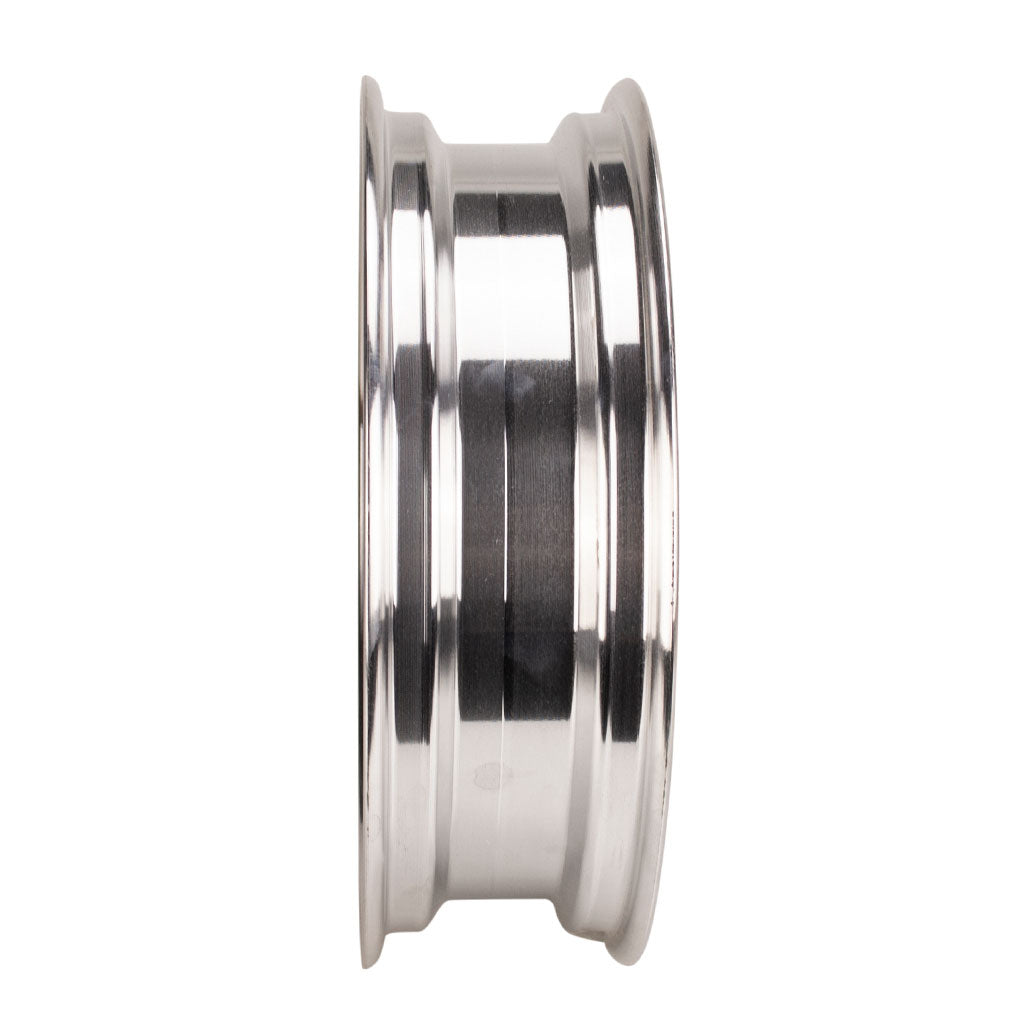

13" Rear Rim for Scooter

Rear rim wheel for scooter. Please use detailed measurements and pictures to help you get the correct rim for your machine.

Wheel details:

Black and polished steel
Black painted center
3 spoke
Overall width of rim: 10.8cm [4.27"]
Overall rim diameter: approx 35.87cm [14.125"]
ID of drum: 13cm [5.14"]
OD of drum: 14.56cm [5.73"]
Uses 125mm brake shoes
Center hole for shaft diameter: 19.95mm [.785"]
19 tooth spline/shaft hole
Silver/Black
Tire size to match: 130/60-13.

Customer Reviews

4.0 Based on 1 Reviews

5 ★

0%

0

4 ★

100%

1

3 ★

0%

0

2 ★

0%

0

1 ★

0%

0

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

JL

10/04/2020

James L.

United States

Back rim for 150cc scooter

Fit well shipped in really good time.THANK YOU VMC

13" Rear Rim (3.50x13) - 19 Spline

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!
