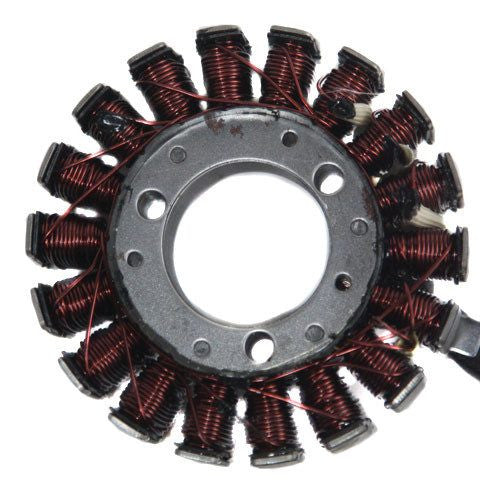

Chinese 18 Coil Stator Magneto for Linhai 250cc, 260cc, 300cc engines.
Version 26
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Go Karts and Scooters. The stator recharges the battery while the machine is in use, like an alternator in a car. This stator fits 250cc, 260cc and 300cc models. Known to fit Linhai 300cc, Ice Bear 300, & more.
Stator description:
- 18 coil [NONE wrapped]
- 3 wires - coming from coils
- 3 wire plug with 3 wires
- 3 bolt mounting
- Pick up trigger with wires leading to a 2-wire plug
- Center hole measurement: 34.8mm [1.37"]
- Overall measurement: 93mm [3.67"]
- Single coil height: 25.2mm [.99"]
- Mounting measurement: center-to-center diagonally 38.2mm [1.5"]
- Compatible with 260cc and 300cc 4-stroke
Shipping details:
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
