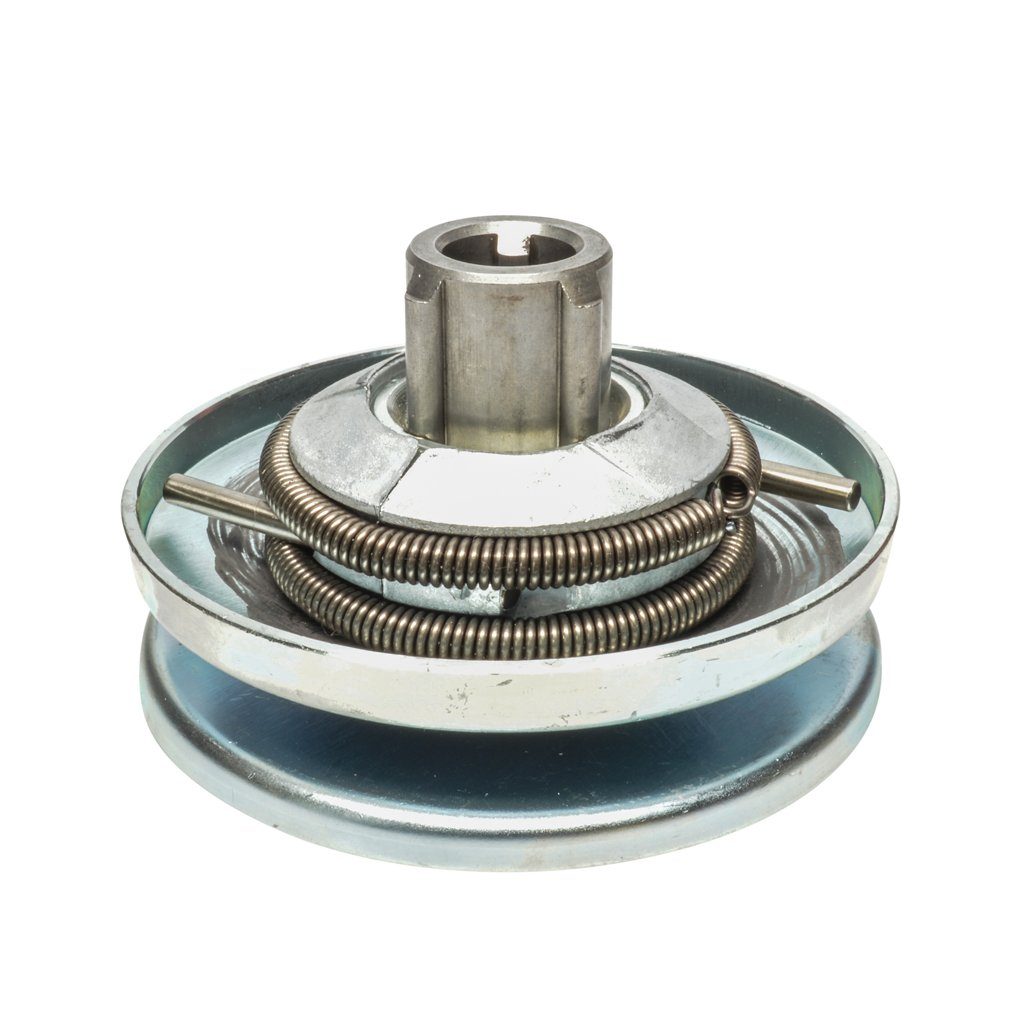

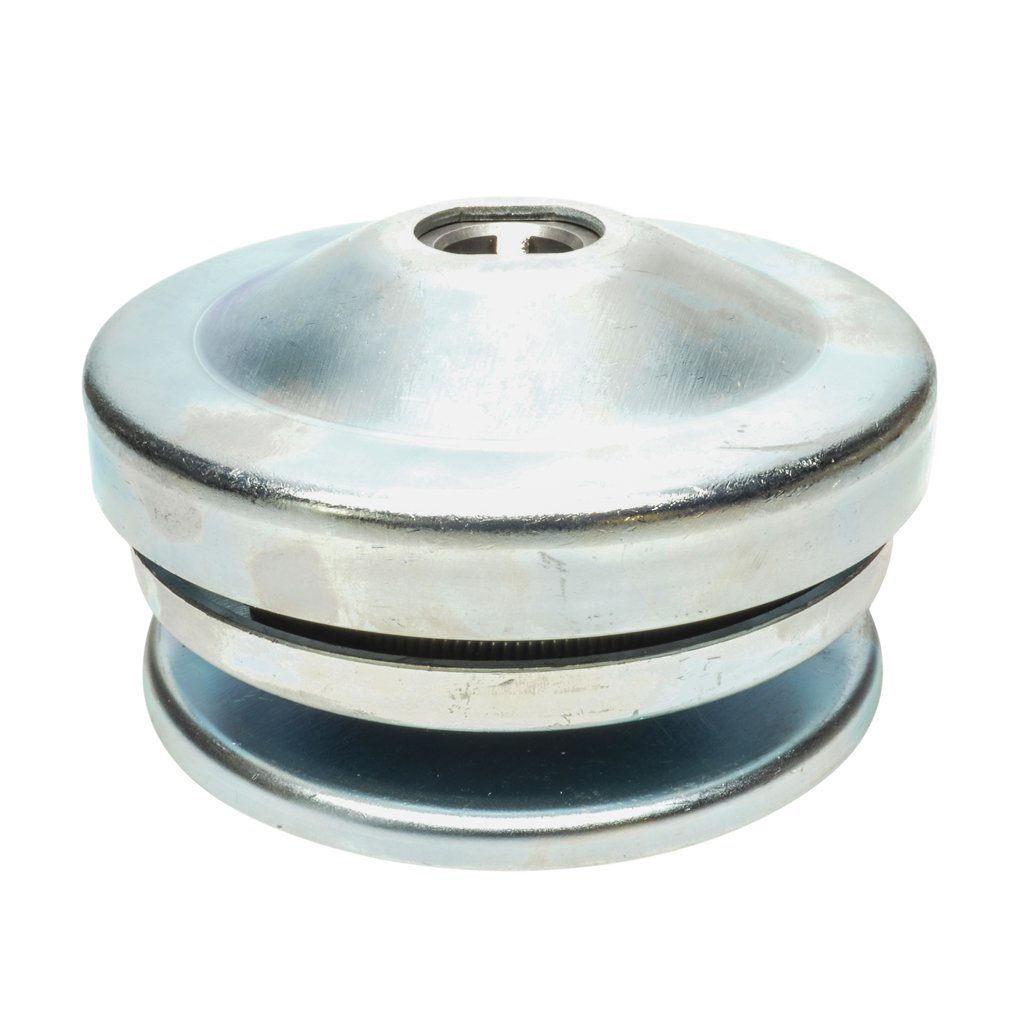

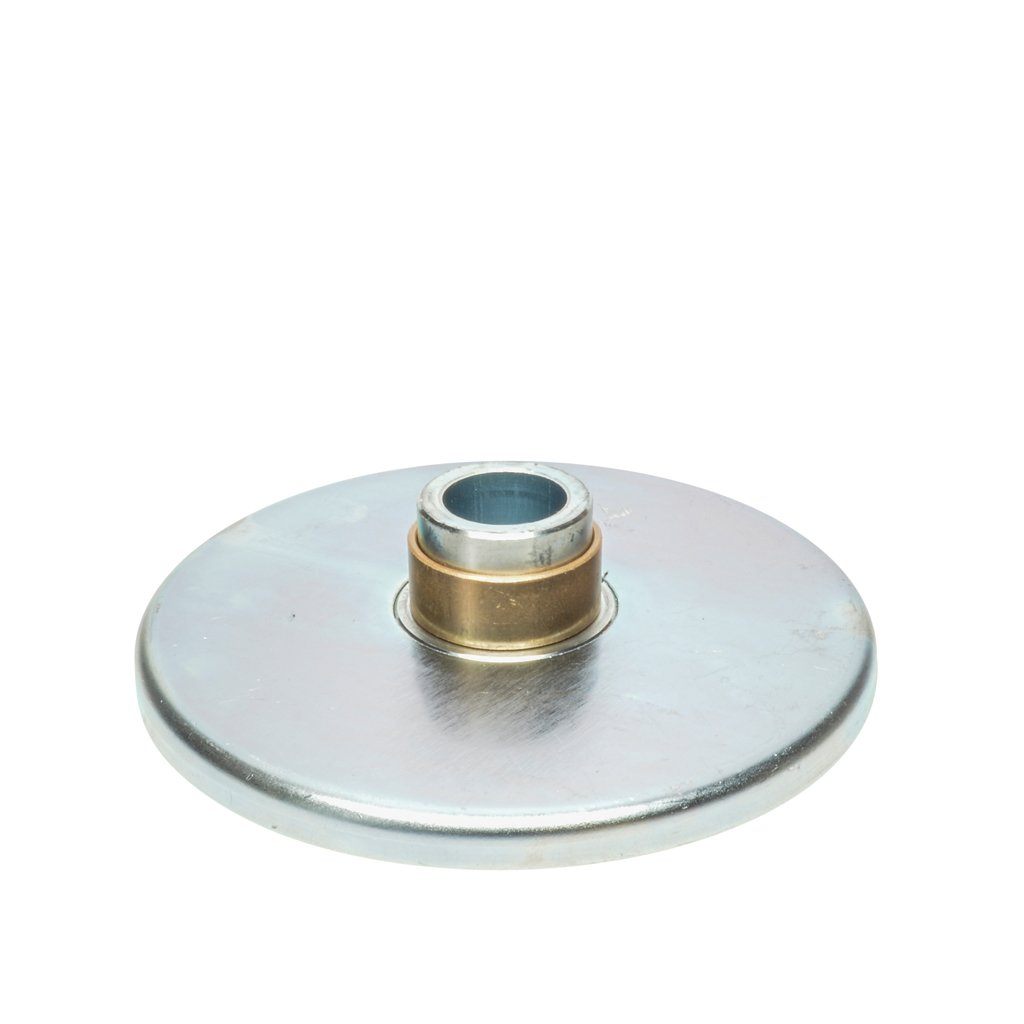

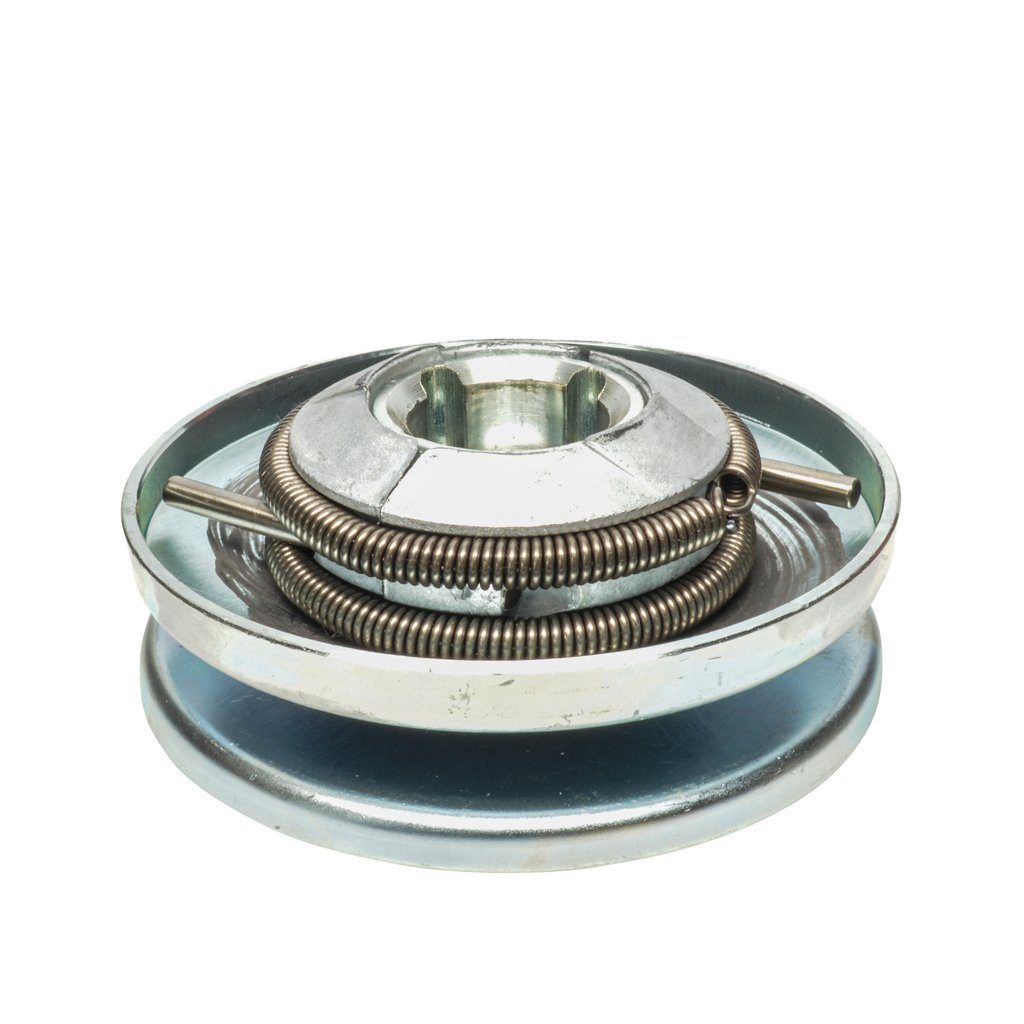

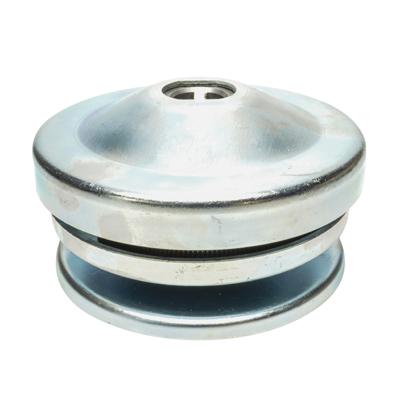

Torque Converter Clutch Driver Assembly - 30 Series 3/4" Bore for Go-Karts and Mini Bikes
Assembly is a torque converter clutch for go-karts and mini bikes.
Driver clutch details:
- Overall OD of pulley: 116mm [4.6"]
- Overall OD if bell:125mm [4.9"]
- 3/4" Bore
- 3/16" key way
- Uses a 3/4" top width belt
- 219552, 219552A, 5957, Q43201W
- 9500001080G000 9.500.010
Known to fit 6.5hp engines with 3/4" shafts. Check pictures and measurements to be sure this is the correct clutch for your application.
Fits the TrailMaster Blazer 200 and MID XRX go-karts.
Do you have a 20 series or 30 series torque converter?
20 series pulleys and belts are shaped like a "V". They use a belt that is cut at the same angle on both sides. 20 and 30 series torque converters are the same size, but the belt on the 30 series unit is wedge shaped. The pulley will have a flat side. Please make sure you identify which torque converter you have before ordering.
Do you need your torque converter parts fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
