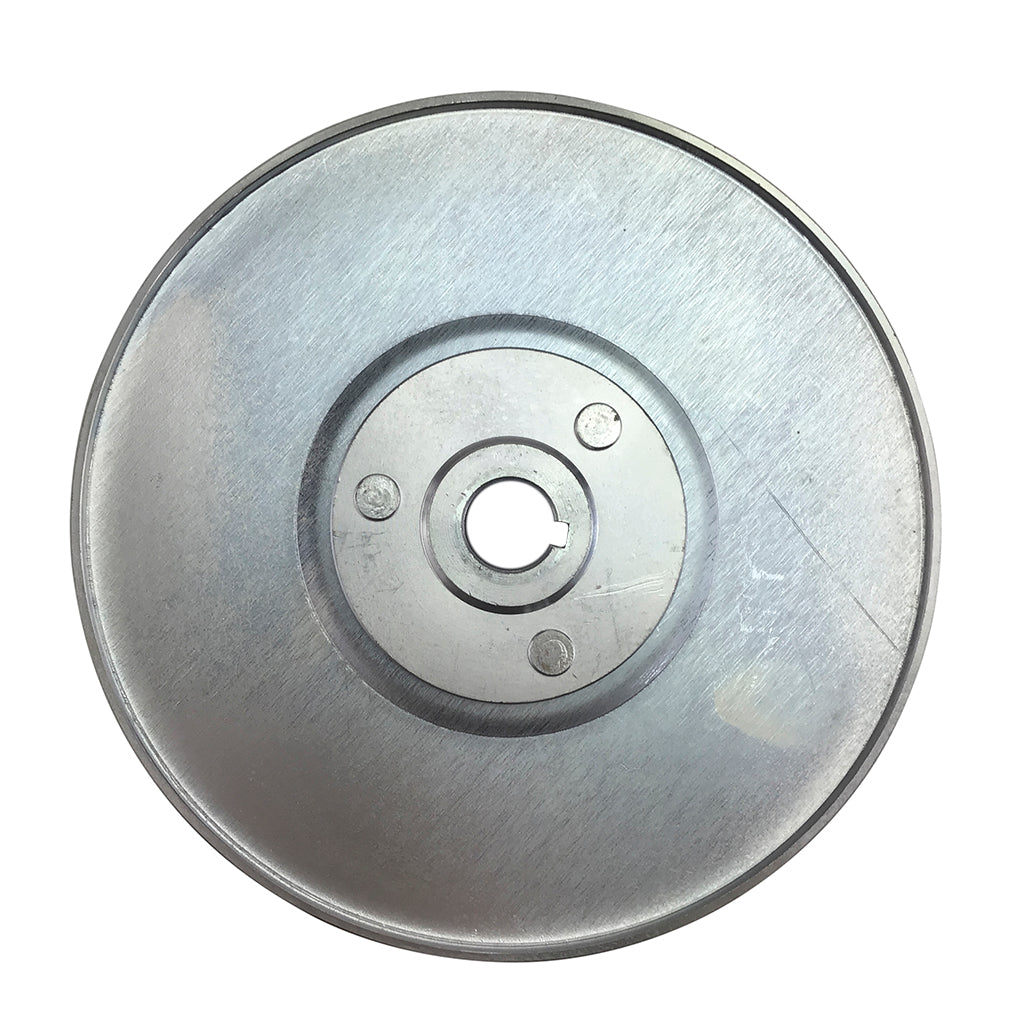

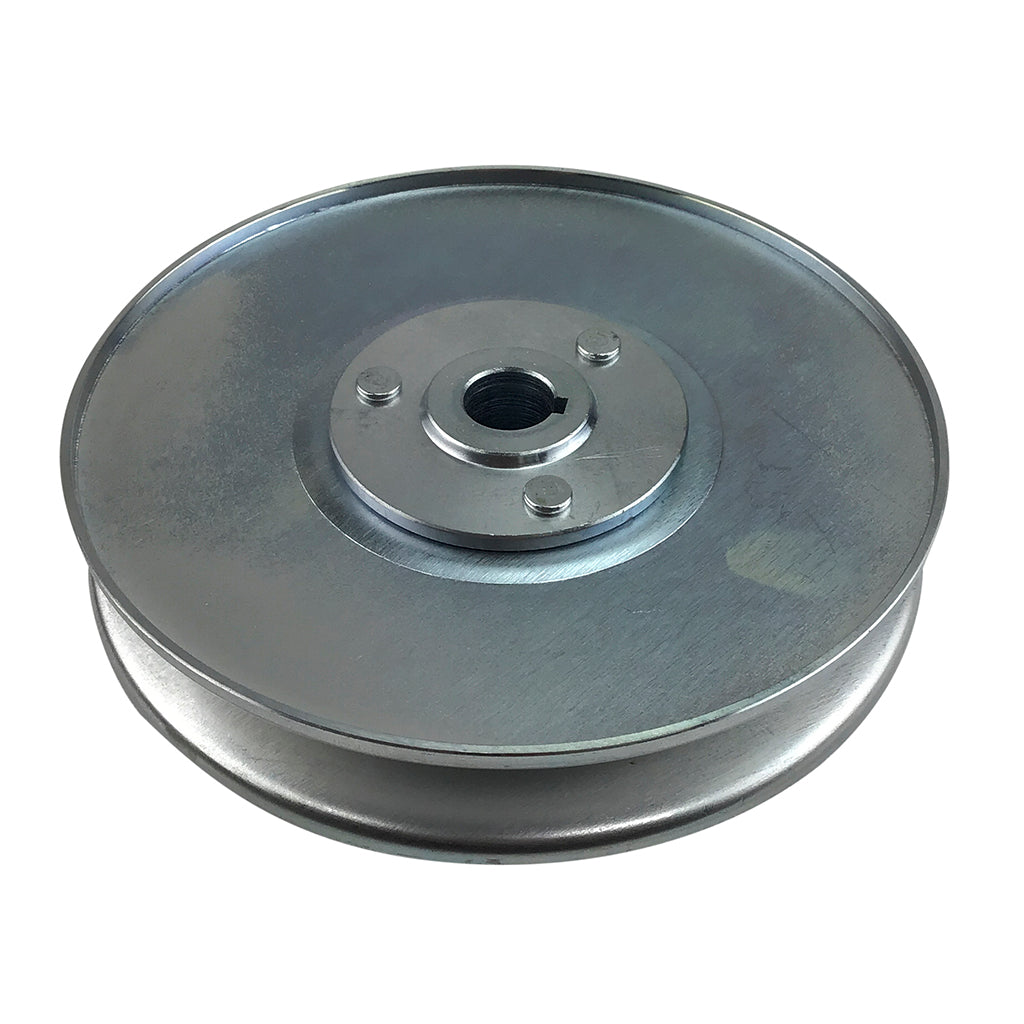

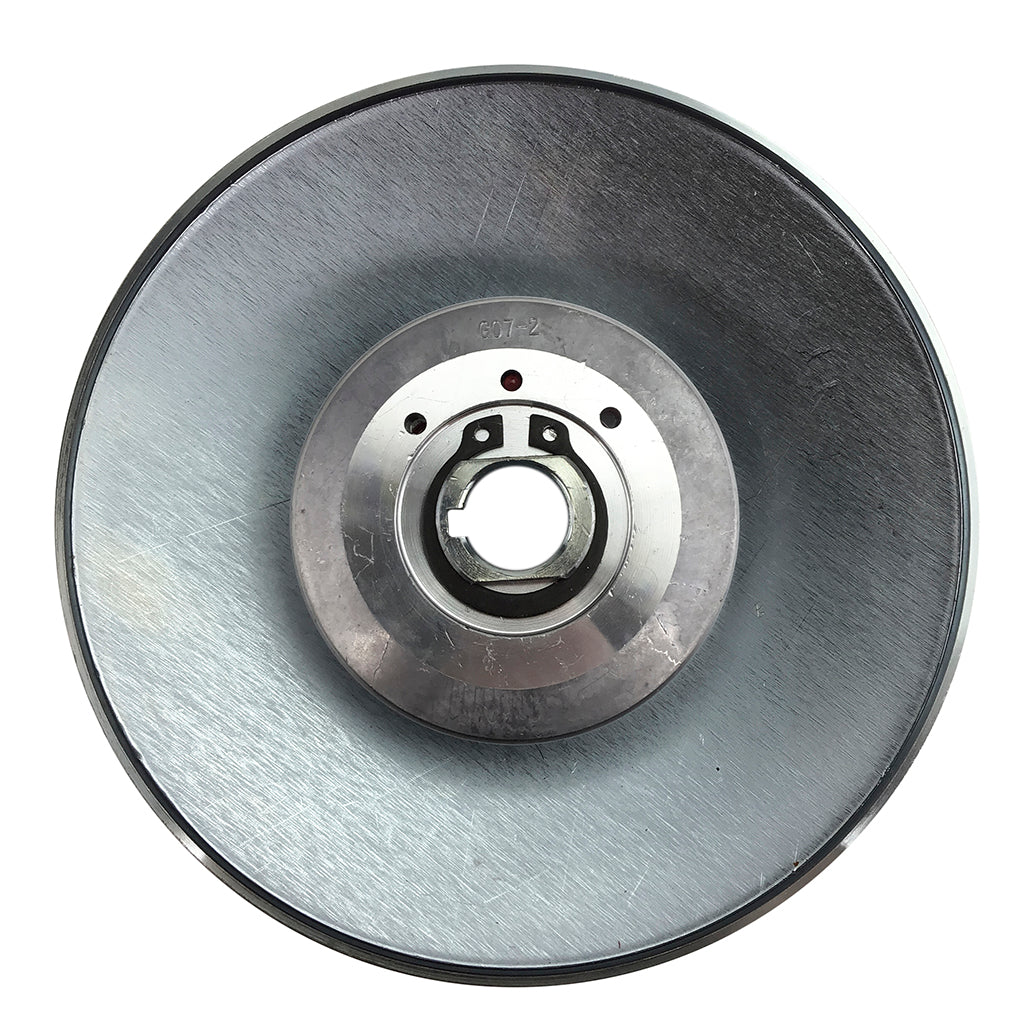

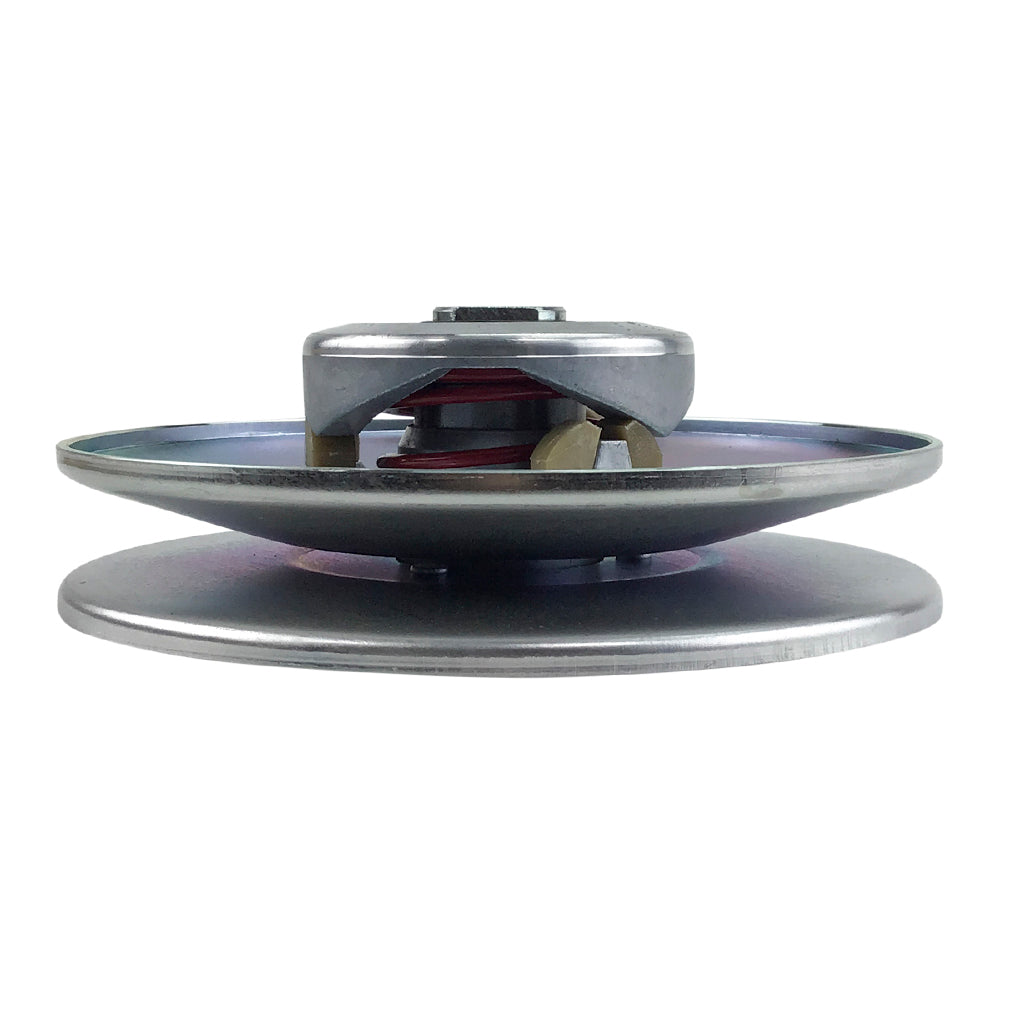

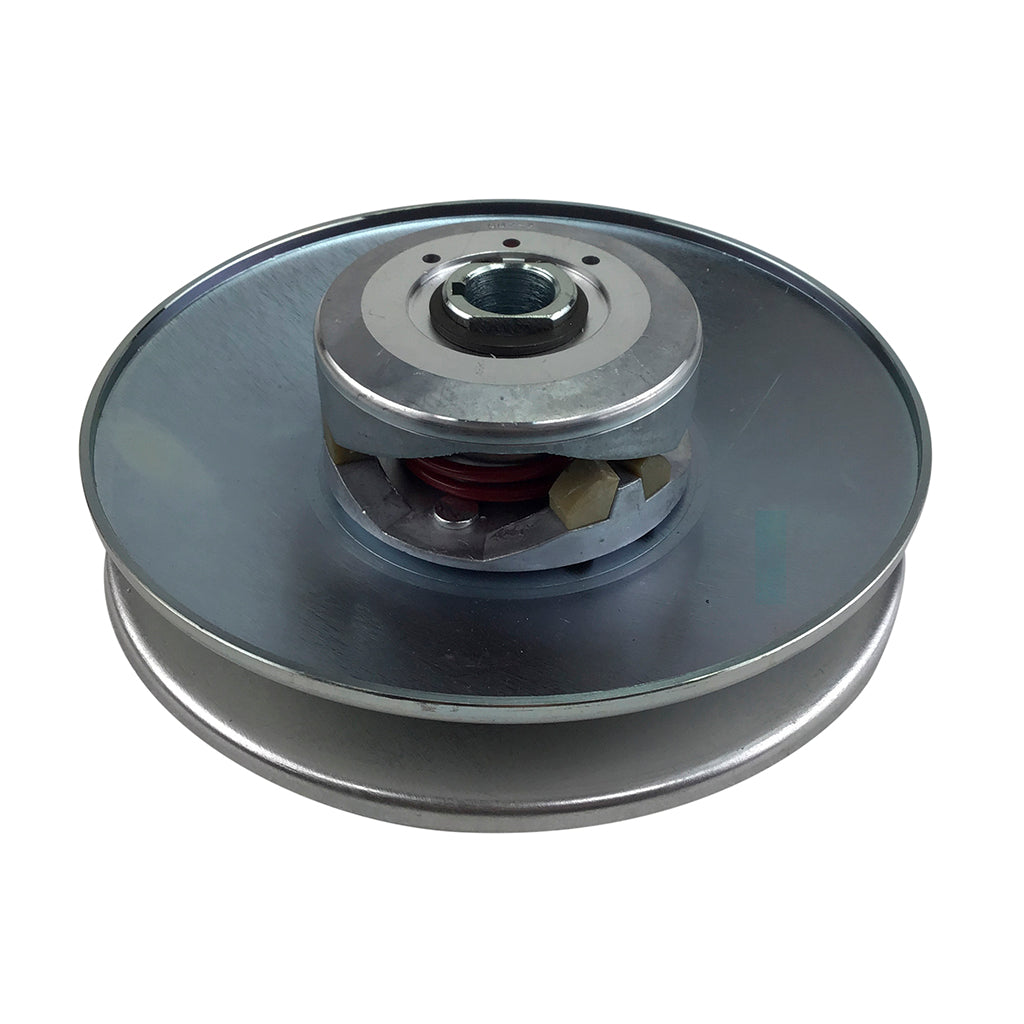

30 Series Torque Converter 7" Driven Pulley Assembly - 3/4" Bore
This 30 series driven clutch pulley assembly is the torque converter for atvs, utvs and go-karts with 3/4" shafts.
Driven clutch details:
- Overall OD of pulley: 183mm [7.2"]
- 3/4" Bore
- 3/16" key way
- Red tension spring
- Replaces Comet and Manco
Known to fit 8hp-18hp engines with 3/4" horizontal shafts. Check pictures and measurements to be sure this is the correct clutch for your application.
Do you have a 20 series or 30 series torque converter?
20 series pulleys and belts are shaped like a "V". They use a belt that is cut at the same angle on both sides. 20 and 30 series torque converters are the same size, but the belt on the 30 series unit is wedge shaped. The pulley will have a flat side. Please make sure you identify which torque converter you have before ordering.
Do you need your torque converter parts fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
