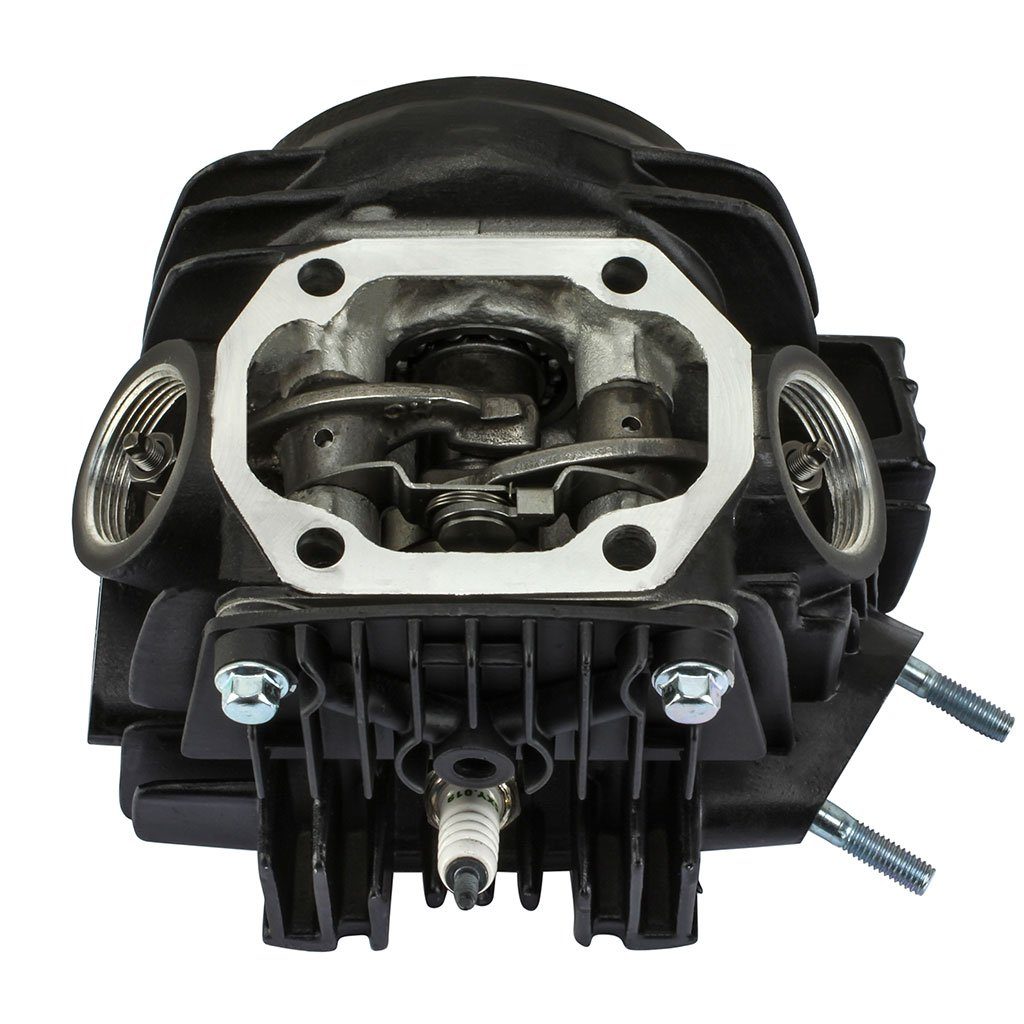

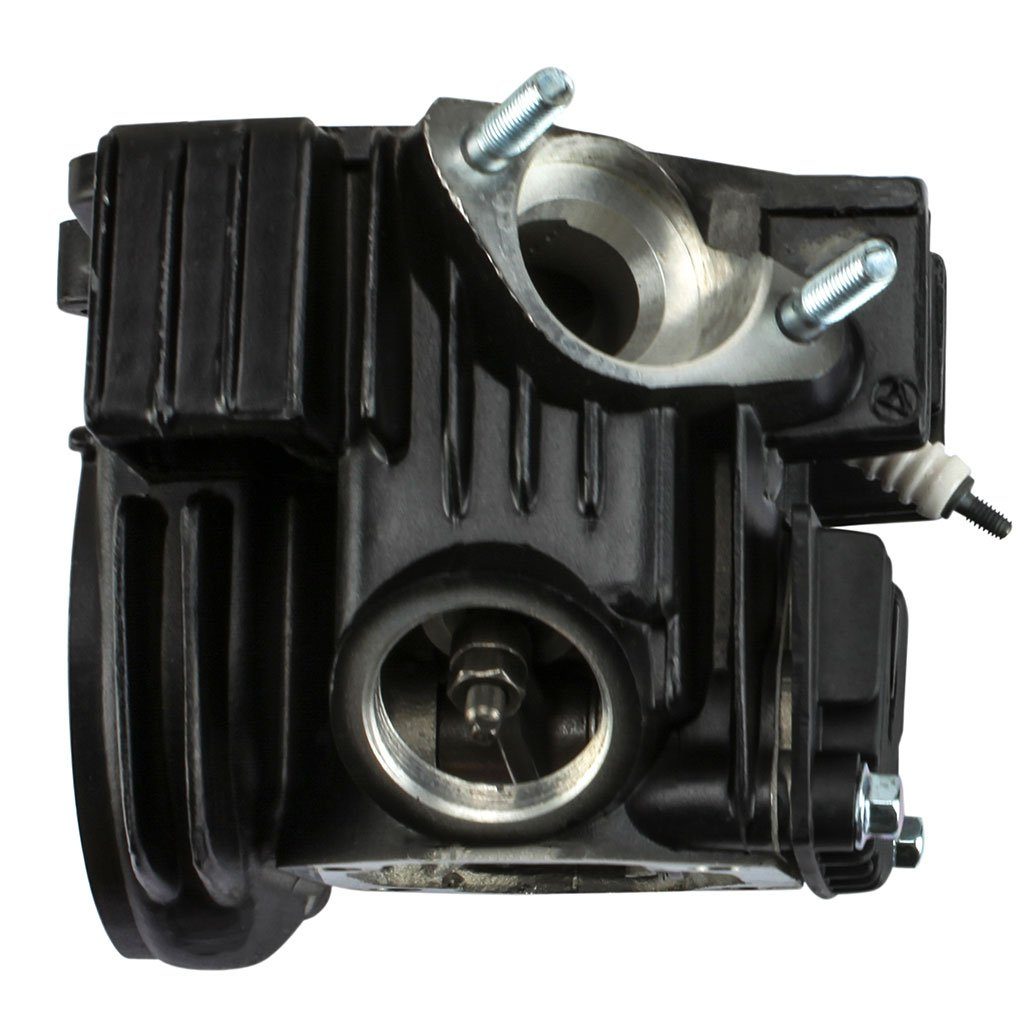

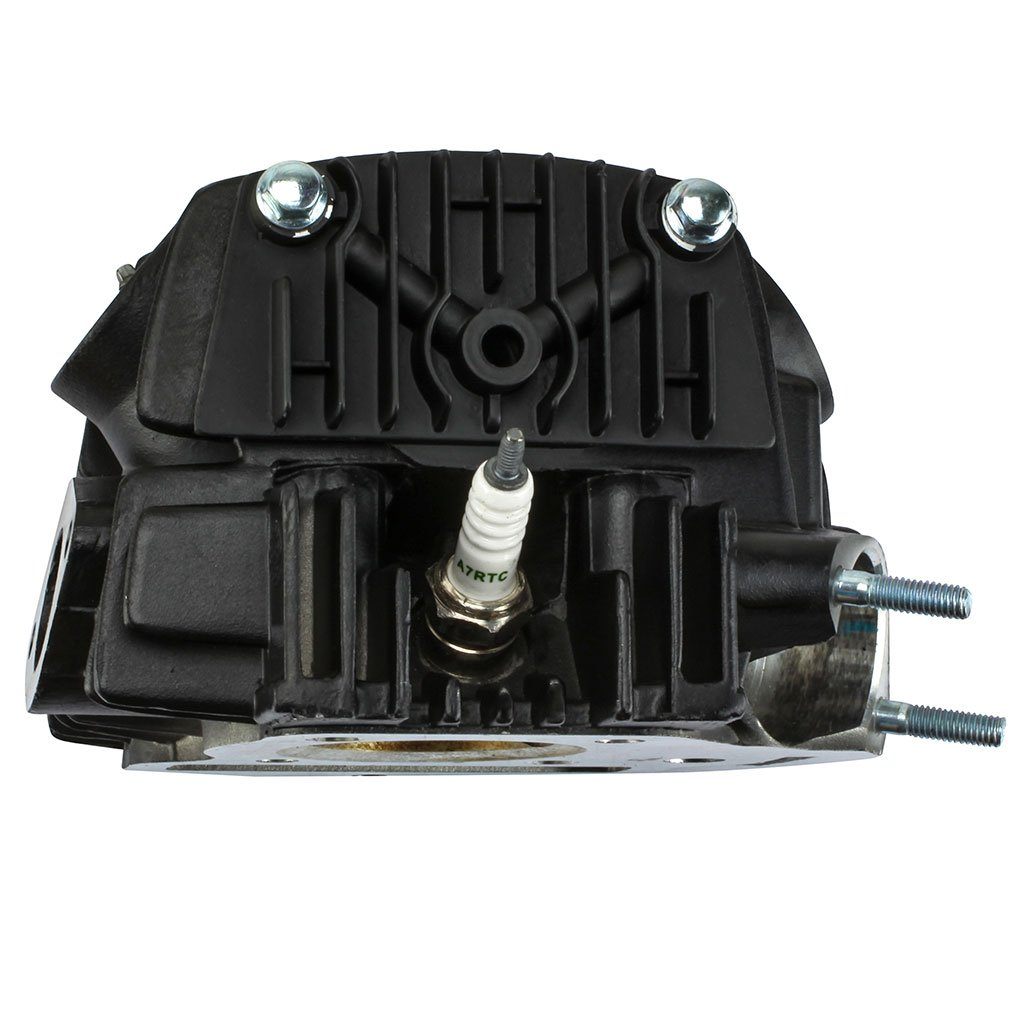

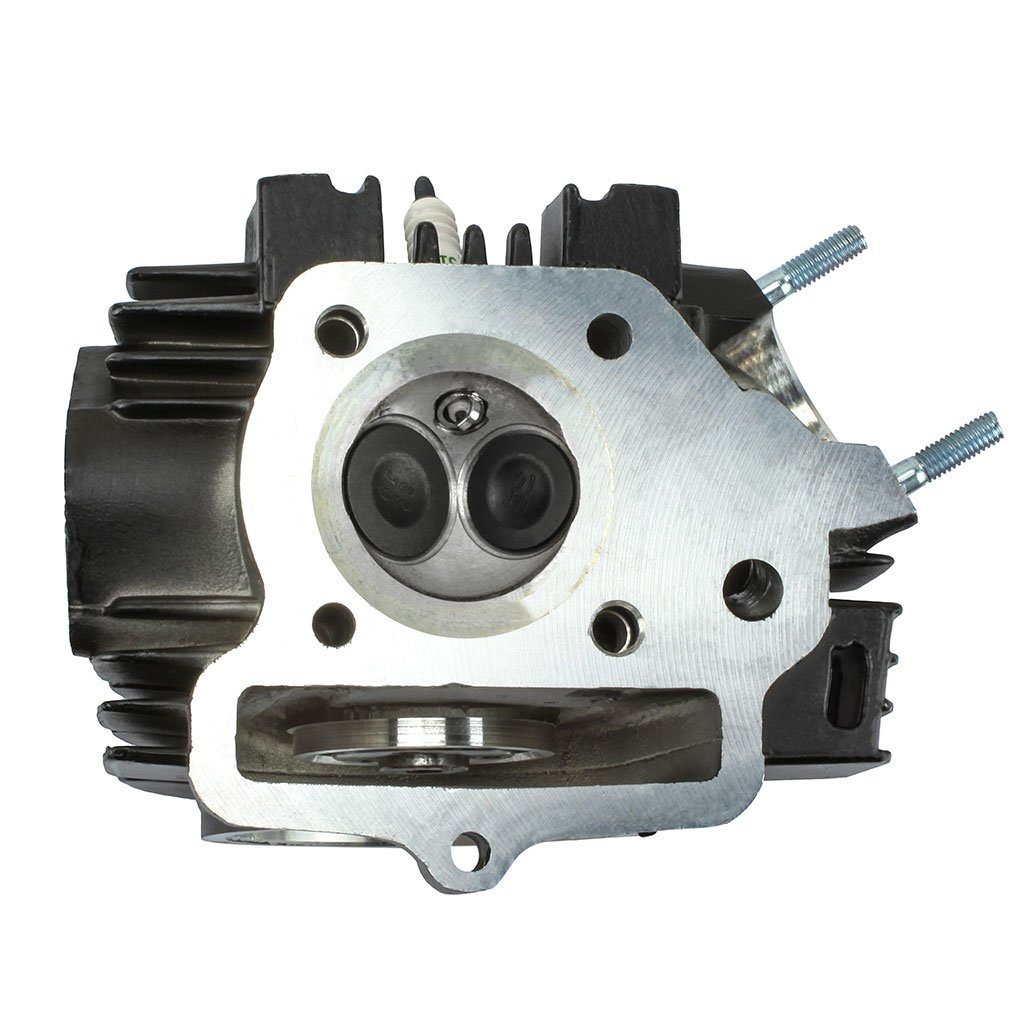

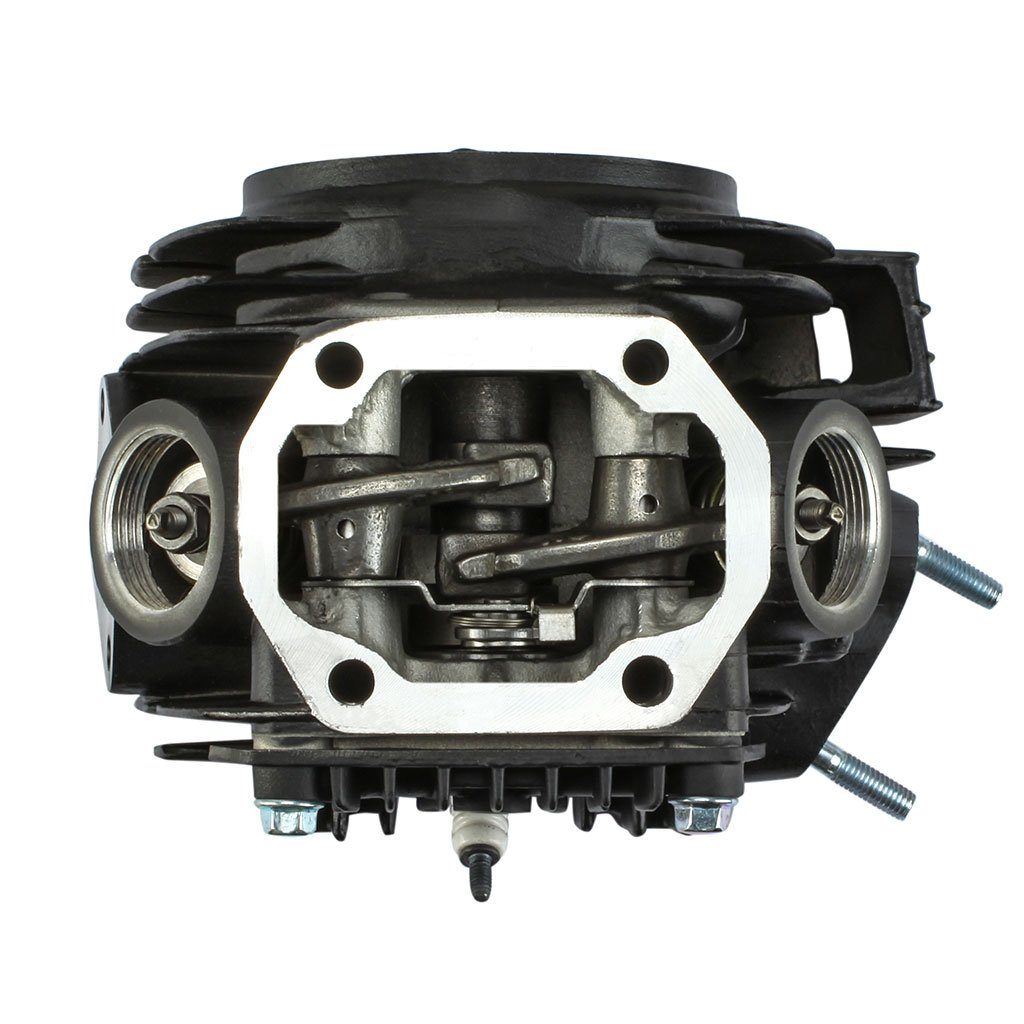

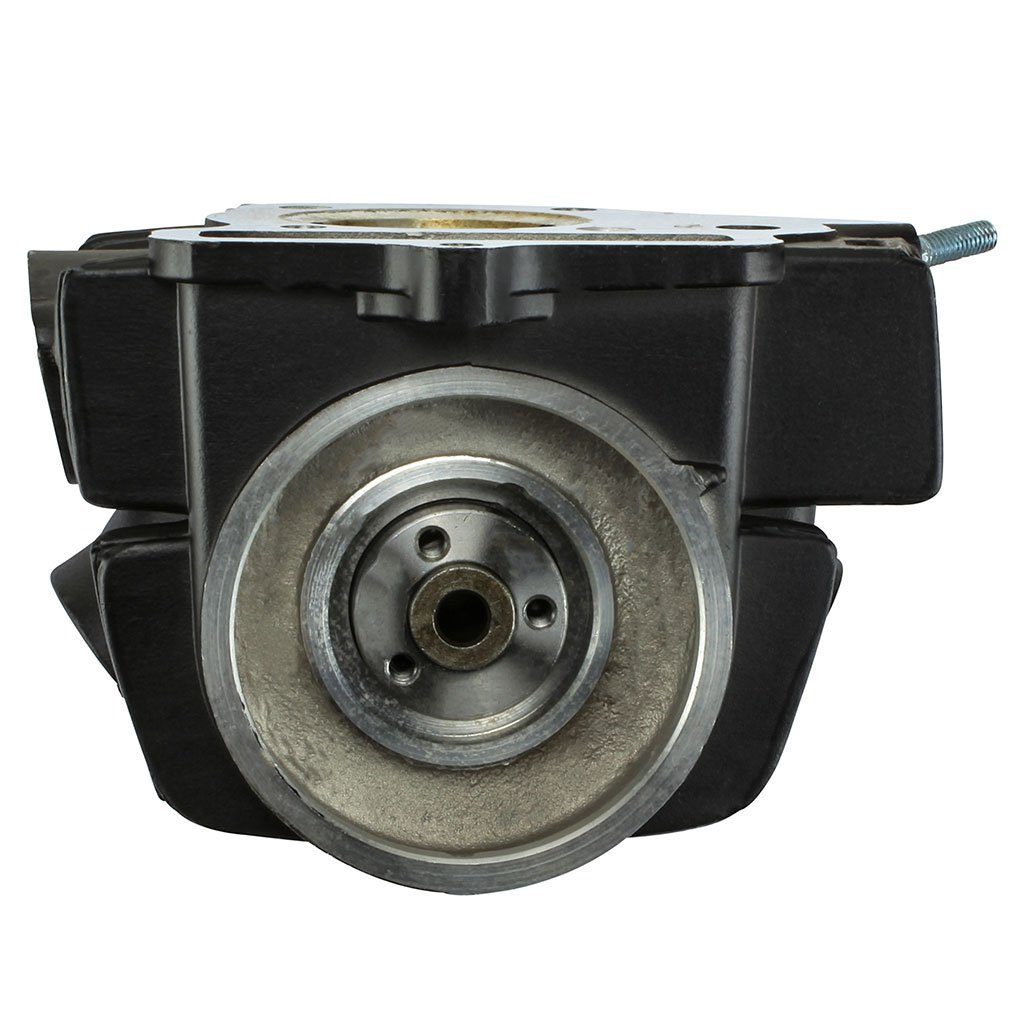

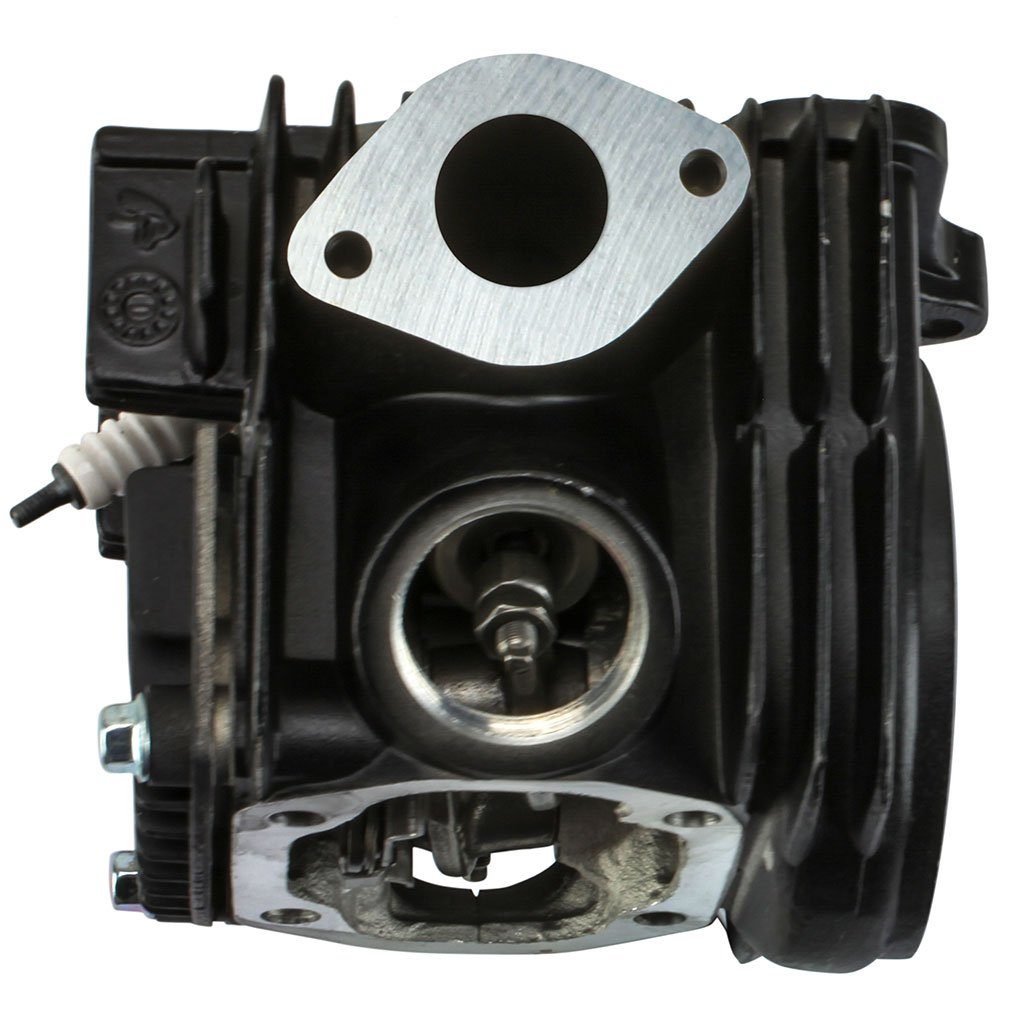

Chinese Aluminum ATV Cylinder Head Assembly for Tao Tao 110cc and 125cc
Complete cylinder head assembly for late model Tao Tao with 110cc or 125cc automatic engines with reverse. Please check pictures and specs before ordering.
- Painted black
- Intake manifold bolt holes: 45mm [1.76"] center-to-center apart
- Intake port diameter: 23mm [.90"]
- Exhaust port diameter: 19mm [.76"]
- Left side opening diameter: 72mm [2.83"]
- Rocker/valve side measurement--Plug side mounting holes: 46.5mm [+/- 0.5mm]
- Rocker/valve side measurement--From timing side to plug side mounting holes: 51mm [+/-0.5mm]
- Covers not included
Known to fit Tao Tao ATA125D, ATA125F1, ATK125A, ATA135DU, GK110. Cheetah, Jeep Auto, New Cheetah, TForce and New TForce with aluminum cylinder.
Do you need the top end gasket set?
Do you need your cylinder head fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
Excellent match! Was installed on a taotao cheetah ata125g. Atv runs smooth now
Thank you very much. The parts are exactly right.
