Chinese Stator Magneto for 50cc-110cc Engines.
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Mini Bikes. This stator fits 50cc, 70cc, 90cc, 100cc, and 110cc models.
- 2 coil

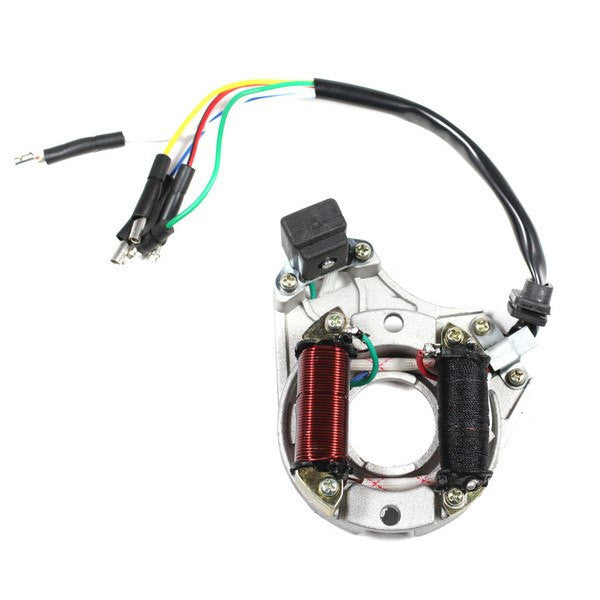

- 5 total wires [see picture for detail]

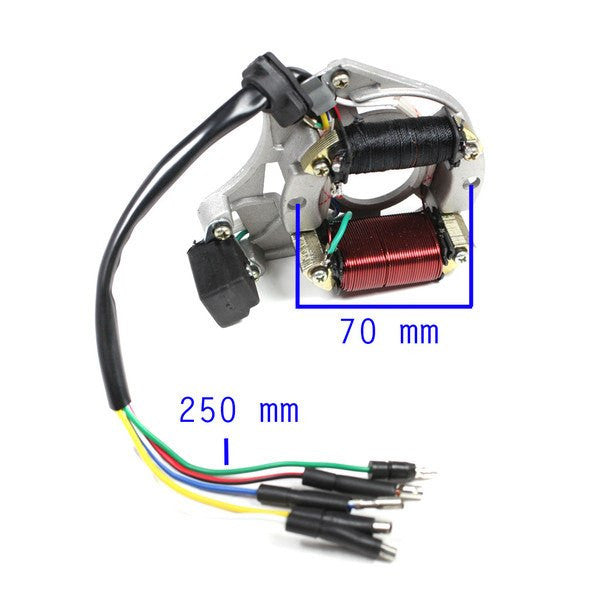

- 5 pigtail wires attached to coil - 25cm [10"] wire length
- 2 additional ground wires are also included with this stator [see pics]
- 2 bolt mounting
- Pickup trigger
- Mounting measurement: center-to-center 70mm [2.75"] approx.
- Compatible with 50cc-110cc 4 stroke
