Recoil Pull Start - Metal - 250cc ATVs, Generators - Version 4 - VMC Chinese Parts

VMC Chinese Parts

Part number: 936-PR436-04

Pull Start Assembly Chinese 250cc ATVs

Version 4

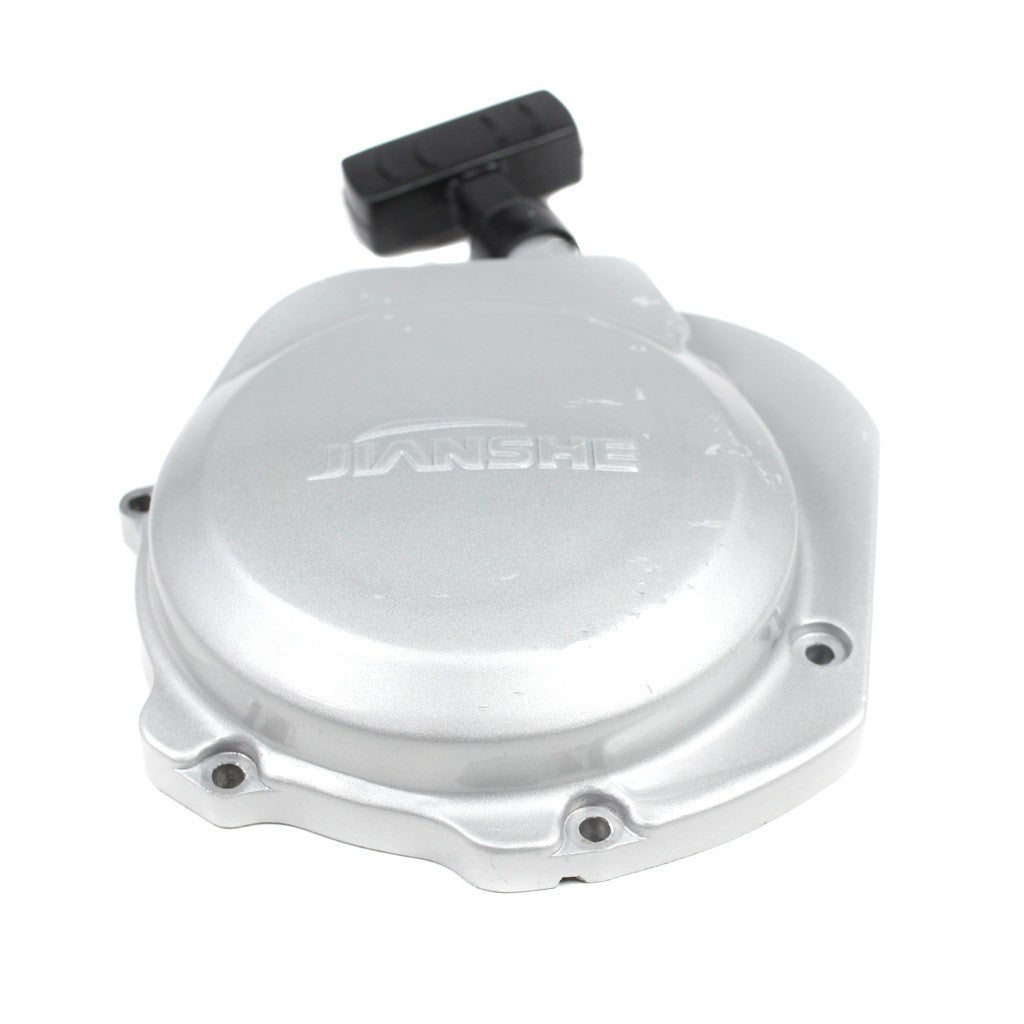

This Chinese ATV pull start is used on several makes and models of ATVs, and may also work on generators, mowers, etc. Please use the measurements and picture to best match the pull start you are needing.

Pull start details:

Metal cover
Metal ratchet guide /ratchets
6 mounting holes

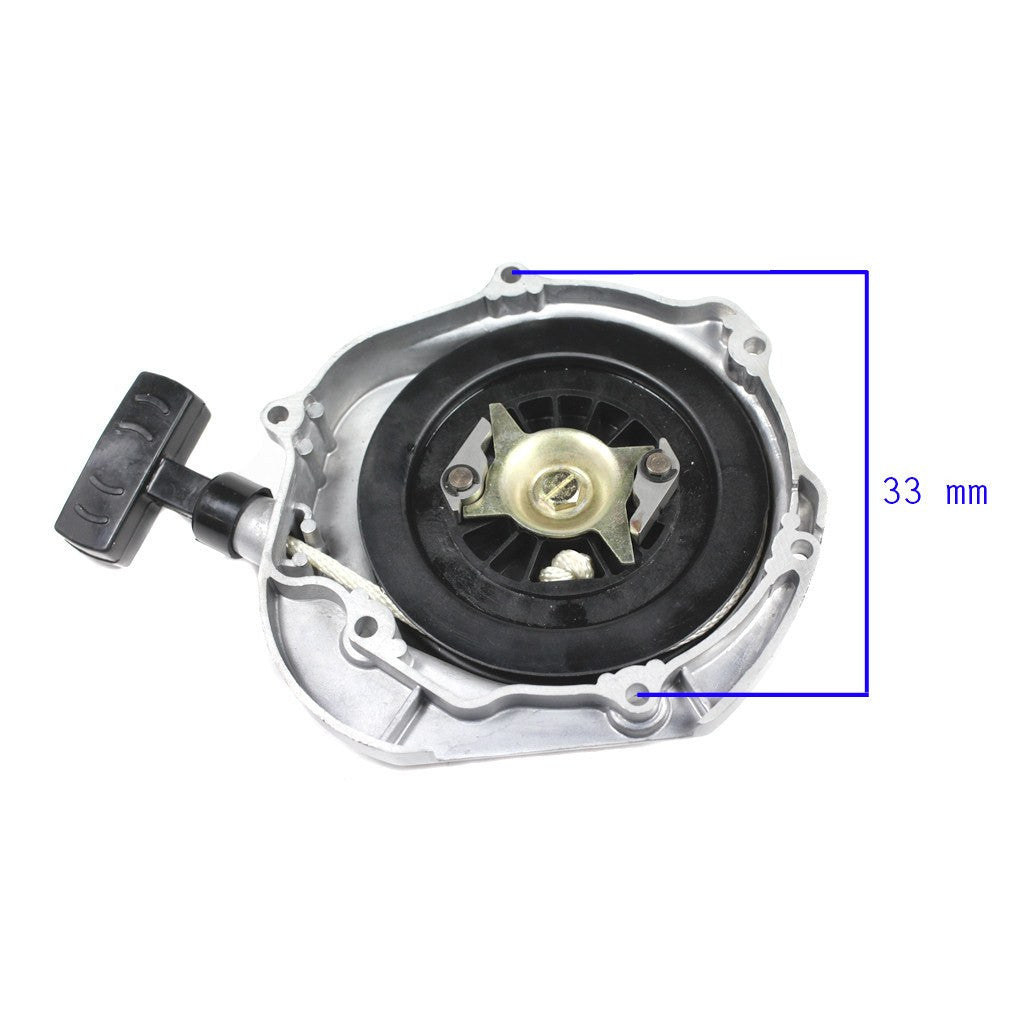

Distance of mounting holes on each side of handle: 33mm [1.30"] center to center
Overall cover width: 19.7cm [7.75"] at widest point
Center diameter of ratchet guide: 40mm [1.57"]
Ratchet pin distance: 63mm [2.5"] center to center
Recoil reel or starter drive pulley diameter: 13.3cm [5.24"]

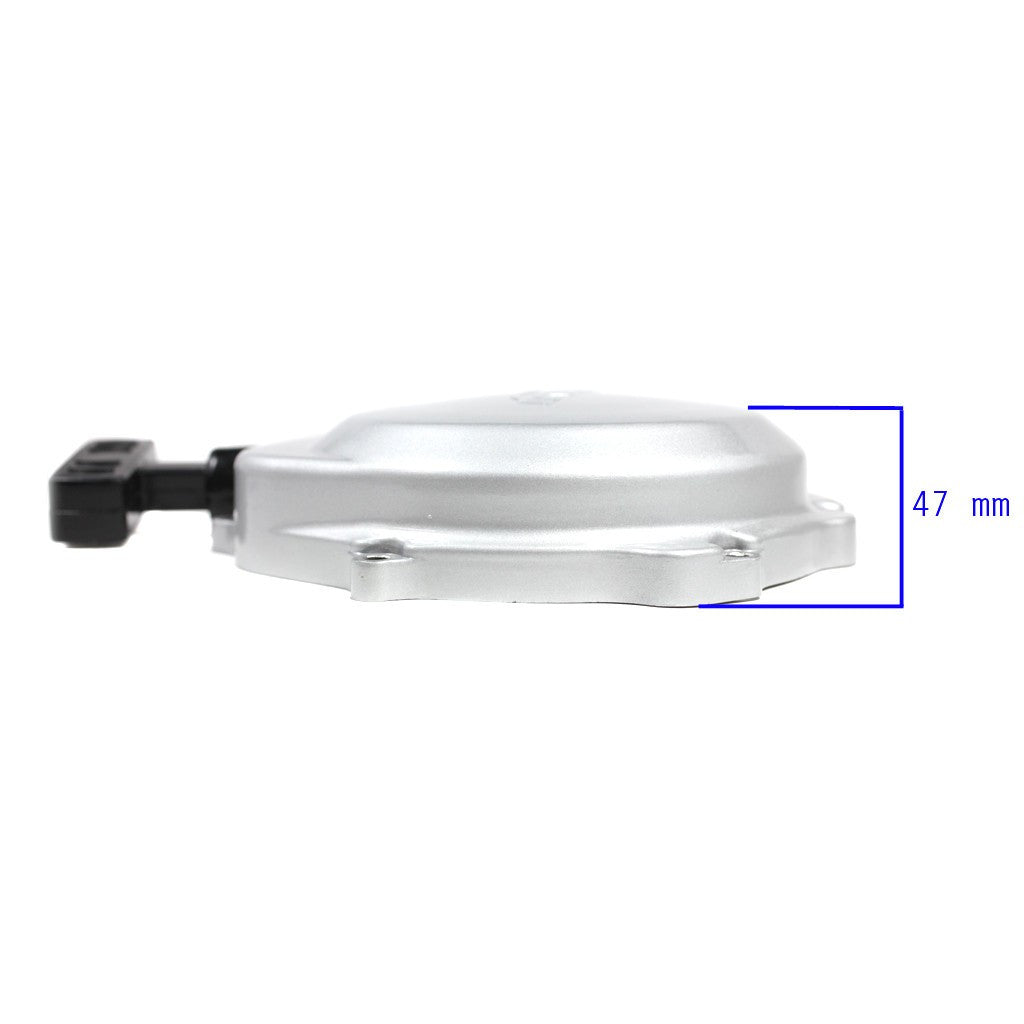

Over all height: 47mm [1.85"]

Known to fit Panther 250JS, along with many other makes/models.

Shopping for Chinese ATV Parts or Chinese Scooter Parts is a bit different than shopping for parts for a domestic or Japanese machine, for a couple of reasons. First, most Chinese machines are assembled with aftermarket parts; there are no OEM parts. Because Chinese machines are assembled with parts from a variety of manufacturers for the same application, even in the same model and model year, cross-referencing numbers stamped on the original part is usually not possible. Secondly, there is a bit of an "as is" attitude towards Chinese-built machines; there simply aren't model specific parts catalogs available. For those reasons, shopping for parts for a Chinese-built machine is largely a visual exercise: rather than ordering parts by make, model and production date, the best way to ensure that the part ordered is correct is to match the specifications of the parts.

At VMC Chinese Parts, our objective is to get you the right part, the first time, with thorough measurements and multiple images. In the event, however, that there is still uncertainty about a part's application, we encourage you to contact us, and be prepared to provide pictures and dimensions of the part in question. Visual verification is the best means to get you the correct part, and get your Chinese-built machine back on the trail or road!

VMC Chinese Parts - your one stop shop for Chinese ATV Parts, GY6 150CC Parts, Tao Tao Parts, Kazuma ATV Parts, Chinese Scooter Parts, Lifan Parts, Roketa Parts, SunL ATV Parts, Redcat Parts, TaoTao Parts, Coolster Parts and much more!
