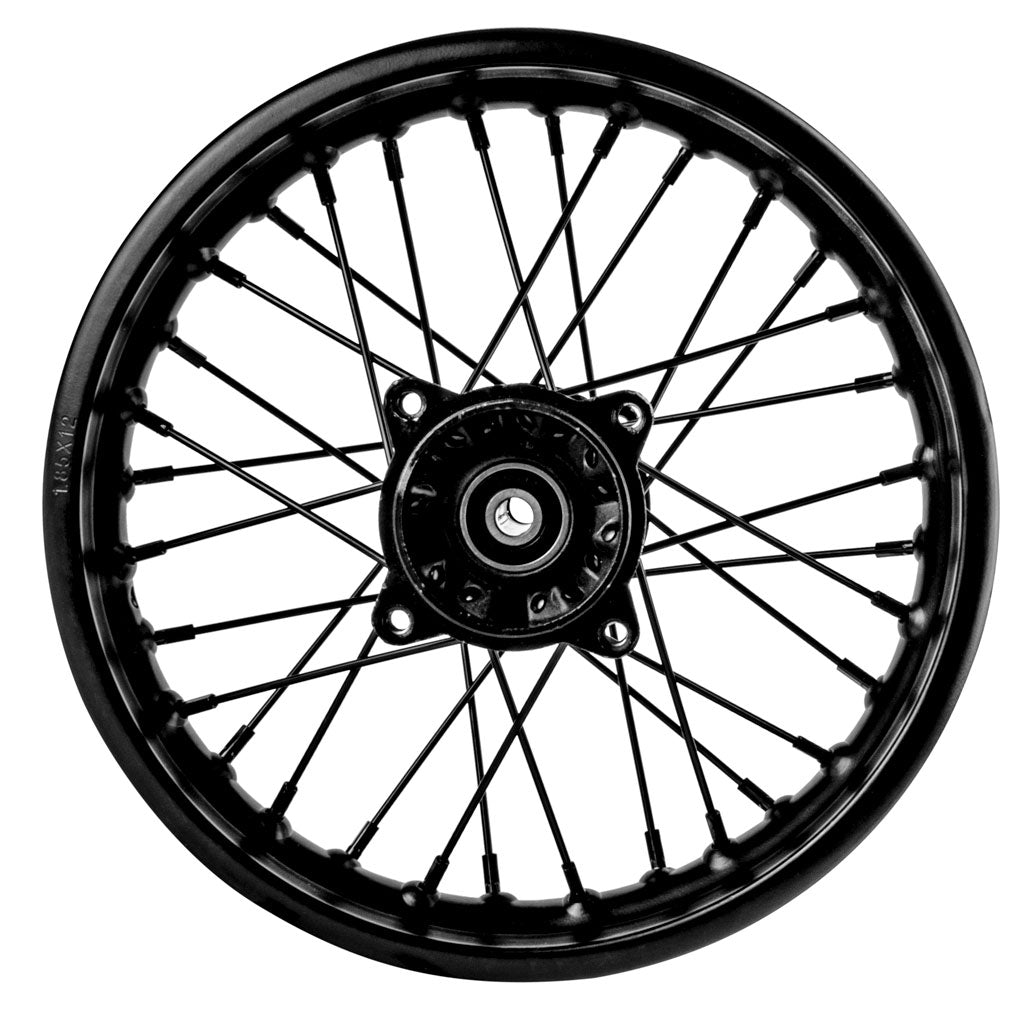

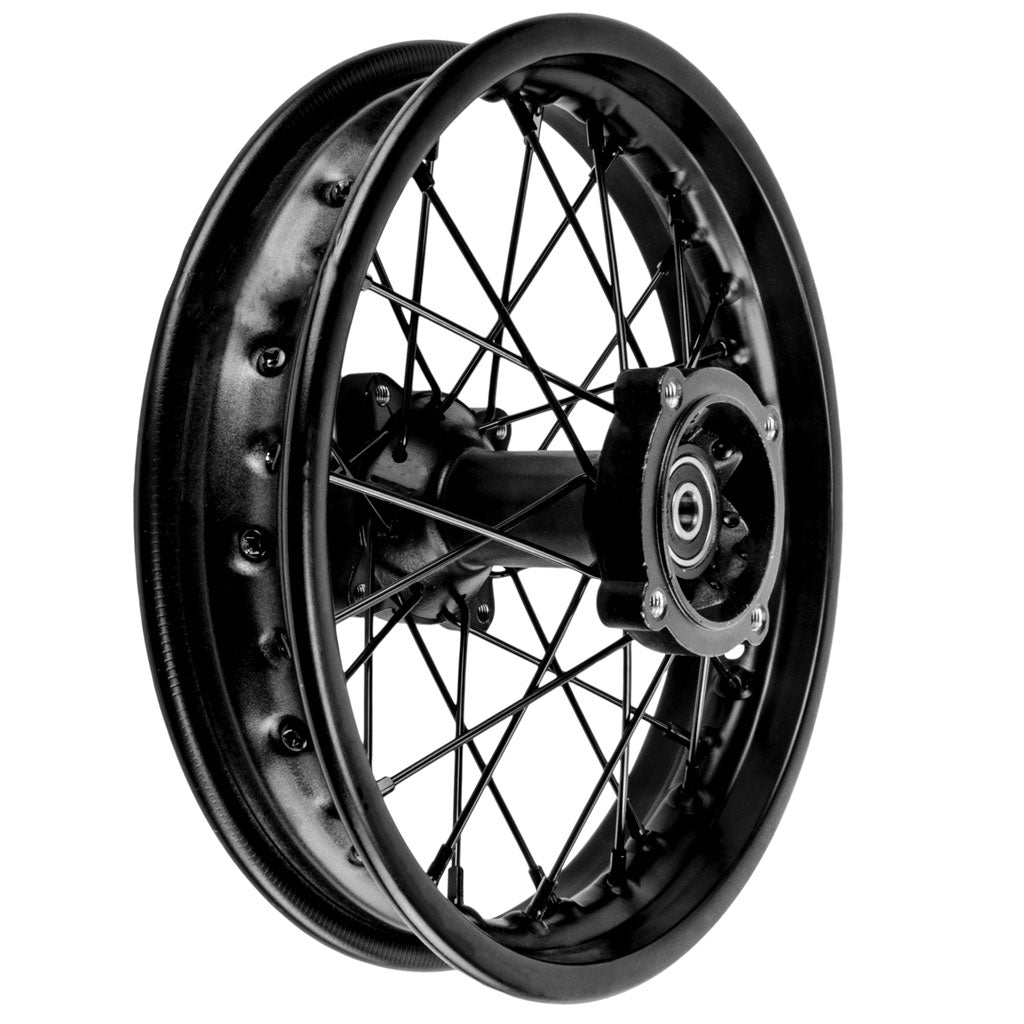

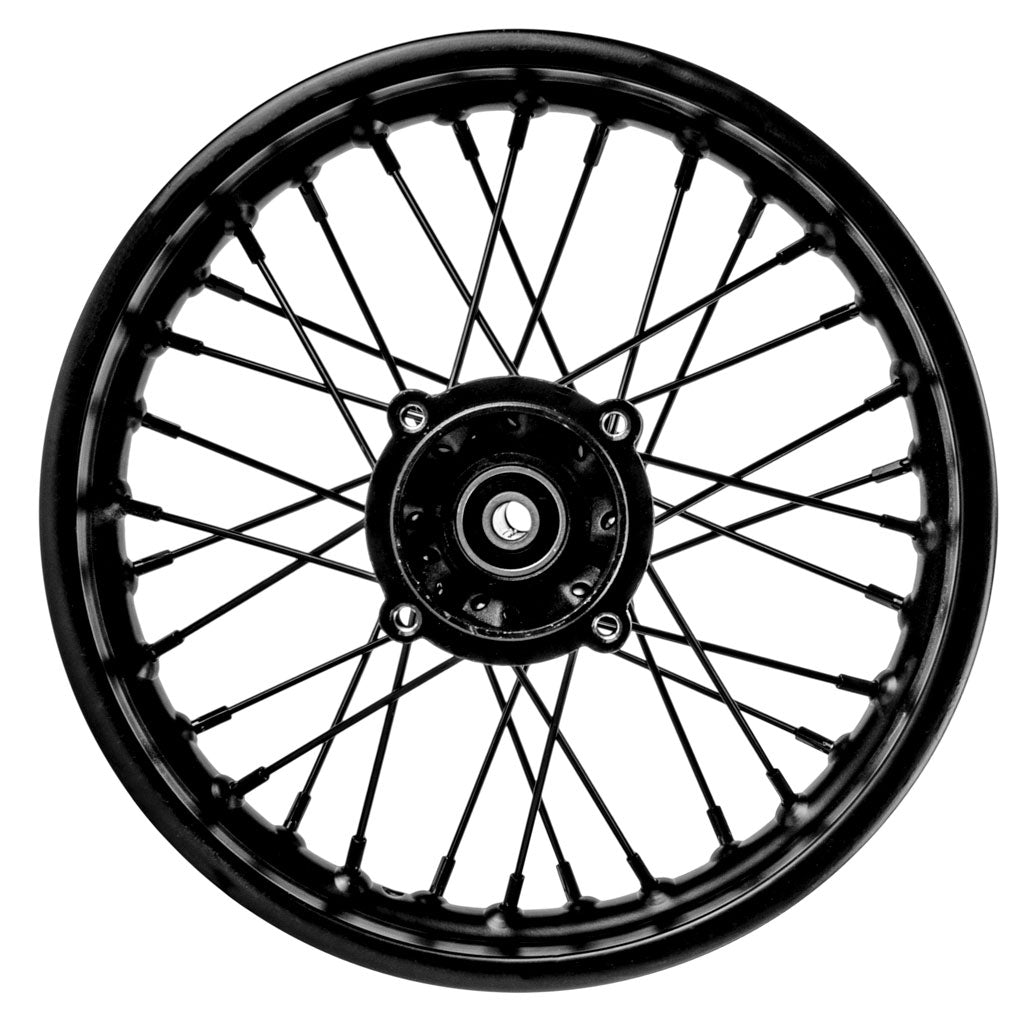

Chinese 12" x 1.85" Rear Dirt Bike Wheel Rim - Black with Black Spokes
Version 1271
Chinese rear rim wheel for 110cc, 125cc dirt bikes. This size is used on several makes and models including Taotao dirt bikes. Please use detailed measurements and pictures to help you get the correct rim for your machine.
Wheel details:
- Black with black spokes
- 12" x 1.85"
- 32 spoke
- Hub ID: 12mm [.47"]
- Overall width of rim: 6.86cm [2.7"]
- Overall rim diameter: approx 33cm [13"]
- Center hole diameter: 12mm [.47"]
- Bolt hole spacing: 70mm [2.75"] center to center (rotor side)
- Bolt hole spacing diagonally: 100mm [3.93"]
- Bolt hole spacing: 65mm [2.55"] center to center (sprocket side)
- Bolt hole spacing diagonally: 92mm [3.62"]
- Bearings: 6301RS

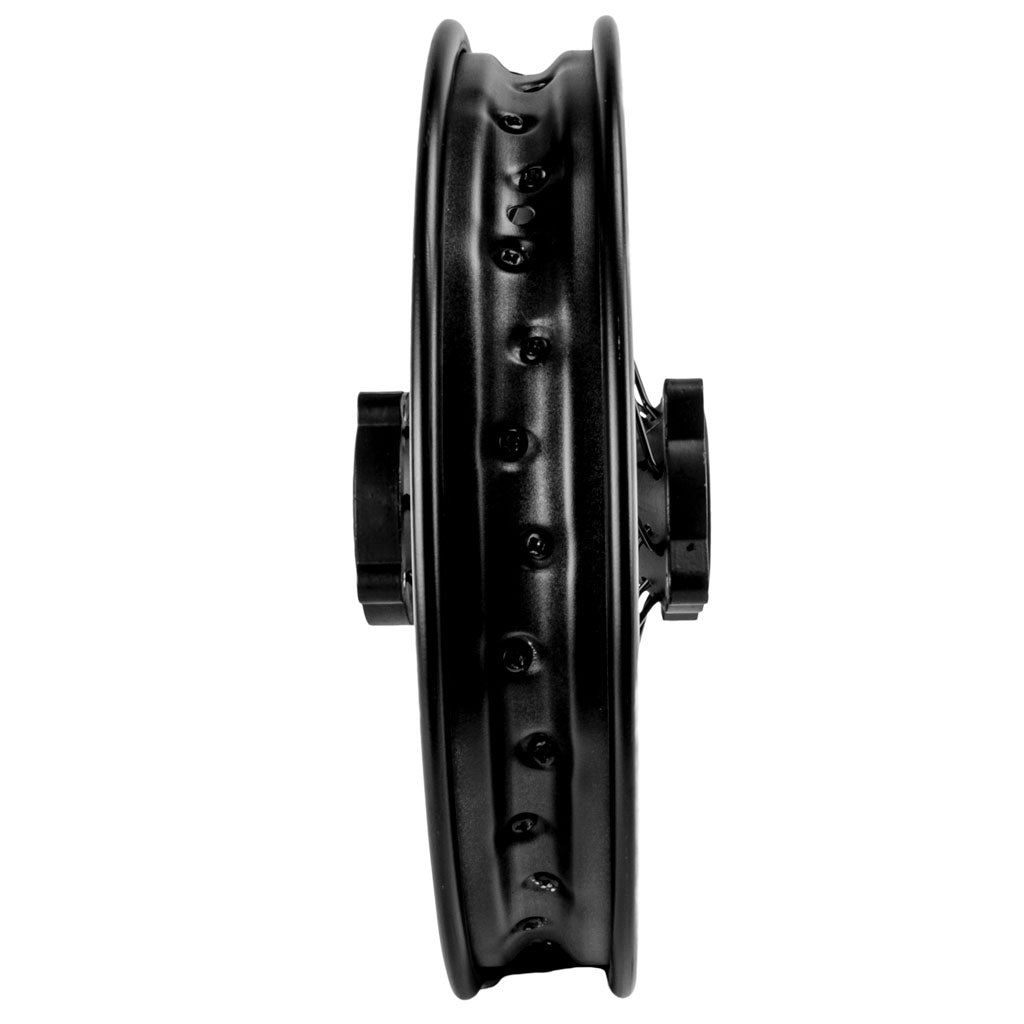

- Width of rim thru the wheel: 132.35mm (see picture)
- Uses a 3.00 x 12 tire
- 103536
The last number on your TIRE will let you know if you are needing a 12" rim. This is a 12" rim. Known to fit Taotao DB14.
