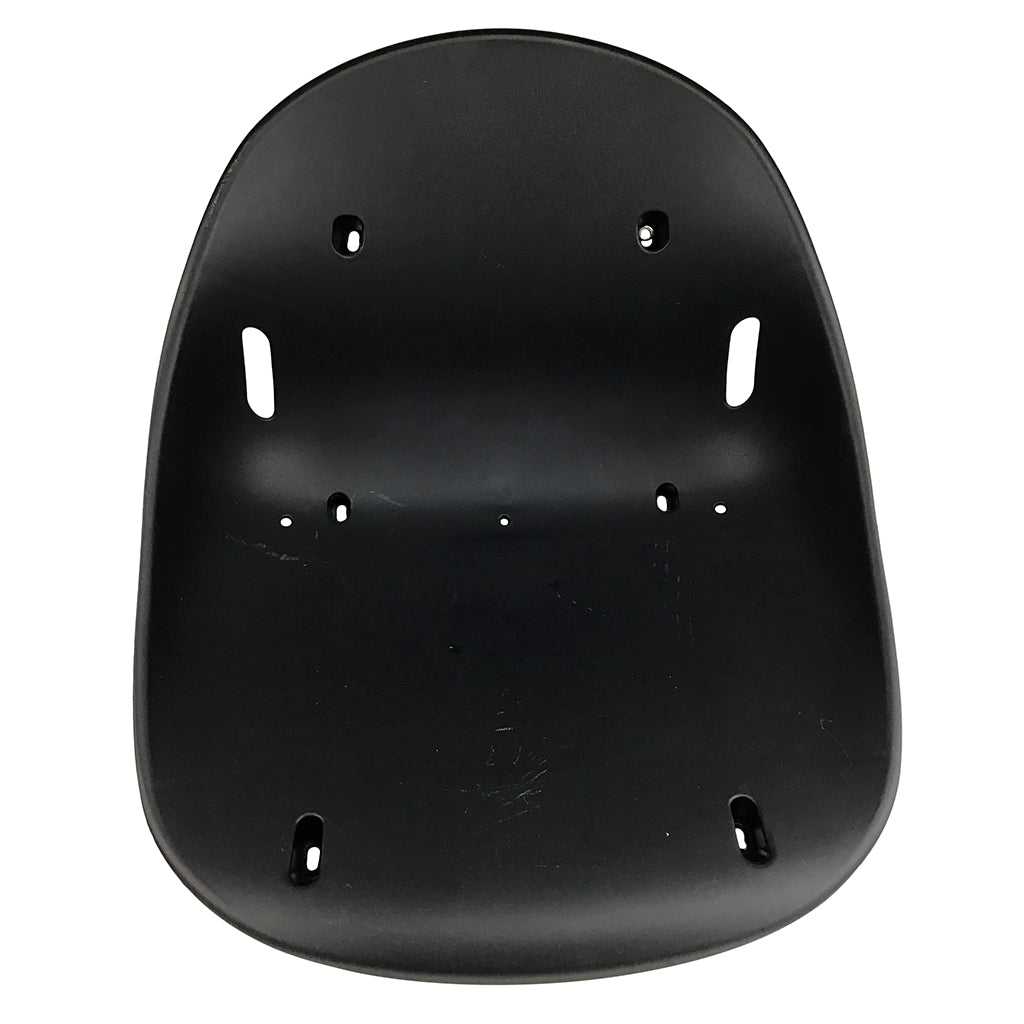

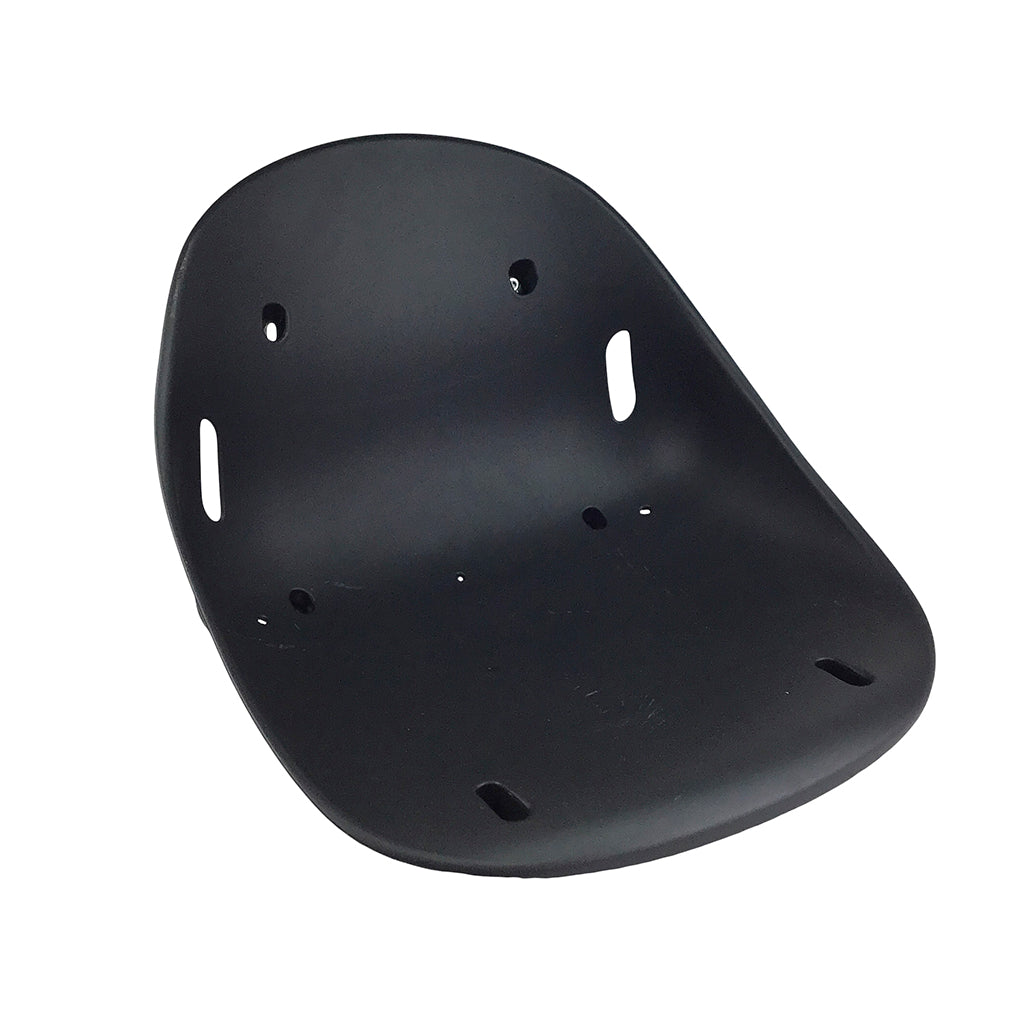

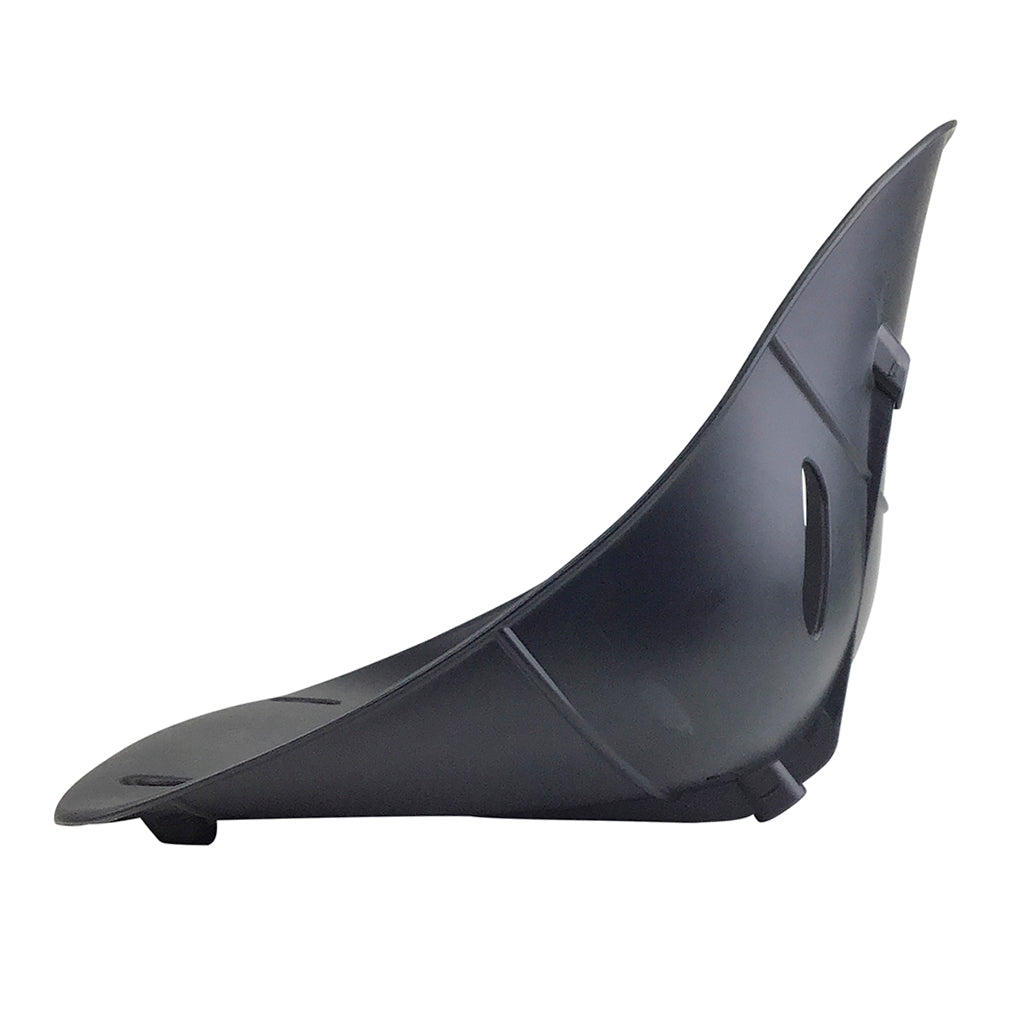

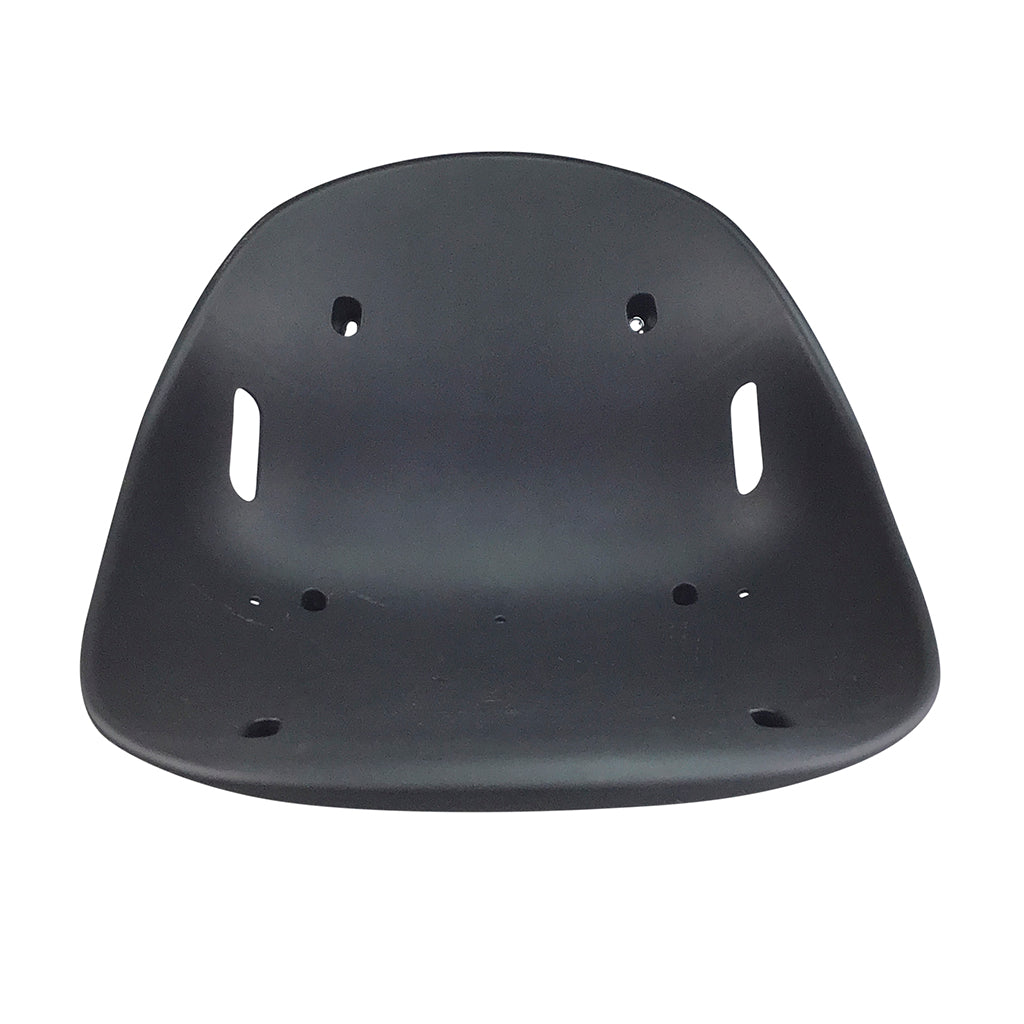

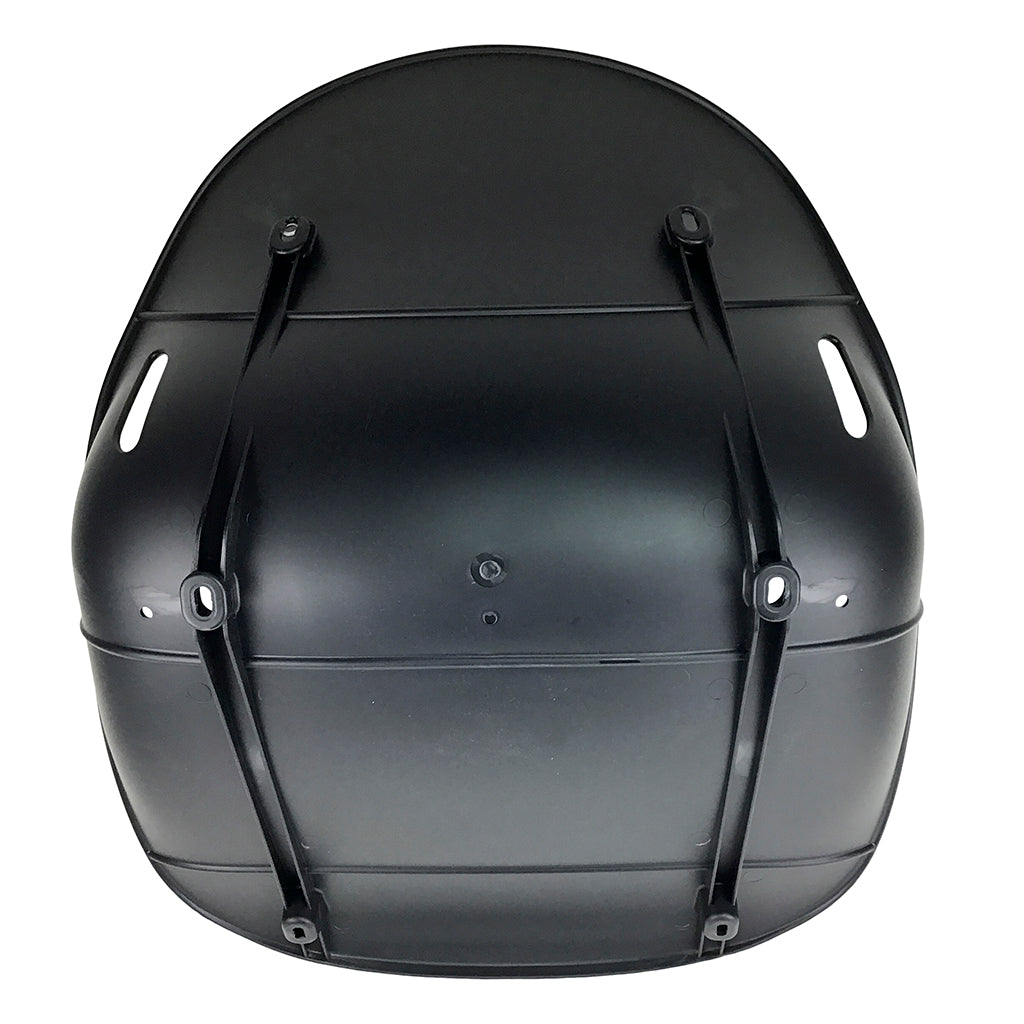

Bucket Seat for Coleman SK100
This is a hard plastic bucket seat for the Coleman SK100 go-kart. It fits other makes and models of go-karts and drift trikes too. Please check pictures and measurement to see if it fits your application.
Seat specs:
- Width: 17.75" at the widest point
- With the seat sitting on the floor the back is just over 12" high
- With the seat up against the wall, the seat extends to almost 18"
- The seating surface is about 13.5" on the inside of the seat
- The back is about 11-12" on the inside of the seat
- The bolt holes at the front of the seat are 9.67" center-to-center apart
- The bolt holes in the bottom rear of the seat are 9.6" center-to-center apart
- The bolt holes in the top back of the seat are 7.7" center-to center apart
- The distance from the front bolt holes to the bottom rear bolt holes is 10.7" apart center-to center
- The distance from the bottom rear bolt holes to the top back bolt holes is 7.9" center-to-center apart
- Bolt holes are big enough for 6mm bolts
- Slots for seat belt in middle of seat back. Slots are approximately 3/4" x 3"
- There are also three small holes in rear of seat to get rid of water if necessary
- This seat is specifically used on the Coleman SK100 single seat go-kart
- On the SK100 this seat bolts into the seat frame
- FS-30020
