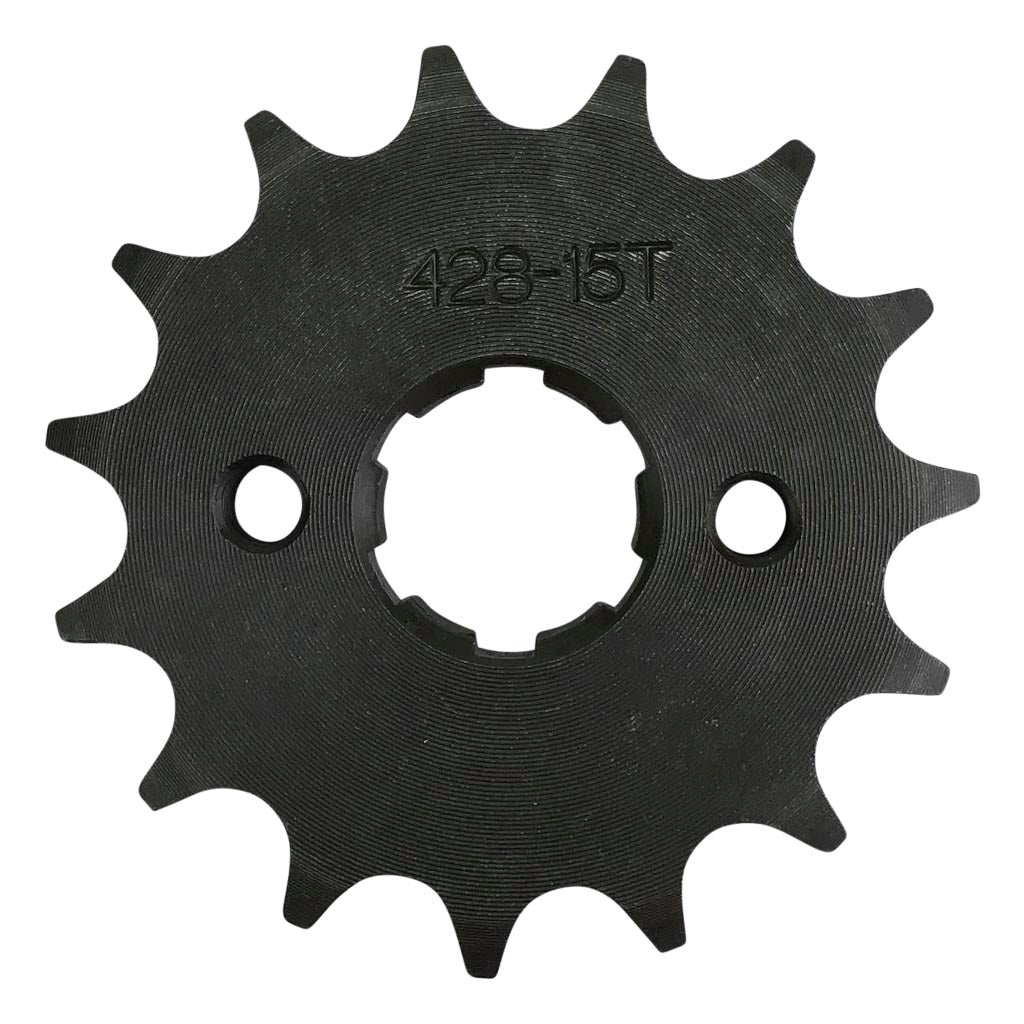

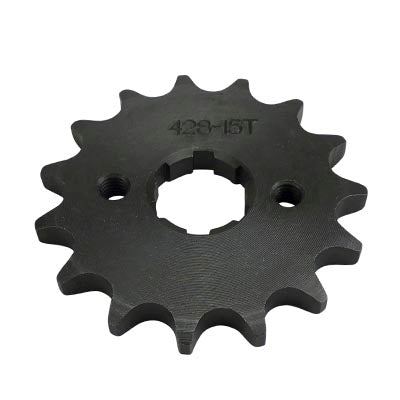

Chinese ATV Front Sprocket - 428-15T 200cc
This front sprocket is used on the Chinese 200cc and 250cc engines. This sprocket has 15 teeth and is compatible with the 428 chain ONLY.
Sprocket details:
- #428 chain
- 15 tooth
- OD: 64.8mm [2.5"]
- ID: 20.1mm [.79"] valley to valley
- ID: 17.6mm [.69"] tooth to tooth
- (2) 6mm threaded holes 34mm [1.3"] apart center-to-center
- Uses retainer with bolts [not included]
Be sure to measure your chain or current sprocket before ordering. 428 chain has 1/2" pitch and 0.335" roller diameter. Most Chinese sprockets have the chain size and teeth count stamped into the metal.
