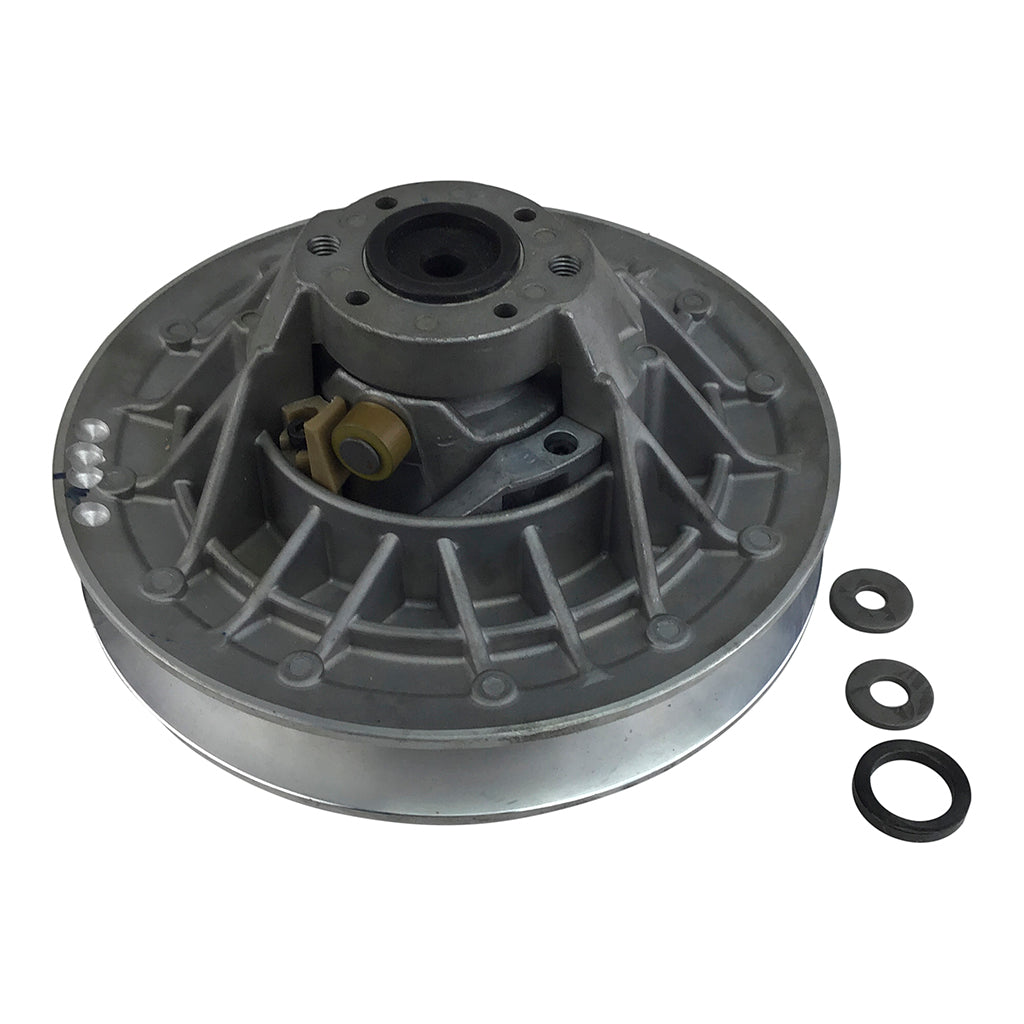

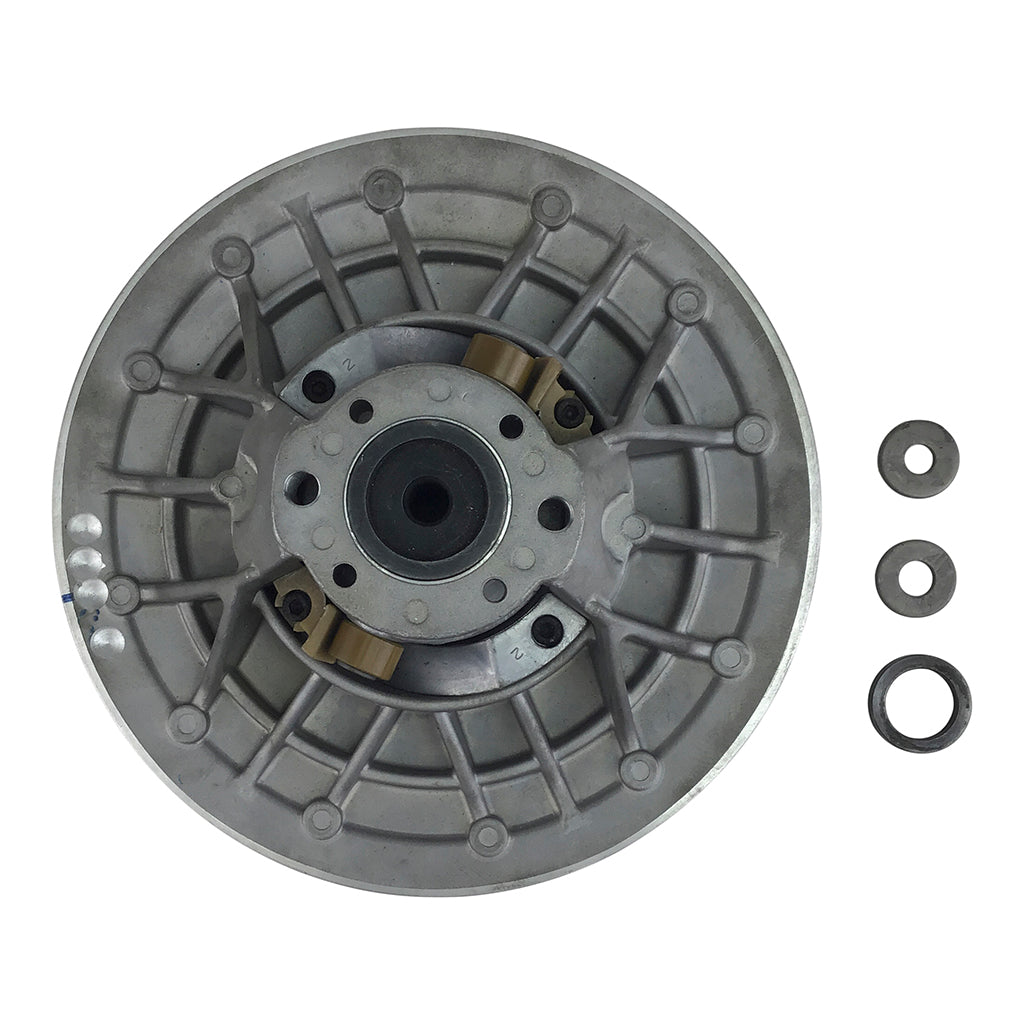

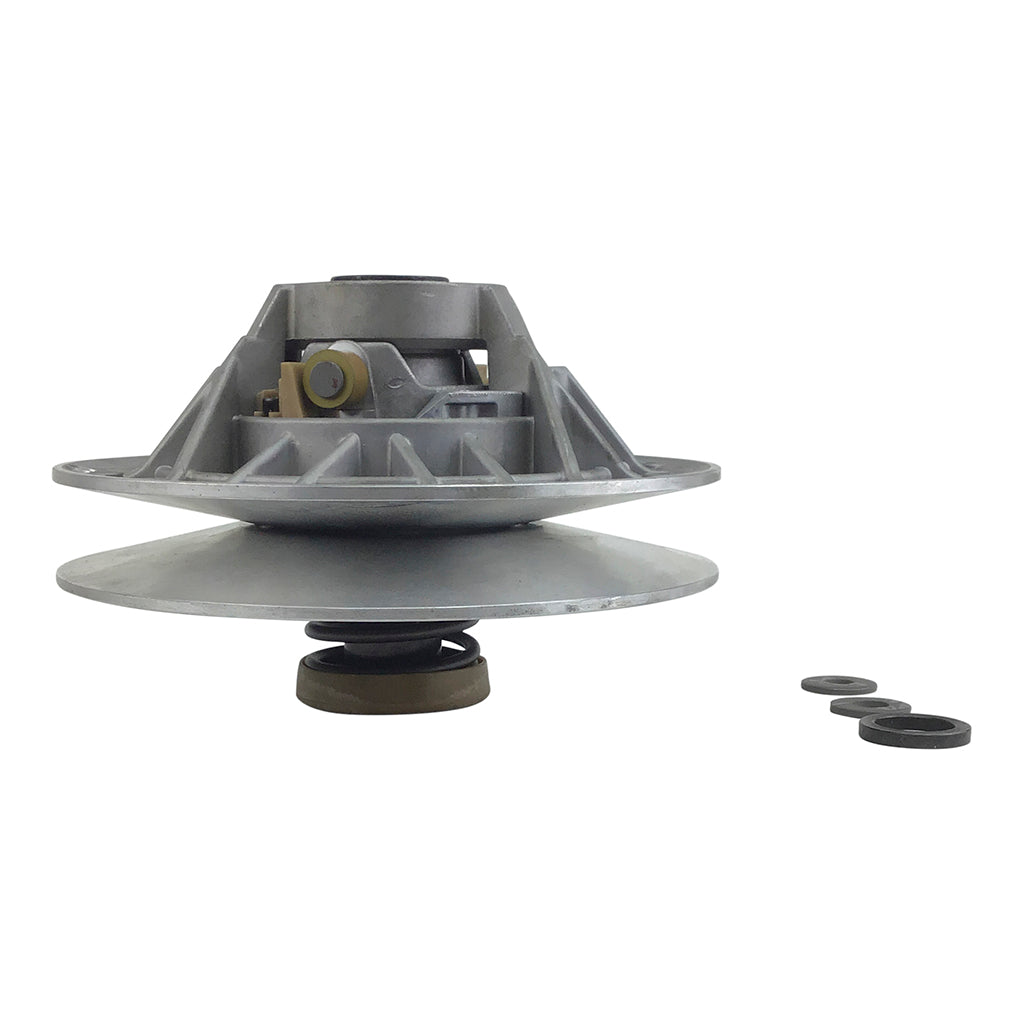

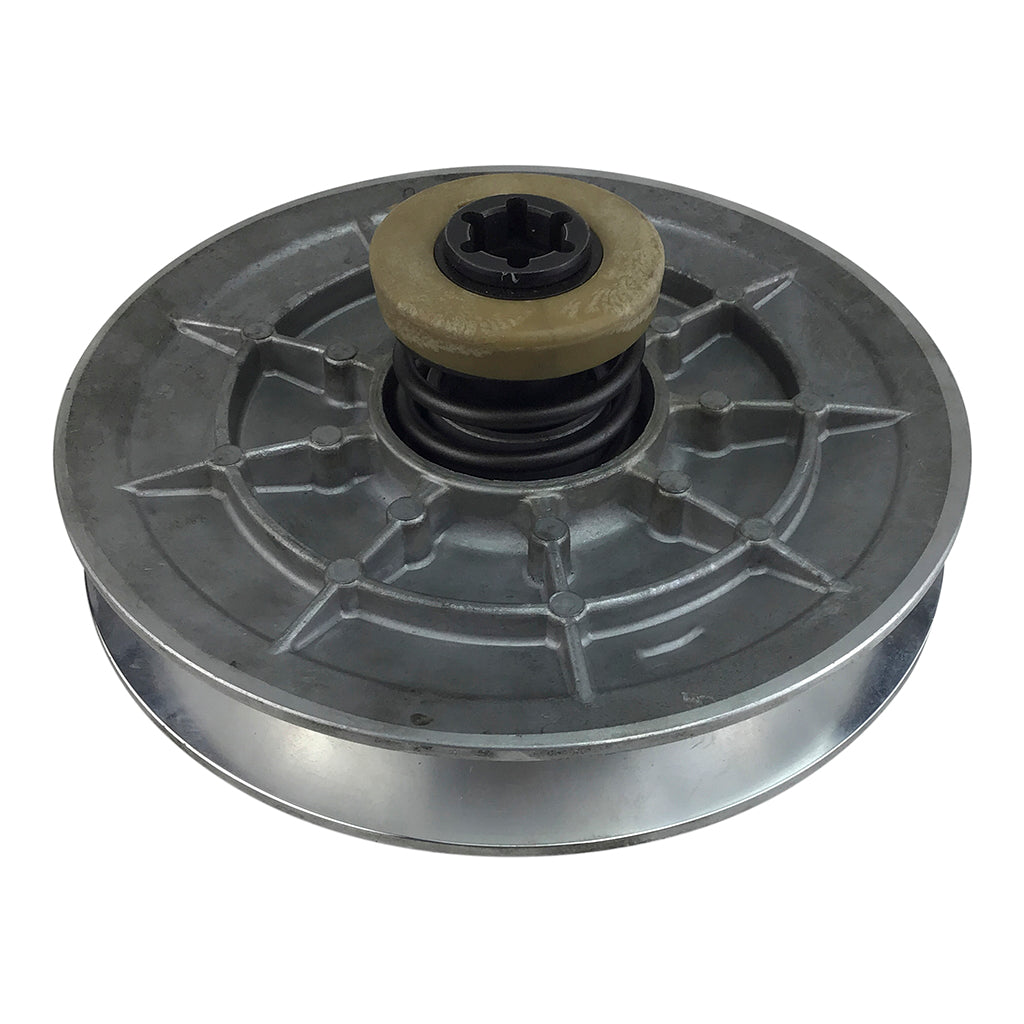

Secondary Clutch Assembly for CVT Driven 800cc, 1000cc UTVs
This clutch is the secondary drive clutch and is known to fit several brands of 800cc-1000cc UTVs. Please use the pictures and measurements to make sure it will fit your application.
- ID of center hole: 11mm on side with threaded holes
- Two 10mm x 1.50 threaded holes are 64mm [2.53"] center-to-center apart

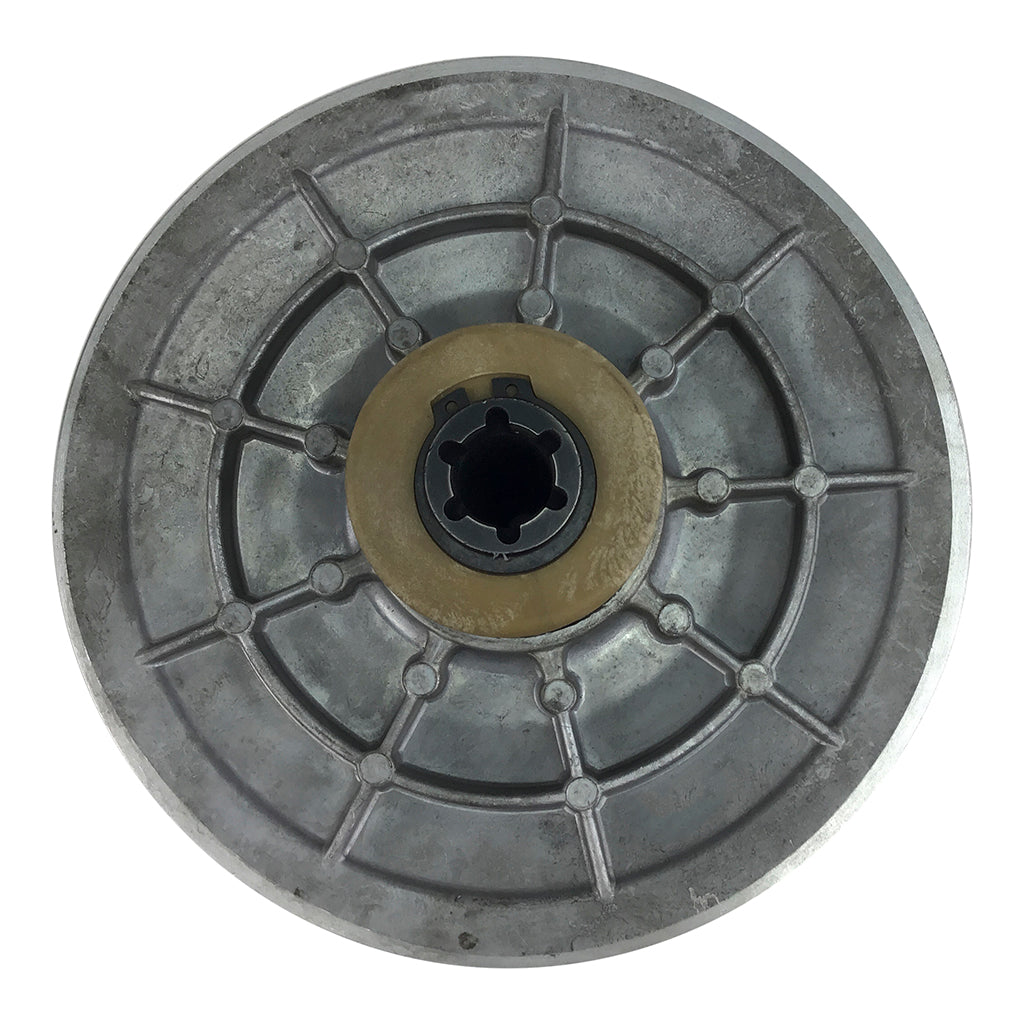

- Opposite side resembles a die tool with 6 moons coming out of the center
- Inside diameter of that side is 20.8mm [.82"]
- Overall OD: 230mm [9.04"]
- Width of pulley: 39mm [1.54"] on outside
- Fits all EFI & carburetor style HiSun utvs
Known to fit HiSun, Bennche, Massimo, Supermach, Q-Link, Menards Yardsport UTV & more.
