Clutch Assembly for CVT Driven UTVs 500cc 700cc - HiSun Menards Massimo

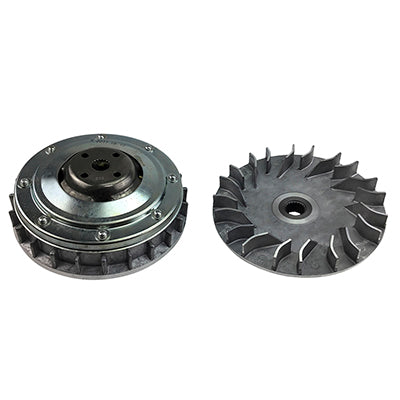

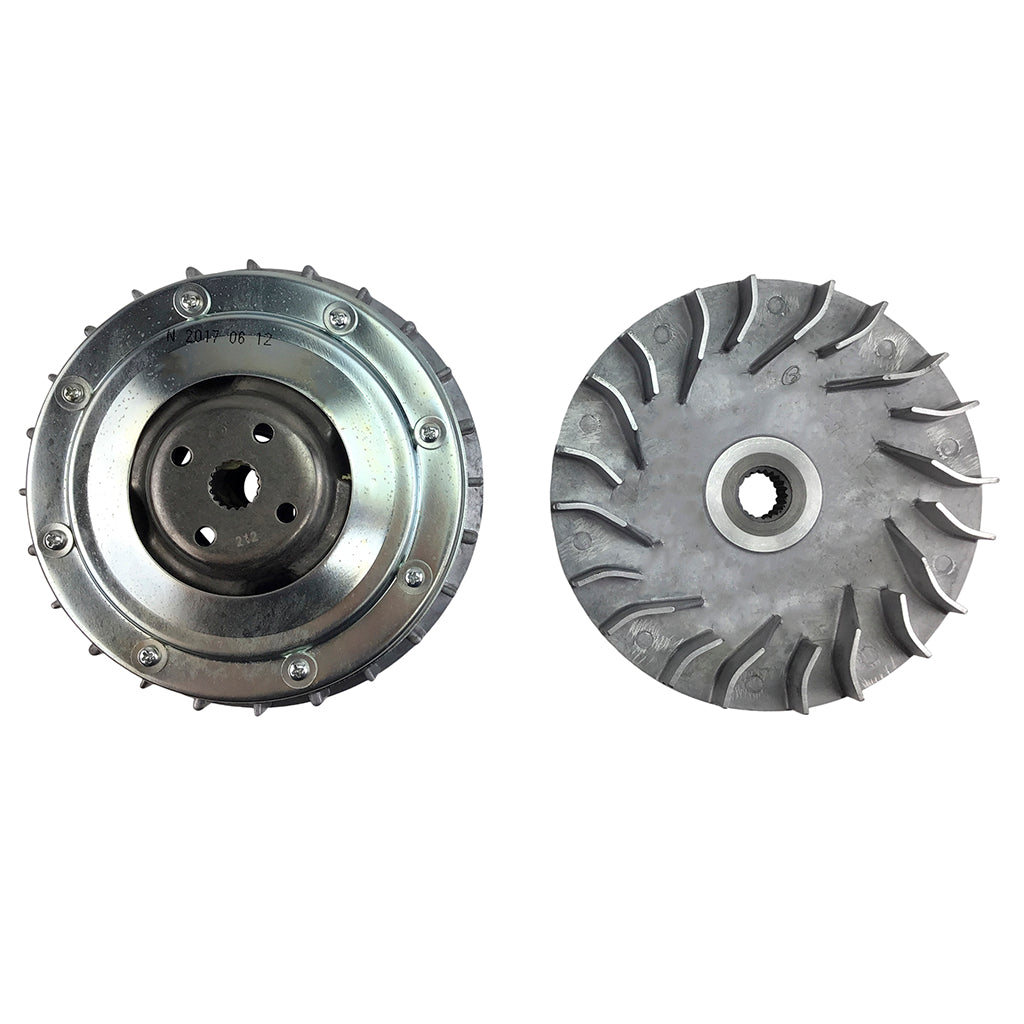

This clutch is the primary drive clutch and is known to fit several brands of 500cc - 750cc UTVs. Please use the pictures and measurements to make sure it will fit your application.
- Contains sheave assembly and fixed sheave plate
- Clutch OD: 191mm [7.5"]
- Clutch ID: 19mm [.74"]
- 24 small alternating size fins around outside
- 18 teeth on the bottom plate of clutch
- 8 screws hold clutch together on the bottom side
- Sheeve plate has 21 teeth
- Sheeve plate OD: 191mm [7.5"]
- Sheave plate ID: 21.9mm [.86"] valley to valley
- Sheave plate has 21 fins
- Fits all EFI & carburetor style HiSun UTVs
Known to fit 500cc-750cc HiSun, Bennche, Massimo, Supermach, Q-Link, Menards Yardsport UTV & more.
Do you need your clutch fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
All good parts fit like they said.
Very fast service
CVT Primary Clutch
As described 18 teeth as original parts should be
