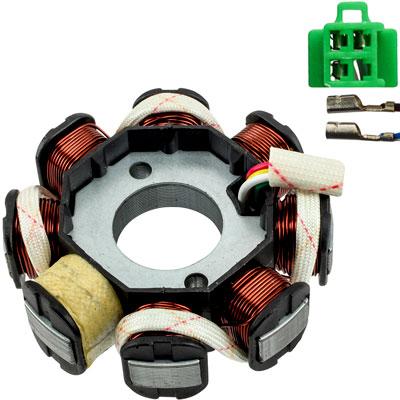

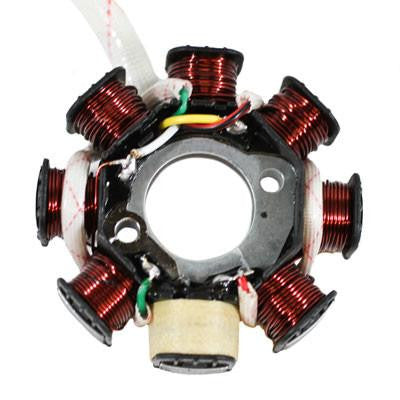

Chinese 8 Coil Stator Magneto for GY6 125cc 150cc Engines.
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters. The stator recharges the battery while the machine is in use, like an alternator in a car. This stator fits GY6 125cc and 150cc models.
- 8 coil
- 5 wires. 3 wires in a 4 position plug and 2 single leads.
- 2 bolt mounting
- Pick up trigger
- Center hole measurement: 29mm [1.14"]
- Overall measurement: 88mm [3.46"]
- Single coil height: 26.75mm [1.05"]
- Bolt hole spacing: 41mm [1.61"]
- Bolt hole diameter: 6mm [.23"]
- Compatible with GY6 125cc and 150cc 4 stroke
- 107056 107054
Fits Tao Tao ATA150G and Bull 150 atv.
Fits Tao Tao Lancer 150, Quantum 150, Powermax 150 and PMX 150 Scooters.
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
