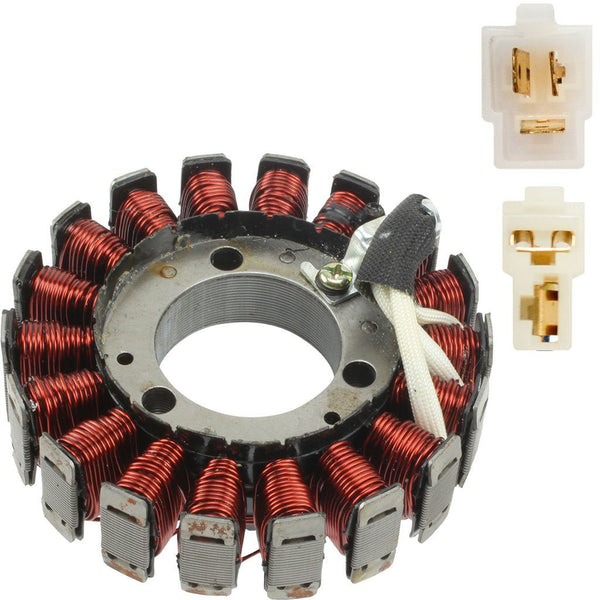

Chinese 18 Coil Stator Magneto for 250cc, 300cc Engines.
This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs and Scooters. The stator recharges the battery while the machine is in use, like an alternator in a car. This stator fits 250cc and 300cc models.
- 18 coil
- 3 wires from stator to one plug: 50cm [20"] overall wire length
- 2 wires from pick up trigger to another plug: 50cm [20"] overall wire length
- 3 bolt mounting
- Pick up trigger
- Center hole measurement: 34.85mm [1.37"]
- Overall measurement: 93.3mm [3.67"]
- Single coil height: 23.1mm [.91"]
- Mounting measurement: diagonally center-to-center 48mm [1.5"]
- Compatible with 250cc, 300cc 4 stroke
Do you need your stator magneto fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
Electrical parts are not returnable. Please double check before ordering.
