Chinese ATV Exhaust Assy Tao Tao ATA125F1

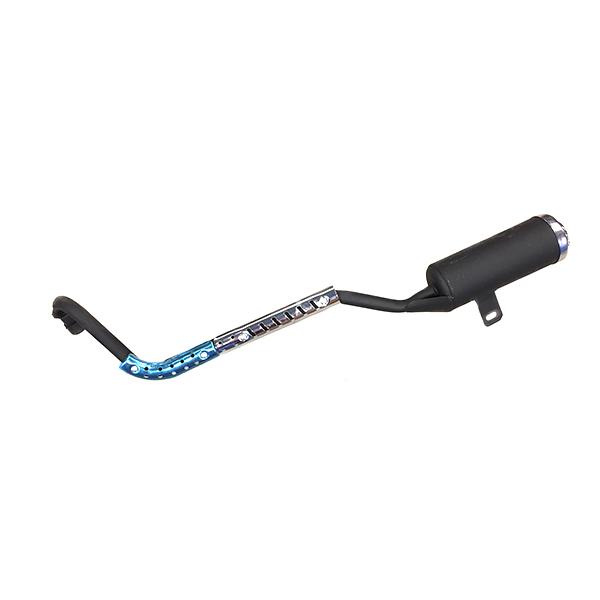

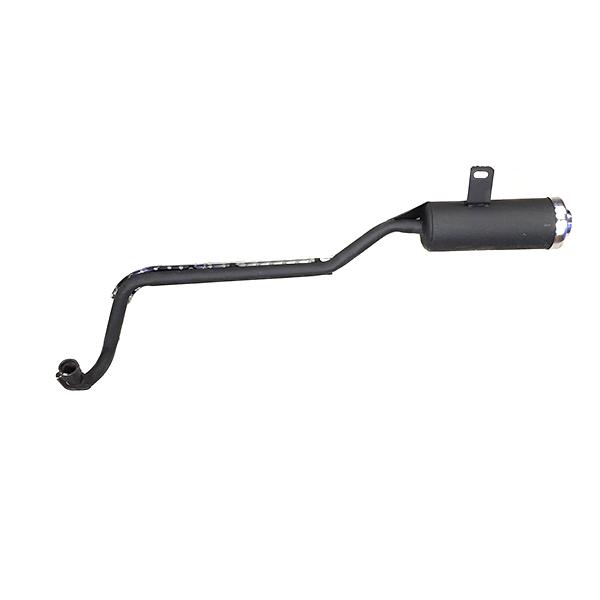

Brand new complete exhaust assembly for the Tao Tao ATA125F1 atvs. Please check specs and pictures to help match your exhaust.
- Muffler is about 25.3cm [9.94"] long and 88.6mm [3.5"] in diameter
- Assembly is approximately 91.4cm [36"] long measured straight across
- OD of pipe: 25mm [.98"]
- Pipe exits muffler at the center rear of muffler and continues straight for 2"
- Makes a slight turn and travels straight for another 4.5 inches
- Turns again and runs straight for 13.5" and then makes a 90° bend
- Straight for another 6" and then a "U" to the flange
- Bolt holes on flange are 46.7mm [1.8"] center-to-center apart
- There is a 1.5" * 2.75" bracket about 5.5" from the end of the muffler with elongated bolt hole for attachment
- Chrome end of muffler and spout with screen spark arrester
- Exhaust has two heat shields on pipe covering about 16"
Do you need your exhaust system fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
