Chinese ATV front & rear fender set
VX model - RED
*Body kits standard shipping only - We can only ship fenders to the 48 Contiguous States
NOTE: All body kits are non-returnable. Please be sure this is what you need before ordering.

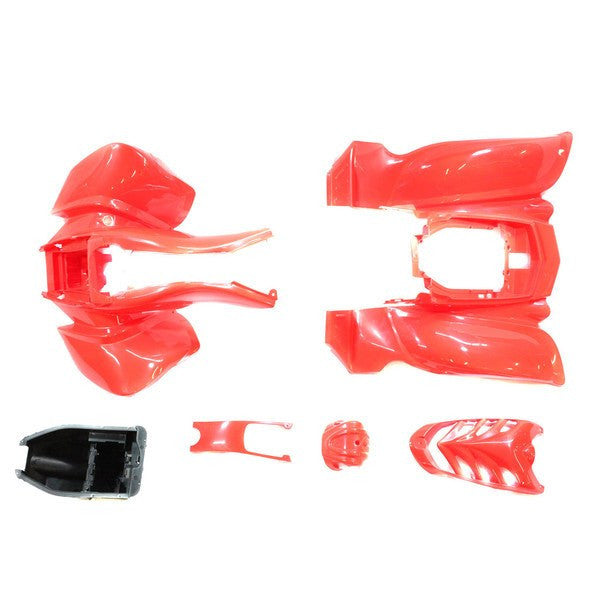

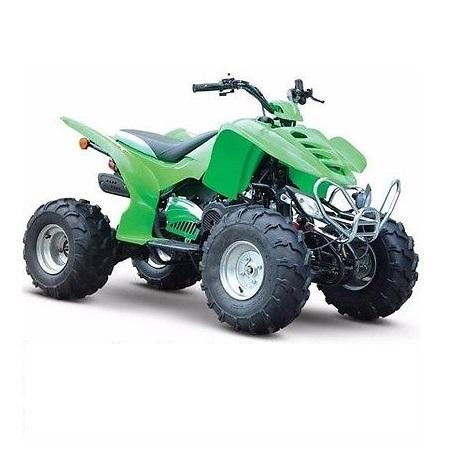

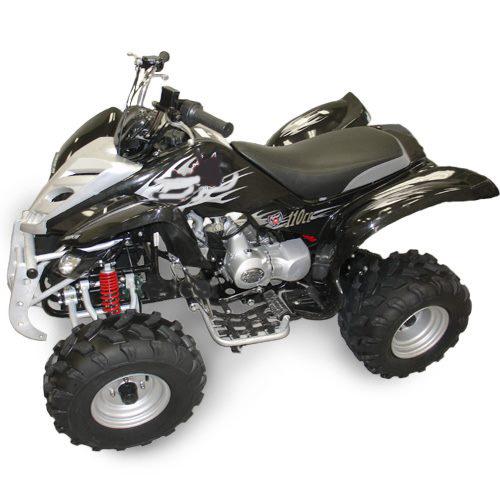

This is a complete fender set for the VX style/model of ATVs. 6 piece set. Please check the pictures and measurements close to insure a correct fit on your machine.

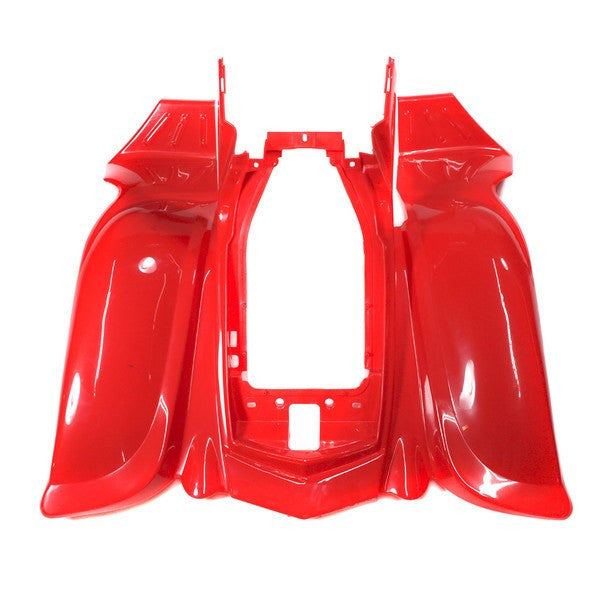

Rear fender details:
- Overall width: 82.55cm [32.5"] side to side at widest point
- Overall length: 78.75cm [28.5"] front to back at longest point
- Cutout area for battery box [see measurements for box below]
- Front mounting hole distance: 15cm [5.75"] - see picture
- Rear mounting hole distance: 17cm [6.75"] - see picture [furthest holes]
- Rear mounting hole distance: 8cm [3"] - see picture [closest holes]

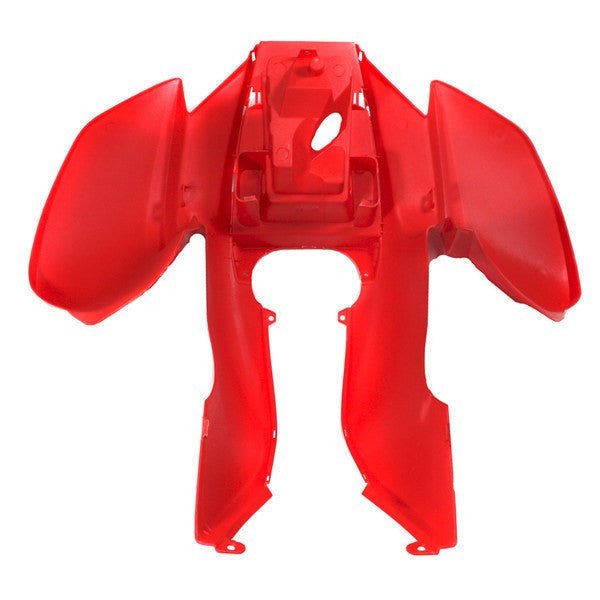

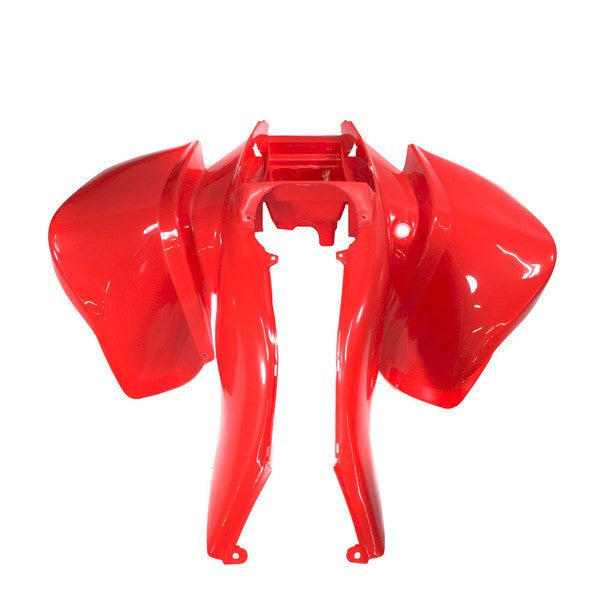

Front fender details:
- Overall width: 82cm [32"] side to side at widest point
- Overall length: 72.4cm [31"] front to back at longest point
- Front mounting hole distance: 10cm [3.8"] - see picture
- Rear mounting hole distance: 22cm [8.5"] - see picture [furthest holes]
- Fits rear fender

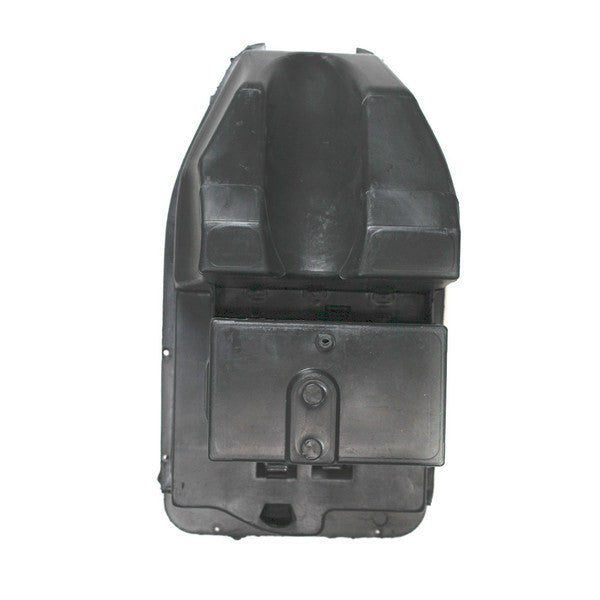

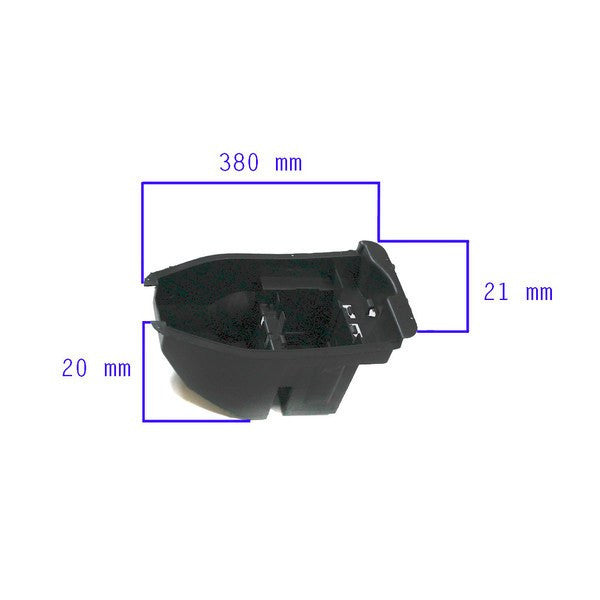

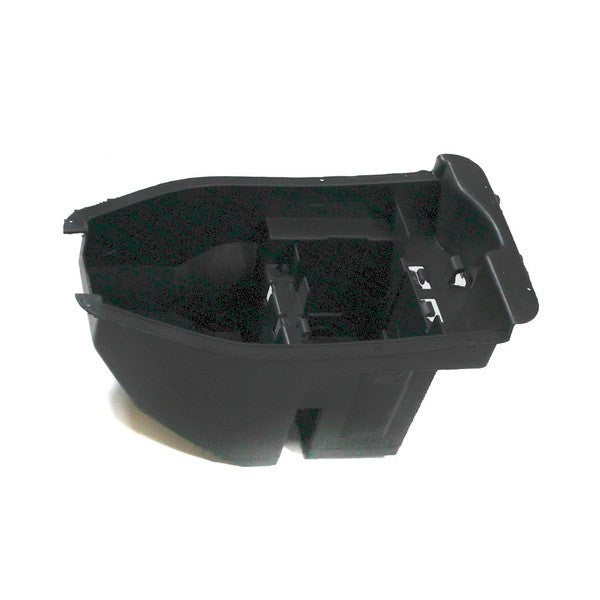

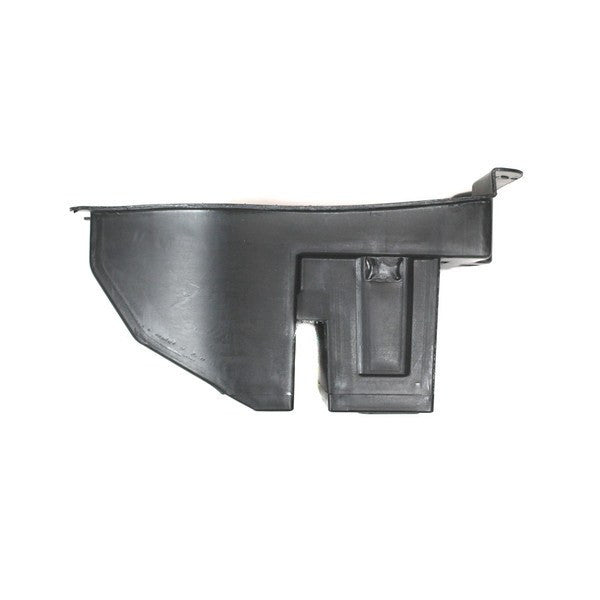

- Battery box overall measurements: 38cm x 21cm x 20cm [L x W x H]
- Battery box overall measurements [standard]: 15" x 8.27" x 7.87"

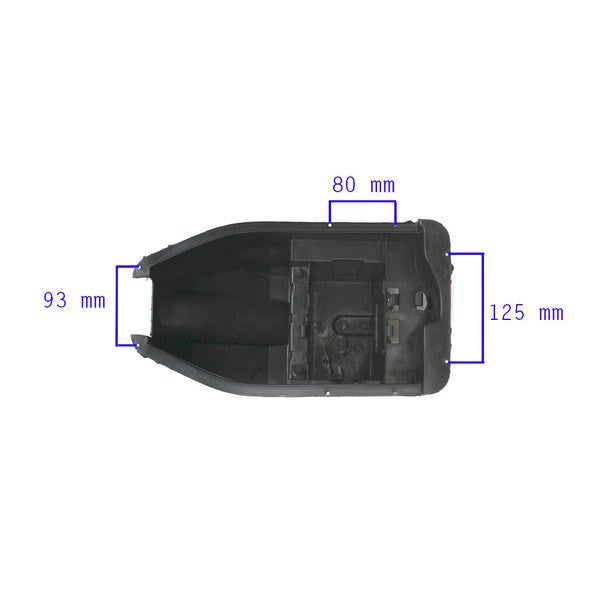

- Mounting holes on back of box: 12.5cm [4.92"] center to center
- Mounting holes on side of box: 8cm [3.15"] center to center
- Mounting holes on front of box: 9.3 [3.66"] center to center
- Battery compartment measurements: 14cm [5.51"] x 9cm [3.54"] x 11.5cm [4.33"]

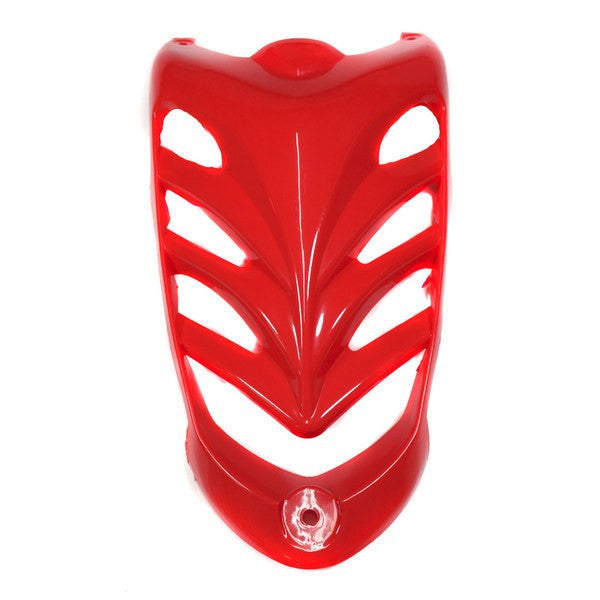

- Overall length: 43cm [17"]
- Overall width: 22.5cm [8.8"]
- Mounting hole distance: 17.7cm [7"]
- Center mounting hole on tip of nose

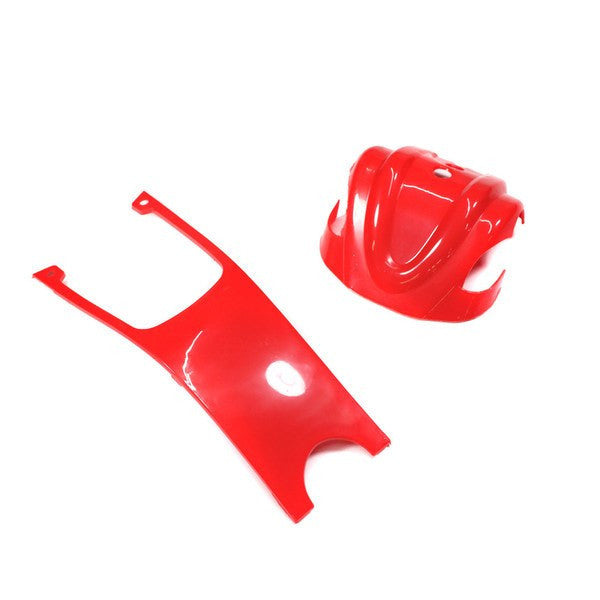

Tank cover details:
- Overall length: 32cm [12.5"]
- Overall width: 12.5cm [4.75"] at widest end
- Mounting hole distance: 10.5cm [4"]
Handlebar indicator cover details:
- Overall length: 15cm [5.75"]
- Overall width: 15.75cm [6.35"]
- 2 tabs for hooking to handlebar
- 3 holes for indicator panel
- Bracket mounting hole distance: 3.3cm [1.25"] x 6cm [2.35"]
All measurements are approx. since these are hard to measure due to size and flexibility of plastic. Please take this into consideration when measuring for your machine
These are an over-sized item and do require an extra day to box and get on the way to your door.
Known to fit Yamoto, Roketa, Redcat & many more!
You might also be interested in our ATV Body Fender and Footrest Bolt & Nut Kit.
- support brackets
- fitment issues
Great company to buy from you have my orders from here on
Fit my 2008 Vbike with only a slight modification.
Dropped right in place. Had to adjust the support brackets to align the mounting holes so as not to stress the plastic supports, great choice.
Very slight fitment issues but overall I was very happy with installation.
