Chinese ATV Body Fender Kit
2 piece - Pink Spider
*Body kits standard shipping only - We can only ship fenders to the 48 Contiguous States

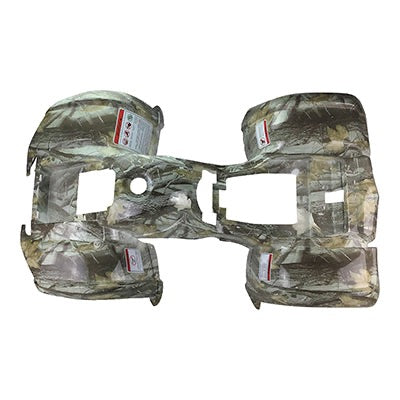

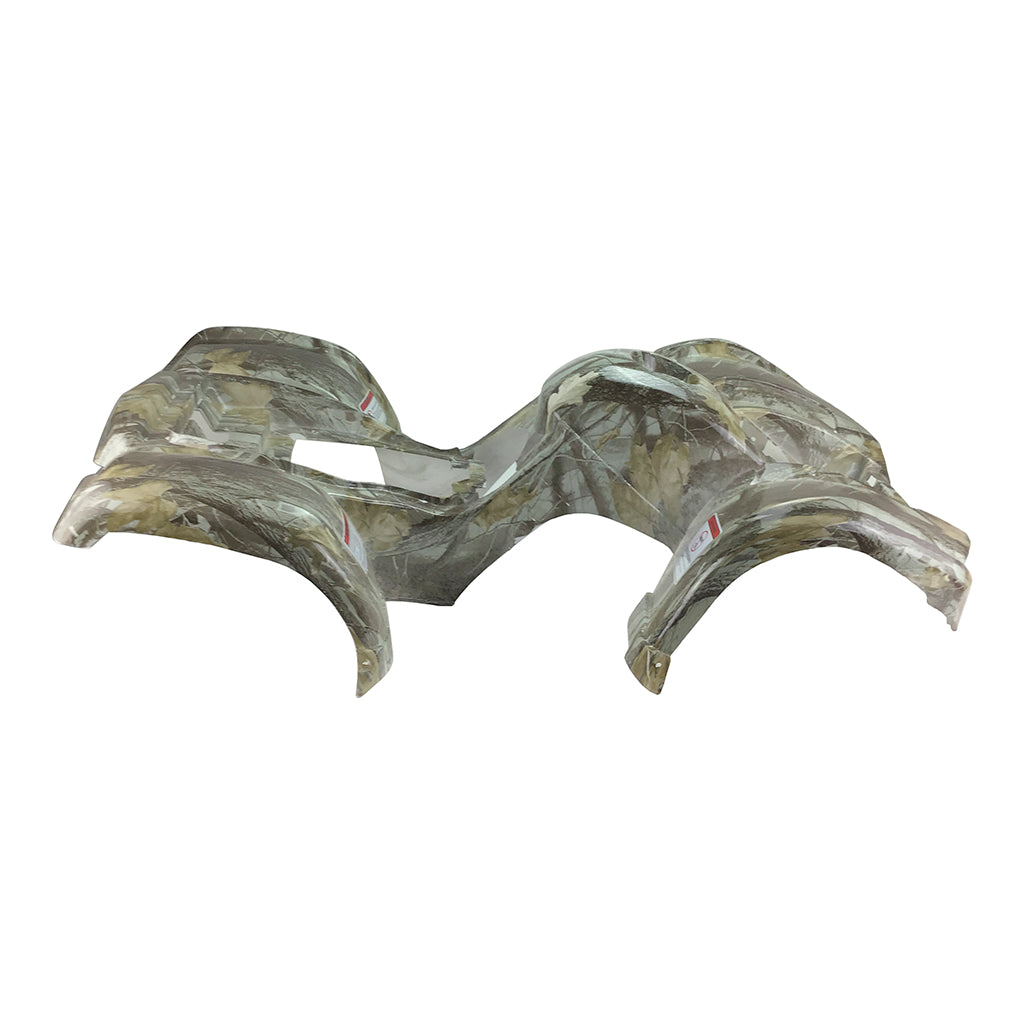

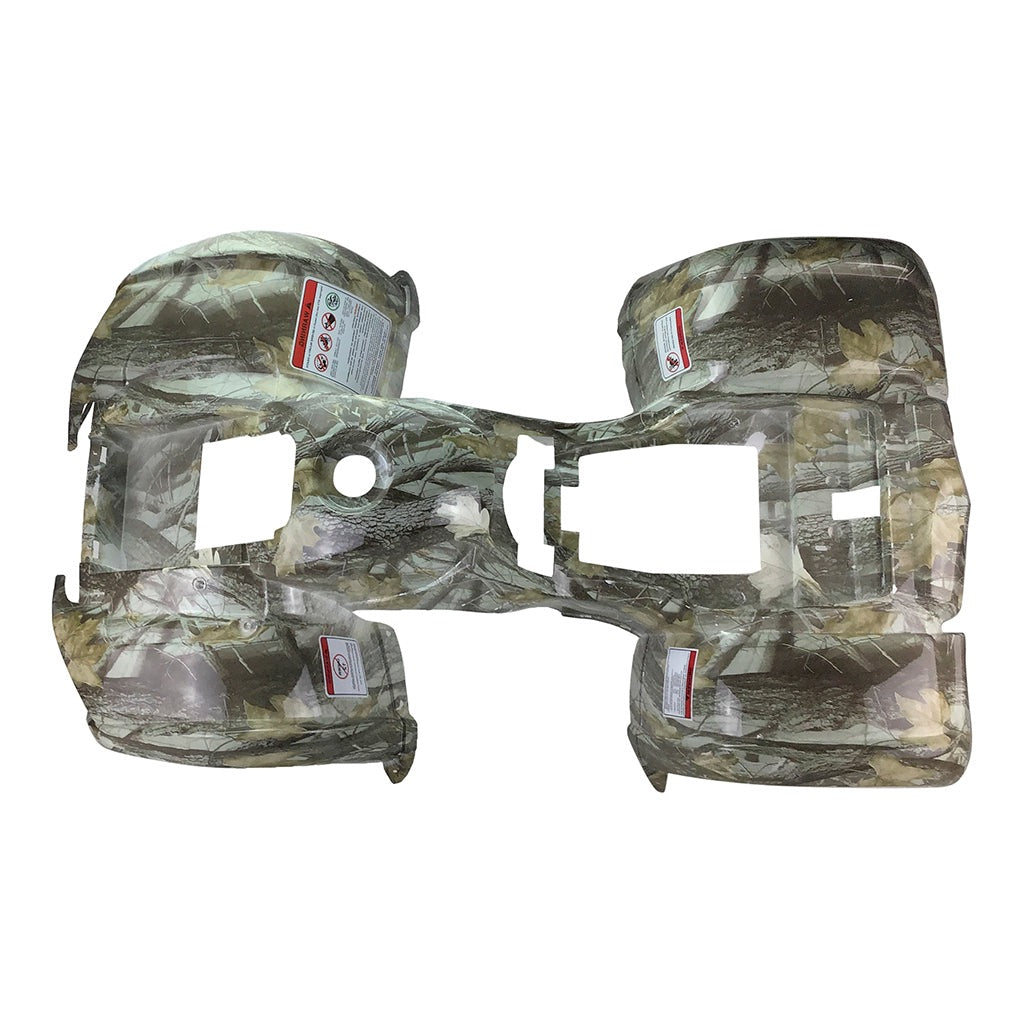

This is a complete body kit. This fender set fits several brands and models of kids ATVs. Please check the pictures and measurements close to insure a correct fit on your machine.
Fender set details:
- Rear fender width: 66cm [26"]
- Rear fender length: 49.5cm [19.5"]
- Battery box molded into rear fender
- Battery box measurements: 125mm x 84mm x 90mm [L x W x H]
- Battery box measurements [standard]: 4.92" x 3.31" x 3.54"
- Mounting bolt holes: 38mm [1.5"] center to center
- Tail light mounting holes: 85mm [3.35"] center to center [outside holes]
- 3 holes on front of rear fender to mount foot rests
- Front fender width: 61.6cm [24.25"]
- Front fender length: 67.3cm [26.5"]
- Sides are cut out for inserts - inserts NOT included
- 3 holes on the back of the front fender to mount foot rests
- Nose mounts with 6 screws and is already attached to front fender. Can be removed for easy install.
- Nose length: 42.55cm [16.75"]
- Nose width: 22.22cm [8.75"] at widest point
- Sold as a SET only
Known to fit TaoTao ATA110B, Coolsports, Mudcat, & many more! Please see pictures in listing for model these are known to fit.
