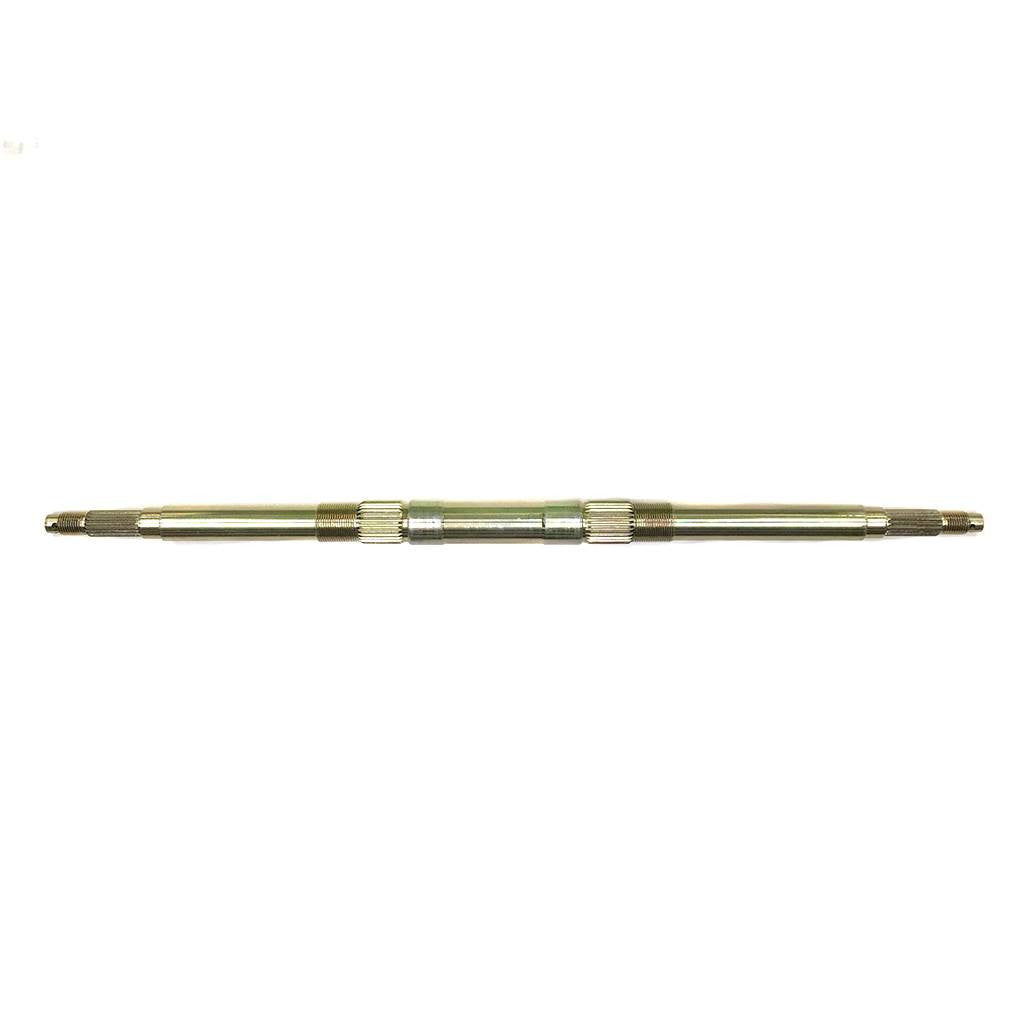

Tao Tao ATA-110-B/B1 Rear Axle with 6 Inch Wheels
These axles are model specific. DO NOT ORDER if your make and model are not listed. There is a 50% restock fee plus shipping for returned axles.
*Axles are standard shipping only - We can only ship axles to the 48 Contiguous States
This axle is known to fit the Tao Tao ATA110B/B1. Please use the measurements and pictures to help insure the correct fit.
Axle description:
- Overall length: 24 inch
- Length of threaded ends: 17mm [.672"]
- Length of spline ares: 36.35mm [1.425"]
- Distance from edge to center spline on one end: 10.25"
- Distance from edge to center spline on other end: 9.25"
- Diameter of bearing carrier section: 4.5"
- Spline count hub end: 17
- Spline count sprocket carrier section: 28
- Spline count on disc carrier section: 28
- Diameter of end for axle nut: 15.5mm [uses 16mm castle nut]
- Diameter of hub spline: 17.65mm [.695"]
- 101298
Known to fit Tao Tao ATA-110B/B1, BOULDER, 70 FA, 90 FA, 110 BY, 110 FA.
Shipping details:
Do you need your axle fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Free shipping on orders in USA over $100. Excludes Hawaii and Alaska. Buy now!
