Part number:
1100-GB110-20

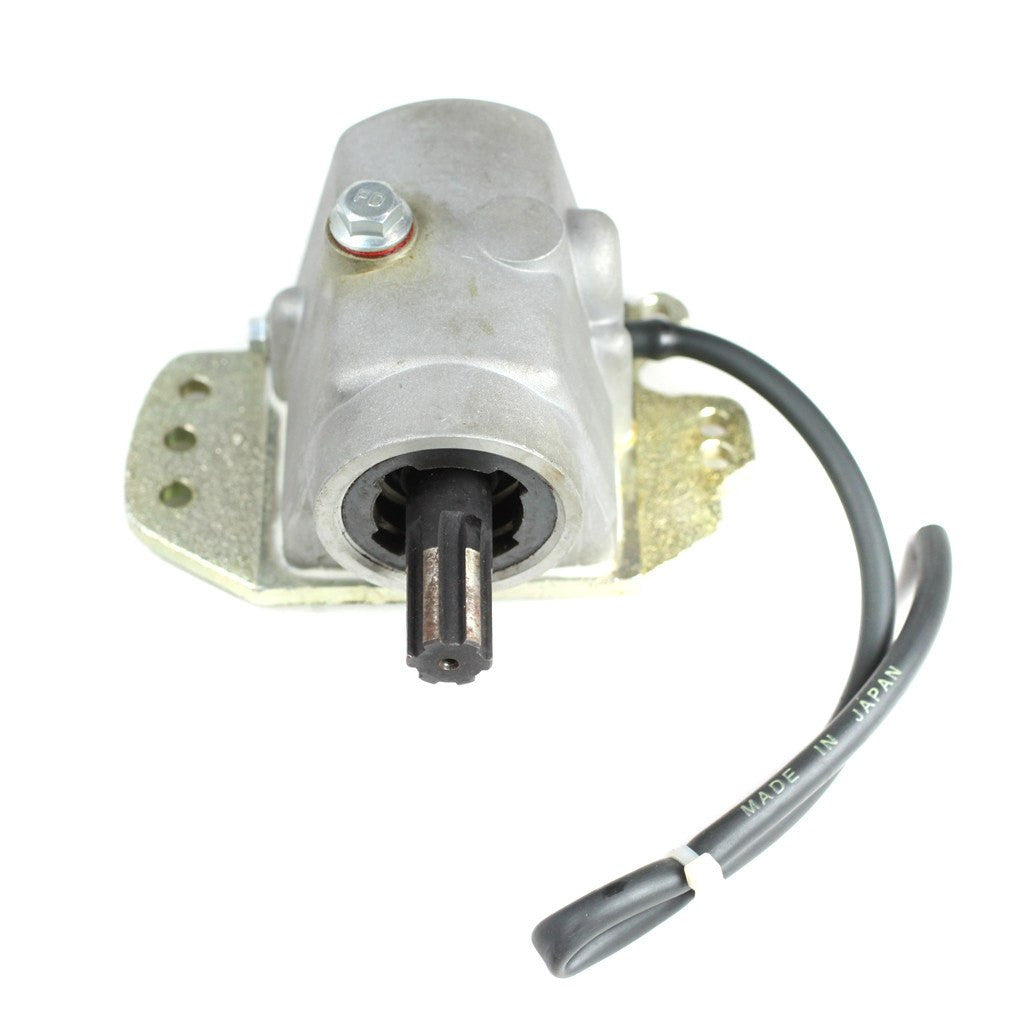

Chinese ATV Gearbox
Chinese E22 engine gearbox is compatible with Yamoto 50-110cc with an output shaft drive. May also fit some Yamaha shaft drive models. Will not fit the 200cc-250cc.
Gearbox details:
- Overall case length length including shaft: 13.4cm [5.27"]

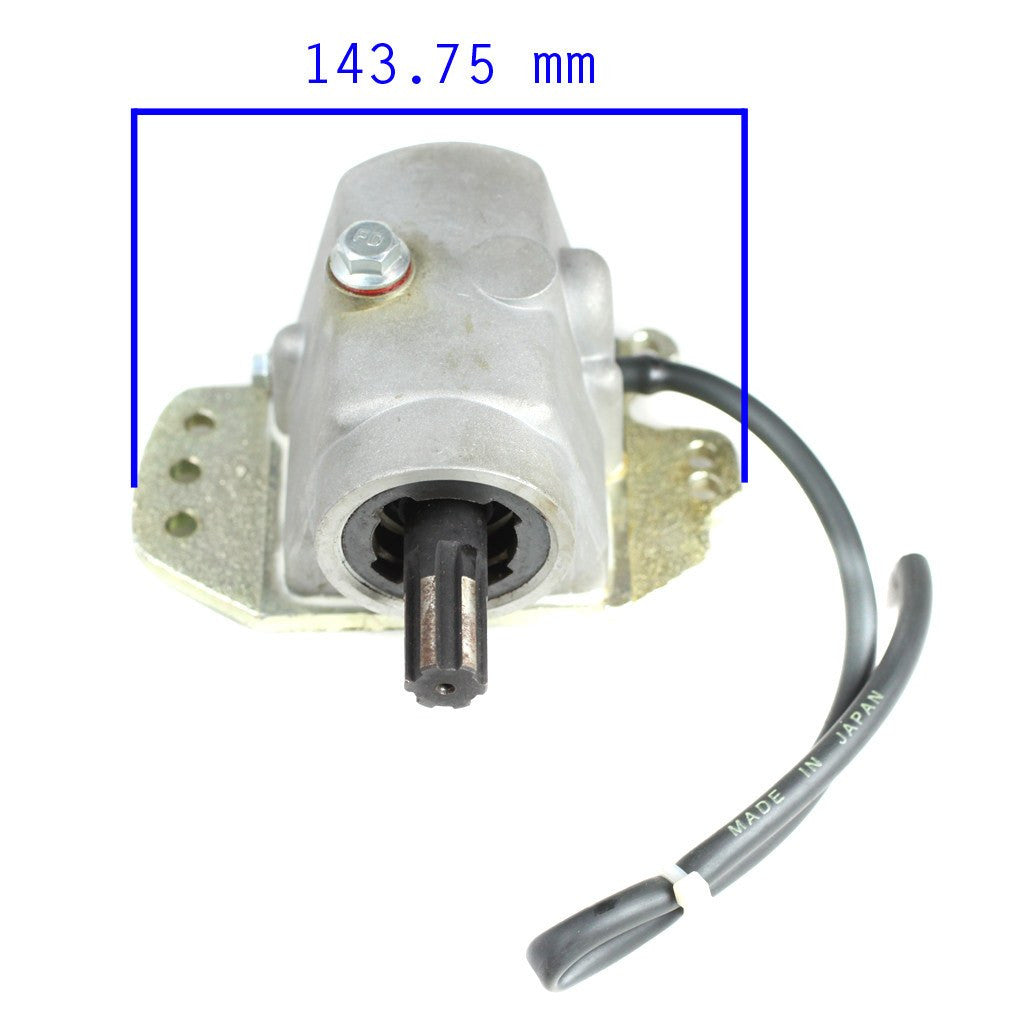

- Overall width at widest point: 14.37cm [5.65"]
- ID of shaft hole at widest point: 17mm [.67"]
- ID of shaft hole at narrowest point: 14mm [.55"]
- OD of shaft at widest point: 17mm [.67"]
- OD of shaft at narrowest point: 14mm [.55"]

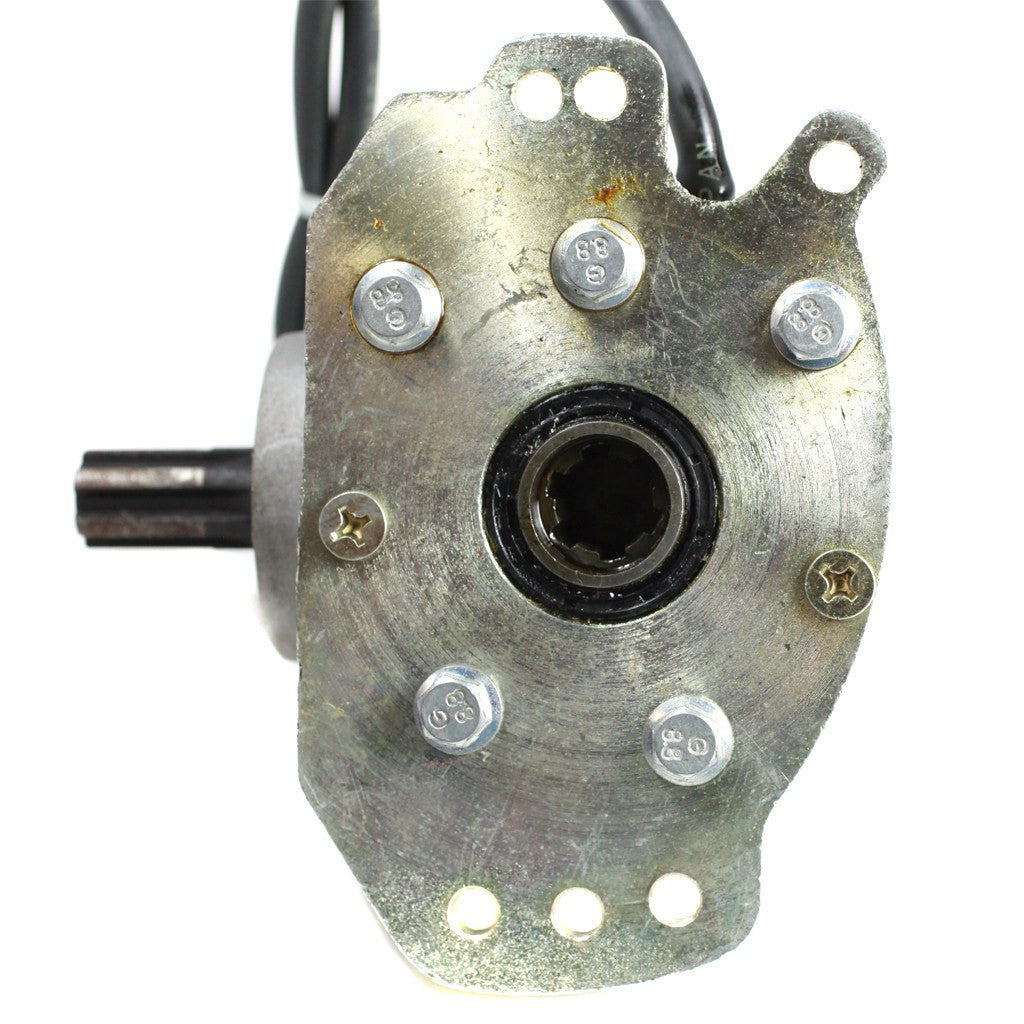

- 3 - 6mm mounting holes on each side
- With shaft facing away from you the distance between holes located on right are: 15mm [.58"] center-to-center
- With shaft facing away from you the distance between holes located on left are: front-to-center hole 10mm [.40"] --- back to center hole 37mm [1.45"]
- Hose length: 35mm [13.8"]
