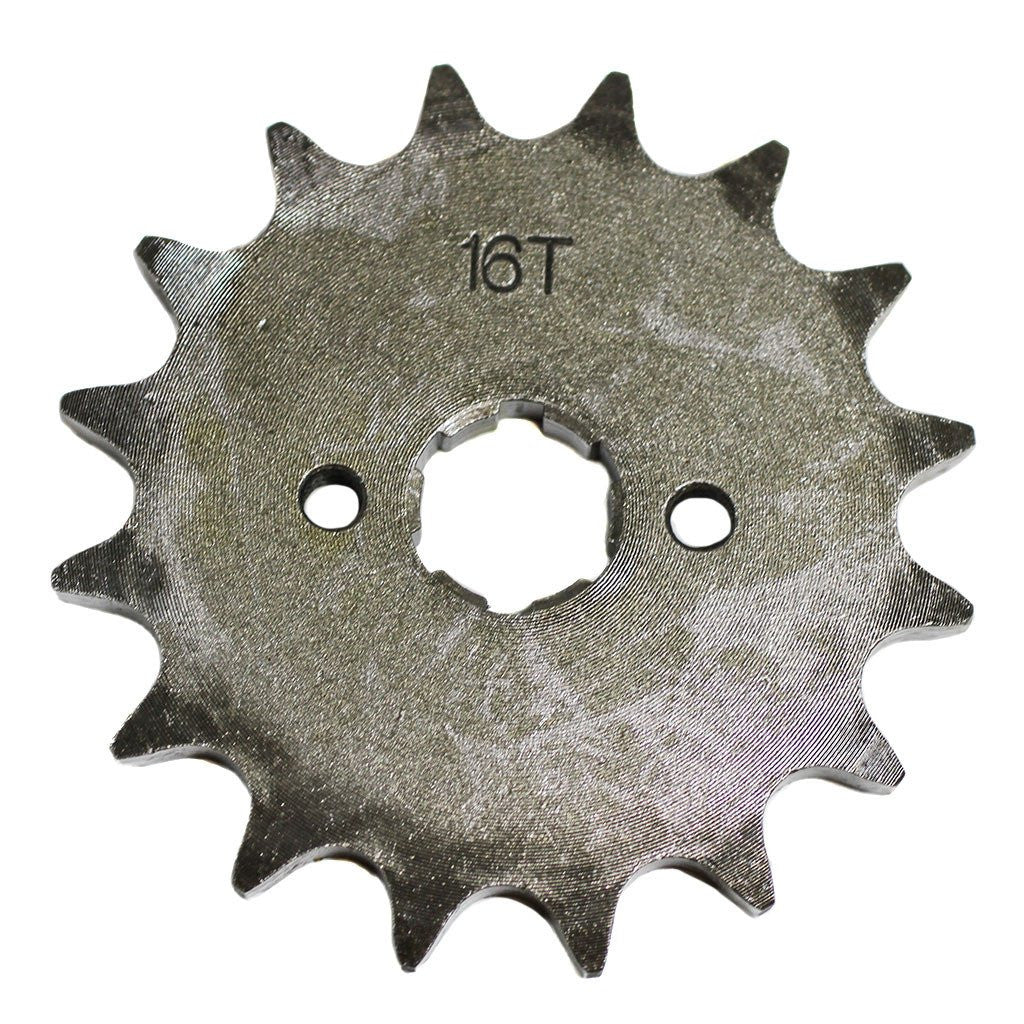

Chinese ATV Front Sprocket - 530-16T
This front sprocket is used on the Chinese 200cc-250cc engines. This sprocket has 16 teeth and is compatible with the 530 chain ONLY. Used with CG200 & CG250 engines.
Sprocket details:
- #530 chain used on ATVs & dirt bikes
- 16 Teeth
- OD: 86mm [3.38"]
- 6 Splines
- ID: 20.1mm [.79"] valley to valley
- ID: 17.6mm [.69"] tooth to tooth
- Mounting holes distance: 34mm center to center
- Uses retainer with bolts [not included]
Be sure to measure your chain or current sprocket before ordering. 530 chain has 5/8" pitch and .40" roller diameter. Most Chinese sprockets have the chain size and teeth count stamped into the metal.
